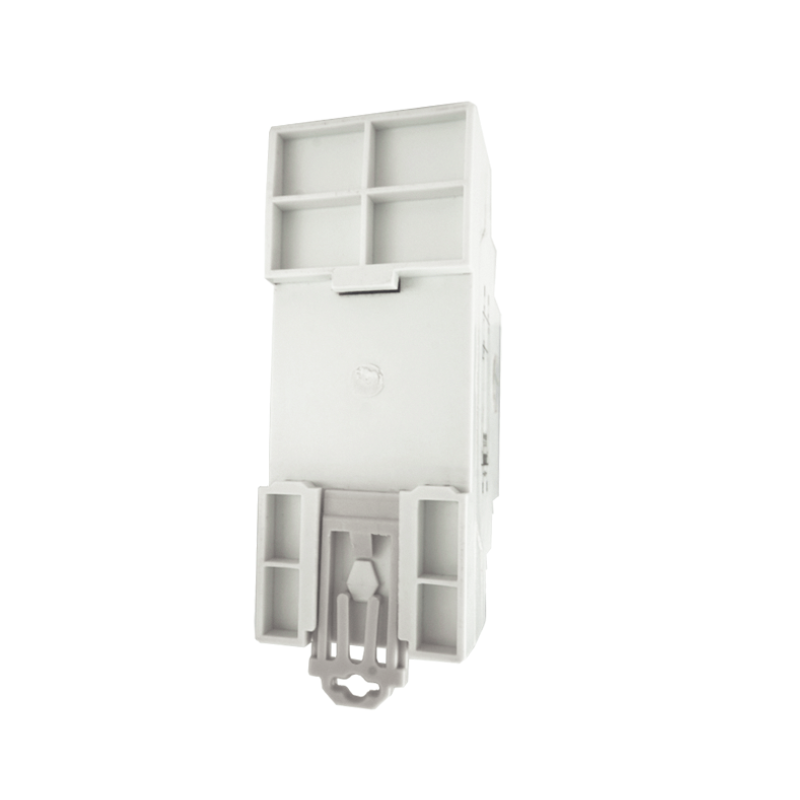

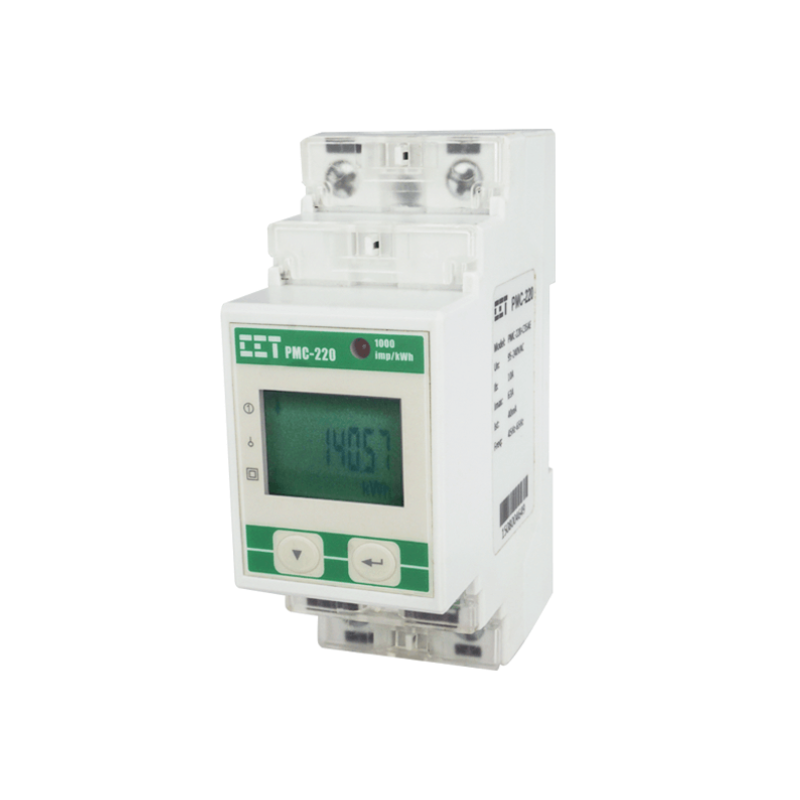

DIN Rail Single Phase Electronic Energy Meter
This single-phase electronic energy meter is designed for DIN rail mounting. It accurately measures electrical energy consumption and is suitable for residential and commercial applications.
Technical Specifications
Overview
Compact Energy Monitoring Solution
This DIN rail mounted single-phase electronic energy meter is engineered for high-accuracy measurements in low-voltage energy markets. Featuring a compact design and 63A direct connect input, it provides a comprehensive monitoring solution for voltage, current, power, and frequency. Designed for seamless integration into energy management systems, it supports standard RS-485 communication with Modbus RTU protocol.
Key Features
Measurement Capabilities
- Voltage, Current, kW, kvar, kVA
- Power Factor (PF) and Frequency
- kWh and kvarh (Imp/Exp/Tot/Net)
- kVAh
- Device Operating Time (Running Hour)
- Compliance & Certification
- IEC 62053-21: 2020 Class 0.5NMI M6-1 Class 1 Certified
Technical Specifications
Performance Metrics
63 A
Max Current
20 mA
Starting Current
1,000 imp/kWh
Pulse Output
Current Specifications
| Parameter | Value |
|---|---|
| Basic Current (Ib) | 5A |
| Max Current (Imax) | 63A |
| Starting Current (Ist) | 0.02A (0.4% Ib) |
| Minimum Current (Imin) | 0.25A (5% Ib) |
Physical & Environmental
IP Rating
IP51 (Front)IP30 (Body)
- Dimensions
- 36 x 65 x 90 mm
- Operating Temperature
- -25°C to +70°C
Connectivity
- Communication
- RS-485 with Modbus RTU
