Technical Specifications
Overview

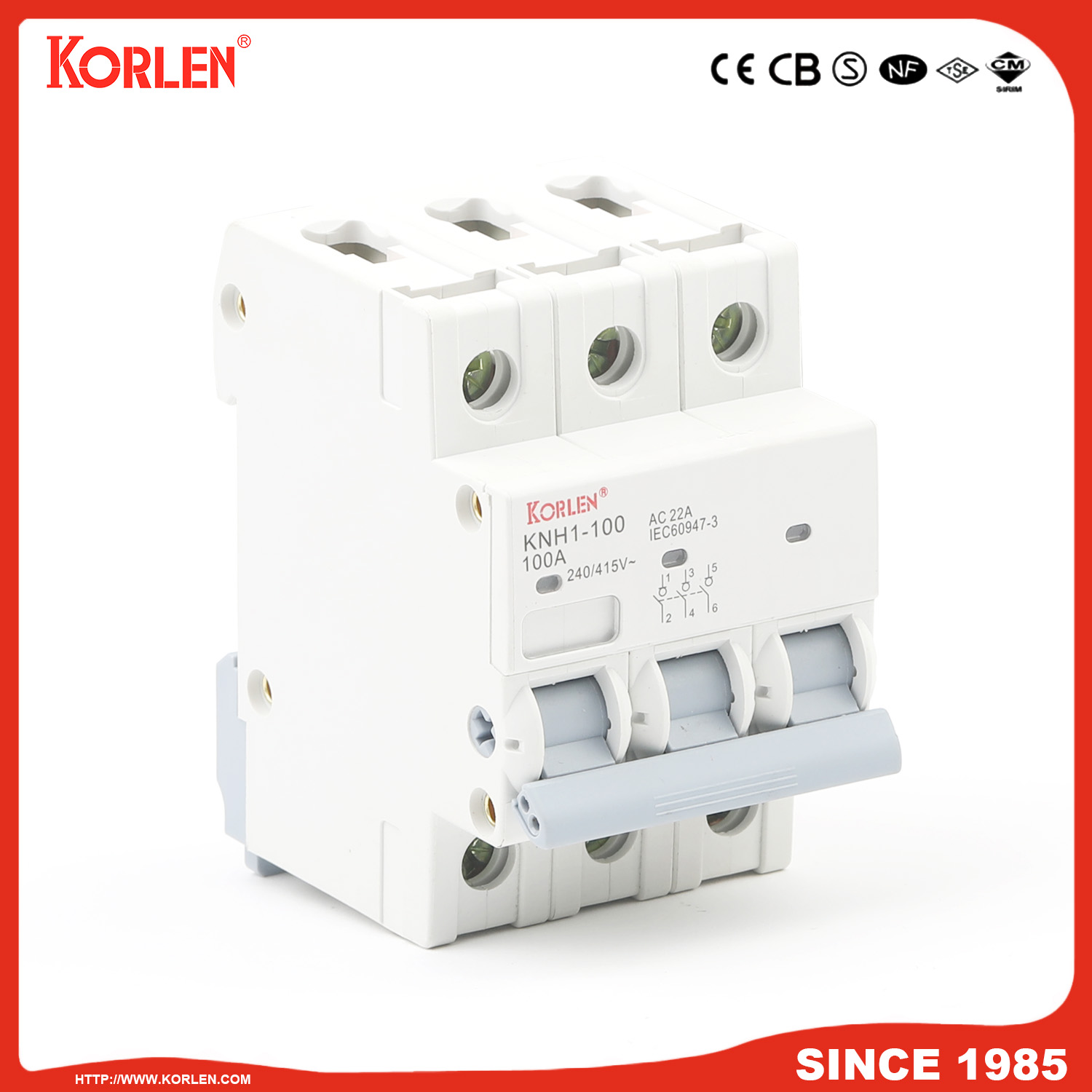

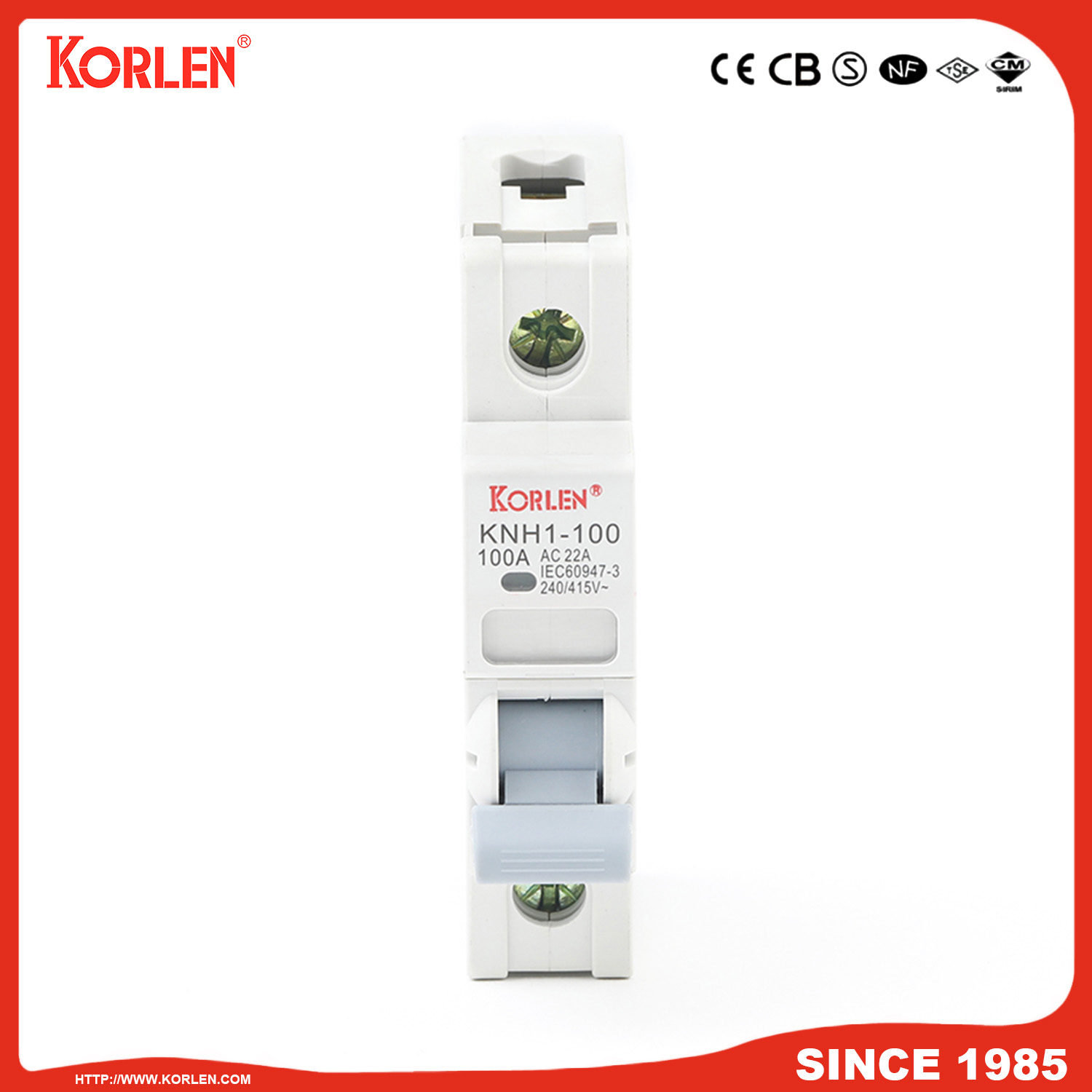

DIN Rail Mounting Isolator Switch
This DIN rail mounting isolator switch is designed for reliable circuit disconnection in industrial and commercial electrical systems. It features a robust design with a high breaking capacity, ensuring safety and performance during maintenance or emergency shutdowns. Compatible with standard cable and pin-type busbar connections, this versatile device supports a wide range of current ratings and pole configurations to suit diverse installation requirements.
Electrical Specifications
- Rated Voltage
- 240/415V
- Available Current Ratings
- 32A40A50A63A80A100A125A
- Pole Configurations
- 1P2P3P4P
- Rated Frequency
- 50/60Hz
- Insulation Voltage (Ui)
- 500 V
- Utilization Category
- AC-22A
Mechanical & Environmental
- Protection Degree
- IP20
- Mechanical Life
- 8500
- Electrical Life
- 1500
- Storage Temperature Range
- -25°C to +70°C
Installation
- Terminal Connection Type
- Cable / Pin-type busbar
- Terminal Size
- 50 mm²
- Tightening Torque
- 2.5 N*m
Certifications
International Certifications
CECBSEMKONFSIRIMSNIPCTTSE
