DIN Rail Isolator Switch
This DIN rail isolator switch is designed for installation in distribution boxes and electrical panels. It provides a safe and reliable method for disconnecting electrical circuits.
Technical Specifications
Overview

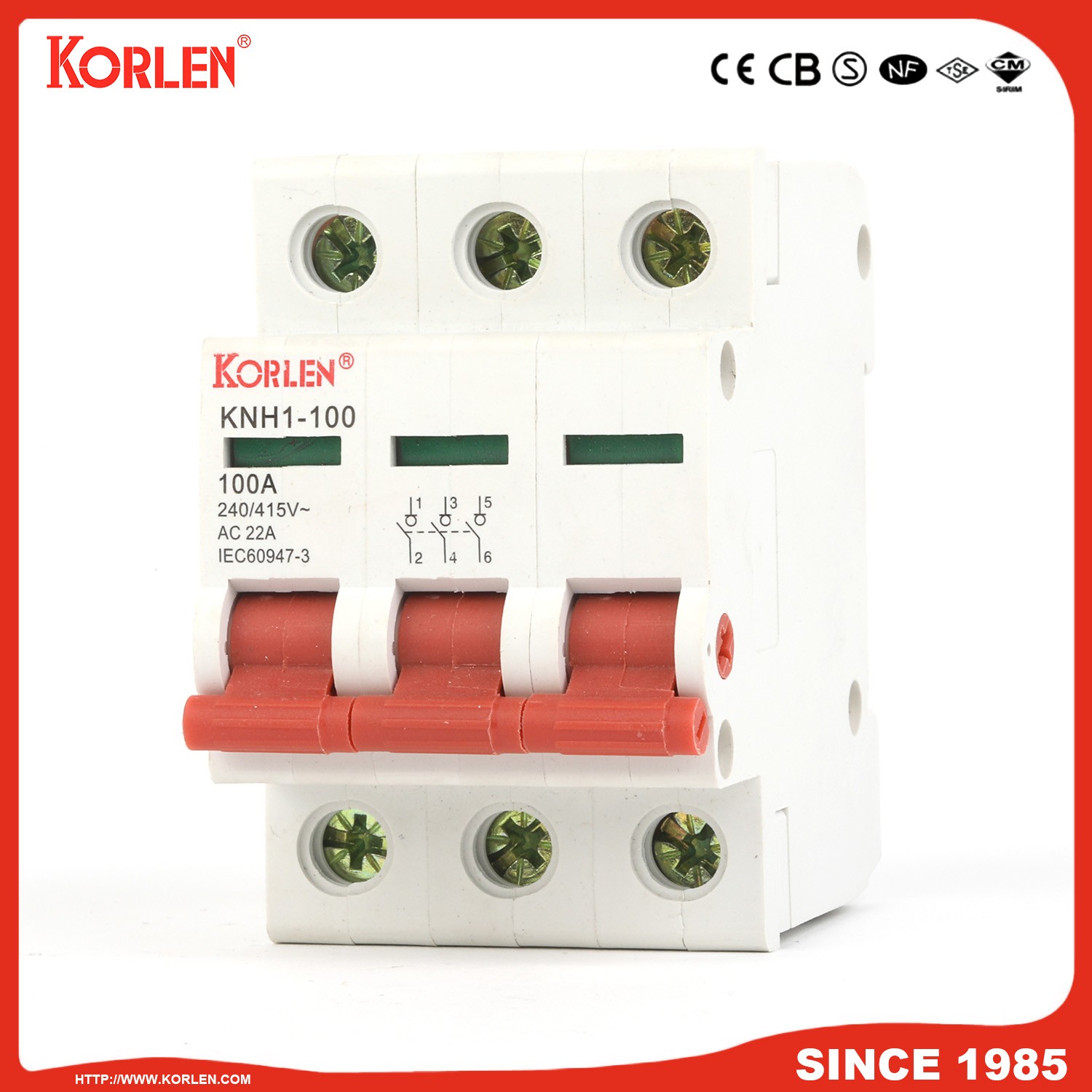

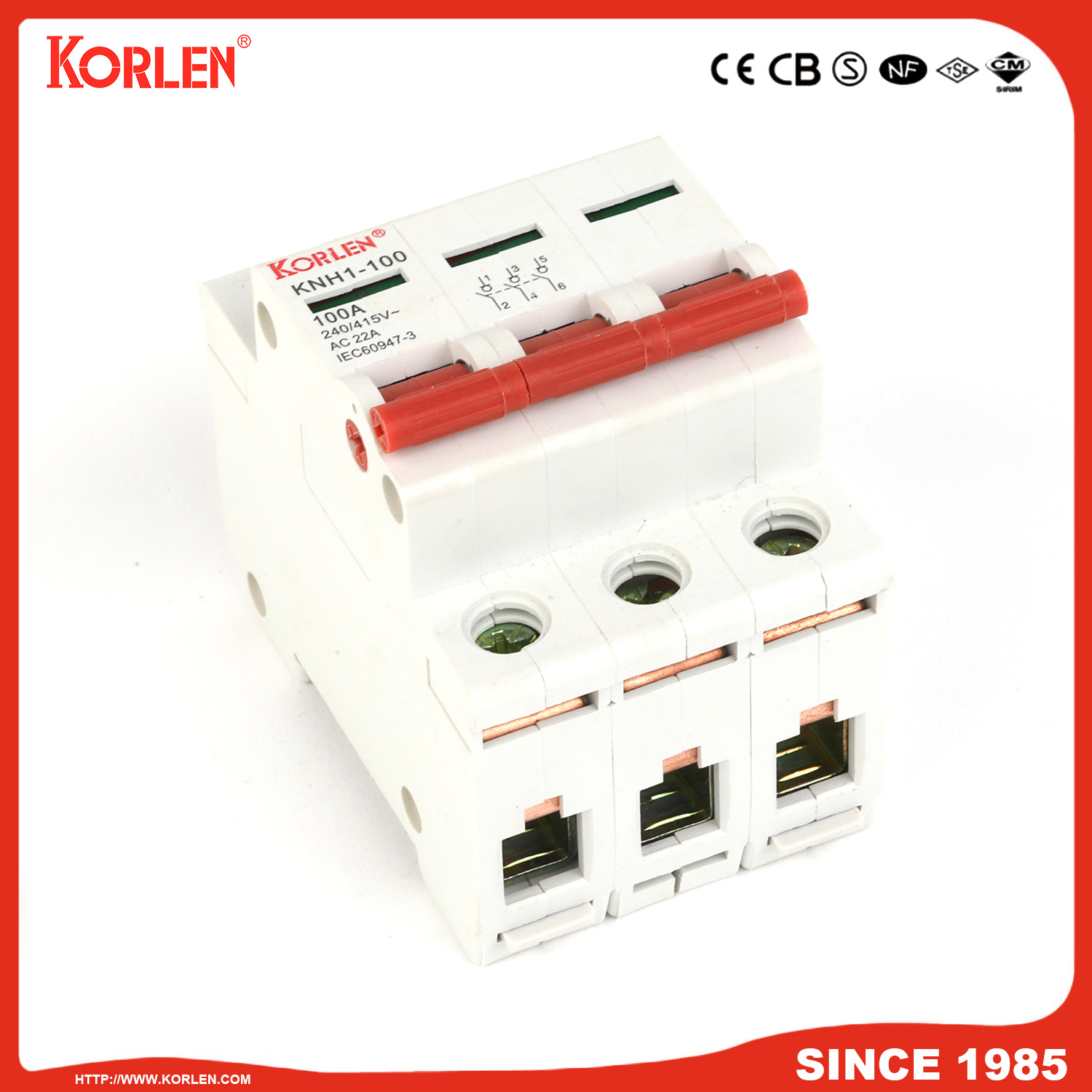

Professional DIN Rail Isolator Switch
This MCB-type isolator switch is designed for reliable circuit isolation in electrical distribution boxes. Engineered for versatility, it supports 1P to 4P configurations and is compatible with standard DIN rail mounting systems. With a robust construction and high electrical performance, it provides safe and efficient power management for industrial and commercial applications.
Electrical Ratings
Utilization Category
AC-22A
Key Electrical Metrics
4,000 V
Impulse Withstand Voltage
500 V
Insulation Voltage
2.5 kV
Dielectric Test Voltage
- Available Rated Currents
- 32A40A50A63A80A100A125A
- Rated Voltage
- 240/415V
Mechanical & Environmental
Service Life
| Type | Cycles |
|---|---|
| Electrical Life | 1,500 |
| Mechanical Life | 8,500 |
- Protection Degree
- IP20
- Storage Temperature Range
- -25°C to +70°C
Installation
Terminal Specifications
- Connection Type: Cable or Pin-type busbar
- Terminal Capacity: 50mm²
- Tightening Torque: 2.5 N*m
- Connection Direction: Top and bottom

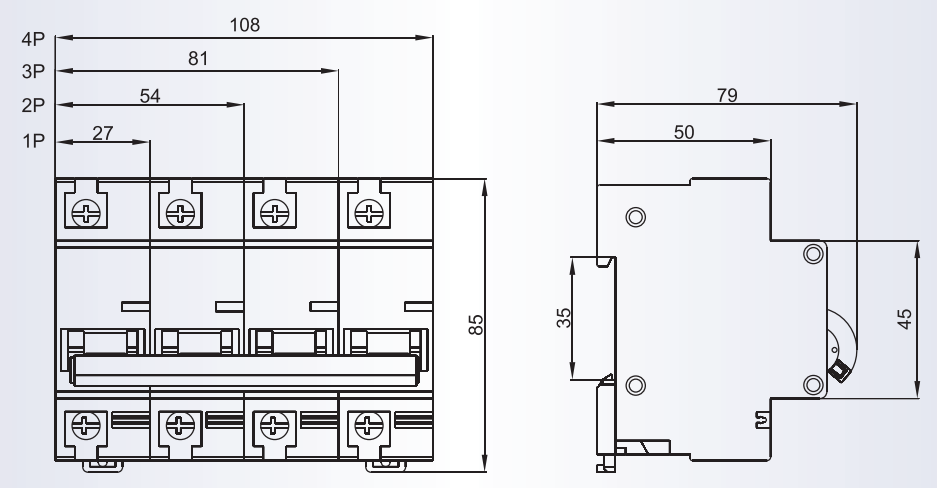

Dimensional Overview (mm)
| Configuration | Width |
|---|---|
| 1P | 27 |
| 2P | 54 |
| 3P | 81 |
| 4P | 108 |
