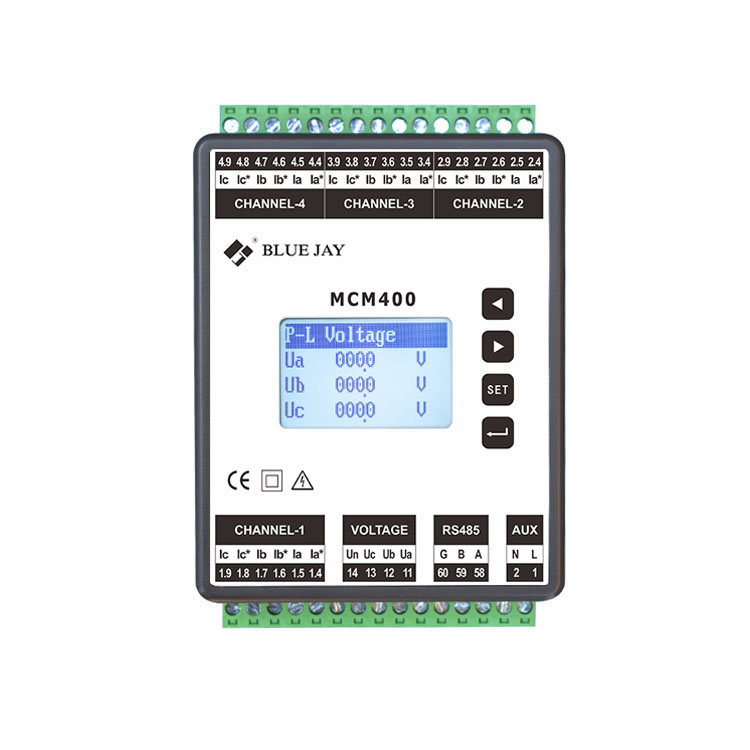

DIN Rail AC Multi-Channel Power Meter
This DIN rail power meter accurately measures electrical energy in three-phase AC systems. Equipped with RS485 communication, it monitors voltage and current across multiple channels.
Technical Specifications
Overview
Multi-Channel Power Metering Solution
The MCM series multi-channel power meter is specifically engineered for monitoring feeder loops, providing comprehensive electrical parameter measurement for three-phase or single-phase branch circuits. This compact device performs real-time metering, energy consumption tracking, and power quality analysis, making it ideal for residential and commercial sub-metering applications. With robust communication options and flexible input ports, it enables reliable monitoring of building electrical loads with low installation costs.
Key Features
- Key Capabilities
- 4-Channel 3-Phase Metering12-Channel 1-Phase MeteringClass 0.5 AccuracyRS-485 Modbus/RTUReal-time Power Quality AnalysisHarmonic Measurement
Measurement Specifications
Voltage Measurement
400 VAC
Max Voltage L-L
250 VAC
Max Voltage L-N
65 Hz
Max Frequency
Current Input Options
100mA333mV
- Measurement Range
- 0 - 9999A
Technical Details
Communication
- RS485 (2/3 wires half duplex)
- Modbus RTU
- Optional Ethernet
Operating Environment
| Parameter | Operating | Storage |
|---|---|---|
| Temperature | -15℃ to 55℃ | -30℃ to 70℃ |
| Humidity | 20% to 95% (No condensation) | 20% to 95% (No condensation) |
- Auxiliary Power Supply
- 85-265 VAC/DC (±10%)
