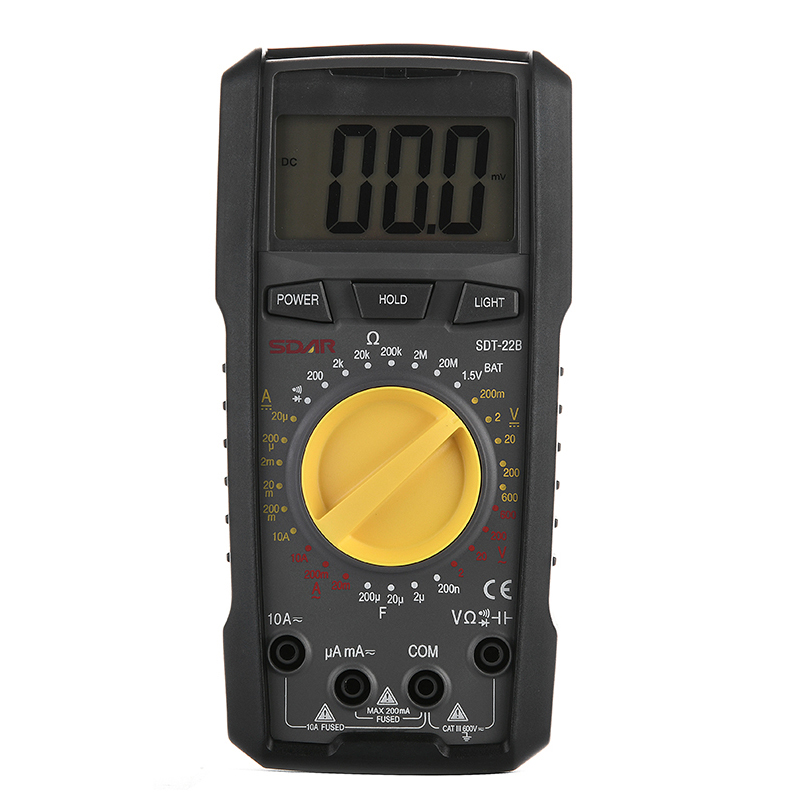

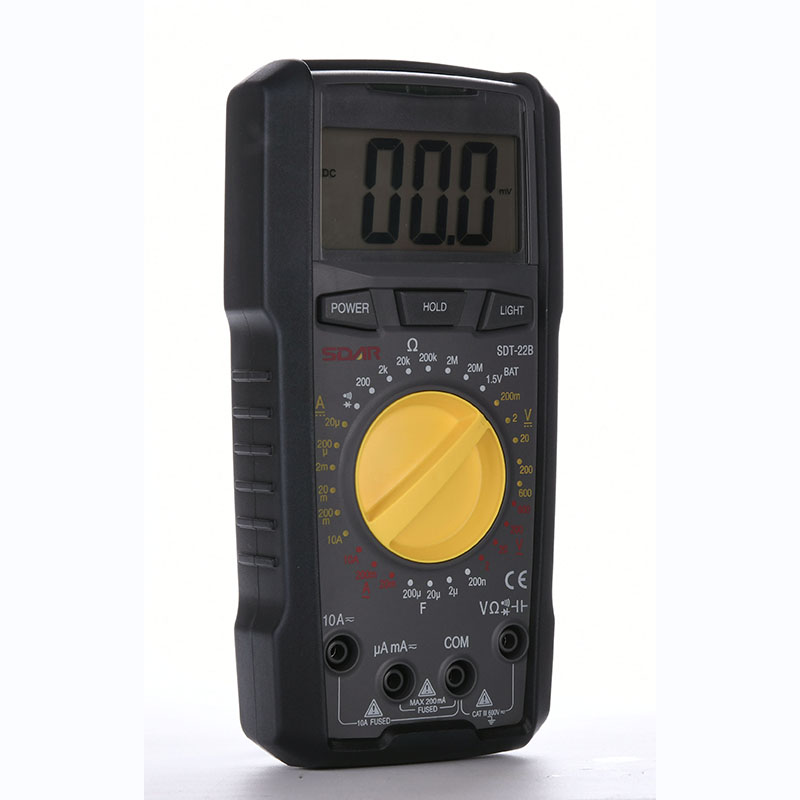

Digital Multimeter for Electrical Testing
This digital multimeter measures voltage, current, resistance, capacitance, and frequency. It features a clear LCD display, multiple measurement ranges, and overload protection.
Technical Specifications
Overview
Professional Electrical Multimeter
This professional digital multimeter is an essential tool for accurate electrical testing, offering a comprehensive suite of measurement capabilities. It supports a wide range of AC/DC voltage and current ranges, as well as resistance, capacitance, and essential continuity testing. Designed for safety and usability, the device includes a high-contrast display with backlight, data hold functionality, and robust overload protection to ensure reliable results in various testing environments.
Key Features
- Integrated Features
- Data HoldLCD BacklightBattery CheckDiode CheckContinuity TestLow Battery IndicatorOverload Indicator
Technical Specifications
Measurement Specifications
| Function | Range Details |
|---|---|
| DC Voltage | 200mV / 2V / 20V / 200V / 600V |
| AC Voltage | 2V / 20V / 200V / 600V |
| DC Current | 10A |
| AC Current | 20mA / 200mA / 10A |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ |
| Capacitance | 200nF / 2µF / 20µF / 200µF |
Performance Metrics
2,000
Display Count
1.5 V
Battery Check
Compliance & Safety
Certifications
CECAT III 600V
