Technical Specifications
Product Overview
Advanced Digital Energy Metering
This digital energy meter utilizes advanced microelectronic technology and SMT manufacturing to provide high-precision active energy measurement. Designed for efficiency and reliability, the unit features a compact DIN rail mount, low power consumption, and a clear LCD display. It is fully compliant with international standards, making it an ideal choice for smart city infrastructure, commercial energy management, and modern electrical network reform.

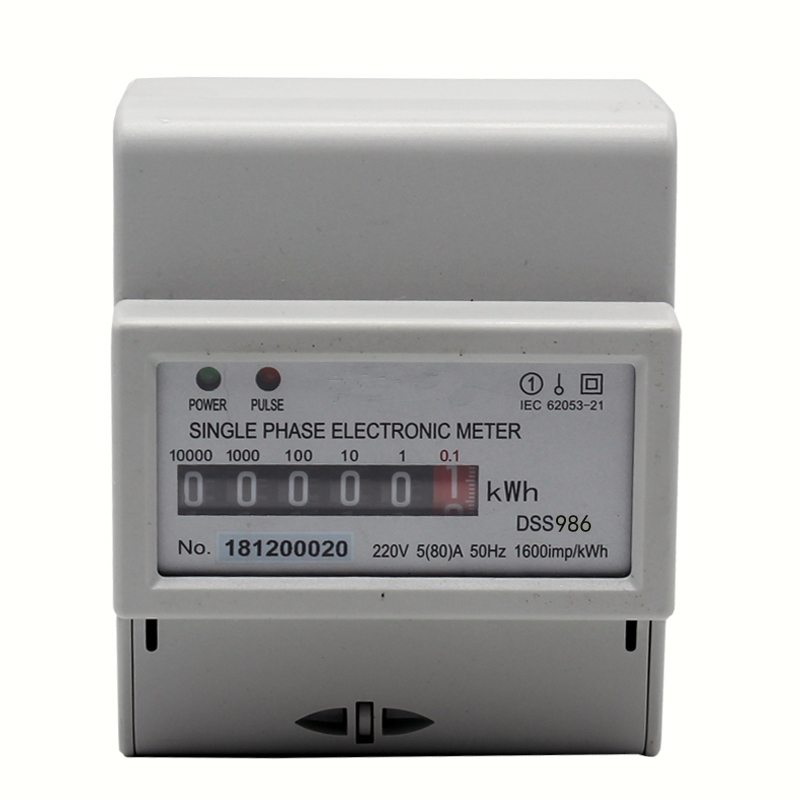

Single-Phase Metering
- Rated Voltage
- 220 V
- Current Rating
- 5(80)A
- Pulse Output
- 1600 imp/kWh

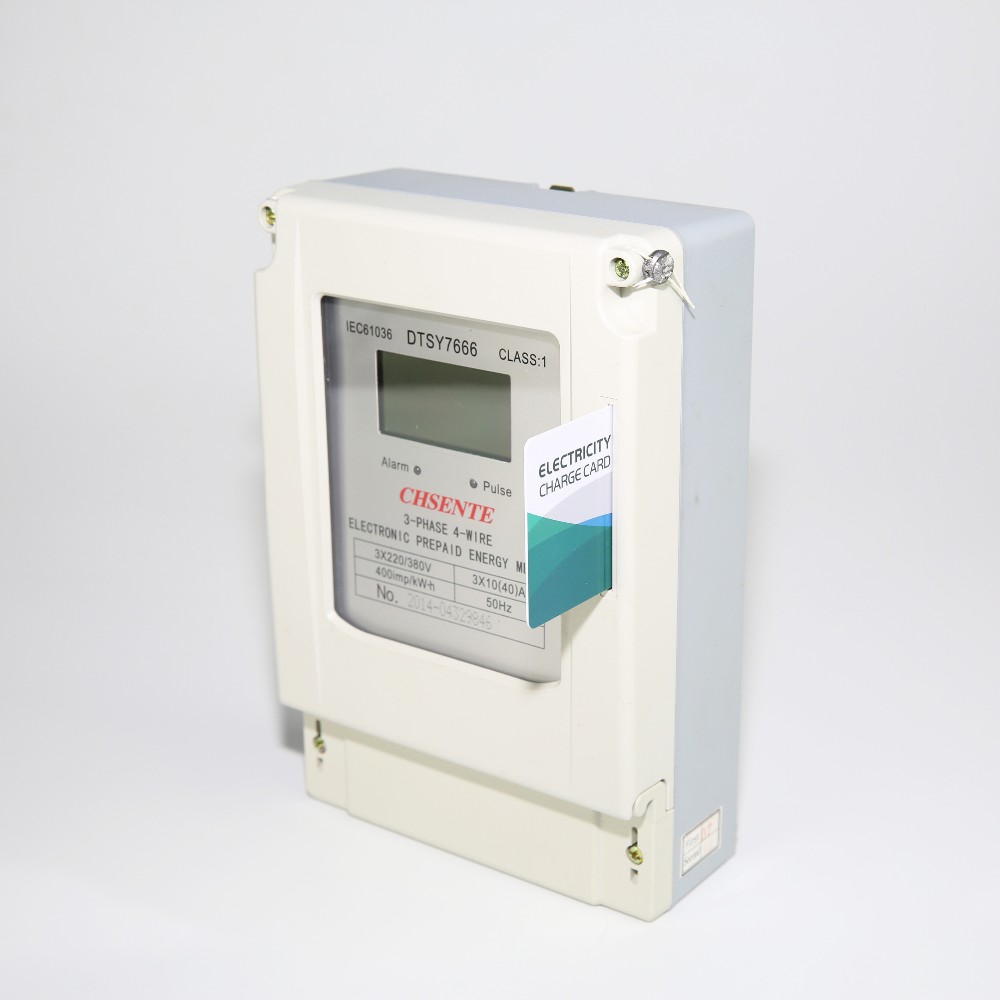

Three-Phase Metering
- Rated Voltage
- 3x220/380
- Current Rating
- 3x10(40)A
- Pulse Output
- 400 imp/kWh
Smart & IoT Features
Key Capabilities
- LoRaWAN wireless transmission
- IC card pre-paid functionality
- Power metering and load control
- Customer information management
- Human damage alarm
- Low voltage alarm
- Controller
- ARM Cortex-M3 32-bit RISC
Compliance & Standards
Operating Frequency
50 Hz
Standard
60 Hz
Optional
- Certifications
- IEC 62053-21IEC 61036 Class 1GB/T 17215.321-2008GB/T 18460-2001
