Digital Anemometer Wind Speed Meter
This digital anemometer is designed for accurate measurement of wind speed and environmental conditions. It features a USB interface for data transfer and analysis.
Technical Specifications
Product Overview
Professional Digital Anemometer
The HP-866A is a high-precision digital wind speed meter designed for comprehensive environmental monitoring. It features an 8-blade fan wheel and dual wind chill sensors to provide accurate readings of wind velocity, temperature, and humidity. With integrated USB connectivity, professionals can perform real-time data logging and analysis directly on a computer, making it ideal for drone piloting, sailing, and industrial HVAC applications.
Measurement Performance
Performance Metrics
0.3 m/s
Min Wind Speed
40 m/s
Max Wind Speed
999,900 m3/min
Max Wind Flow
- Accuracy & Resolution
- +-0.1dgts(m/s)
Environmental Range
- Temperature Range
- -10°C to 60°C
- Dew Point Measurement
- Yes

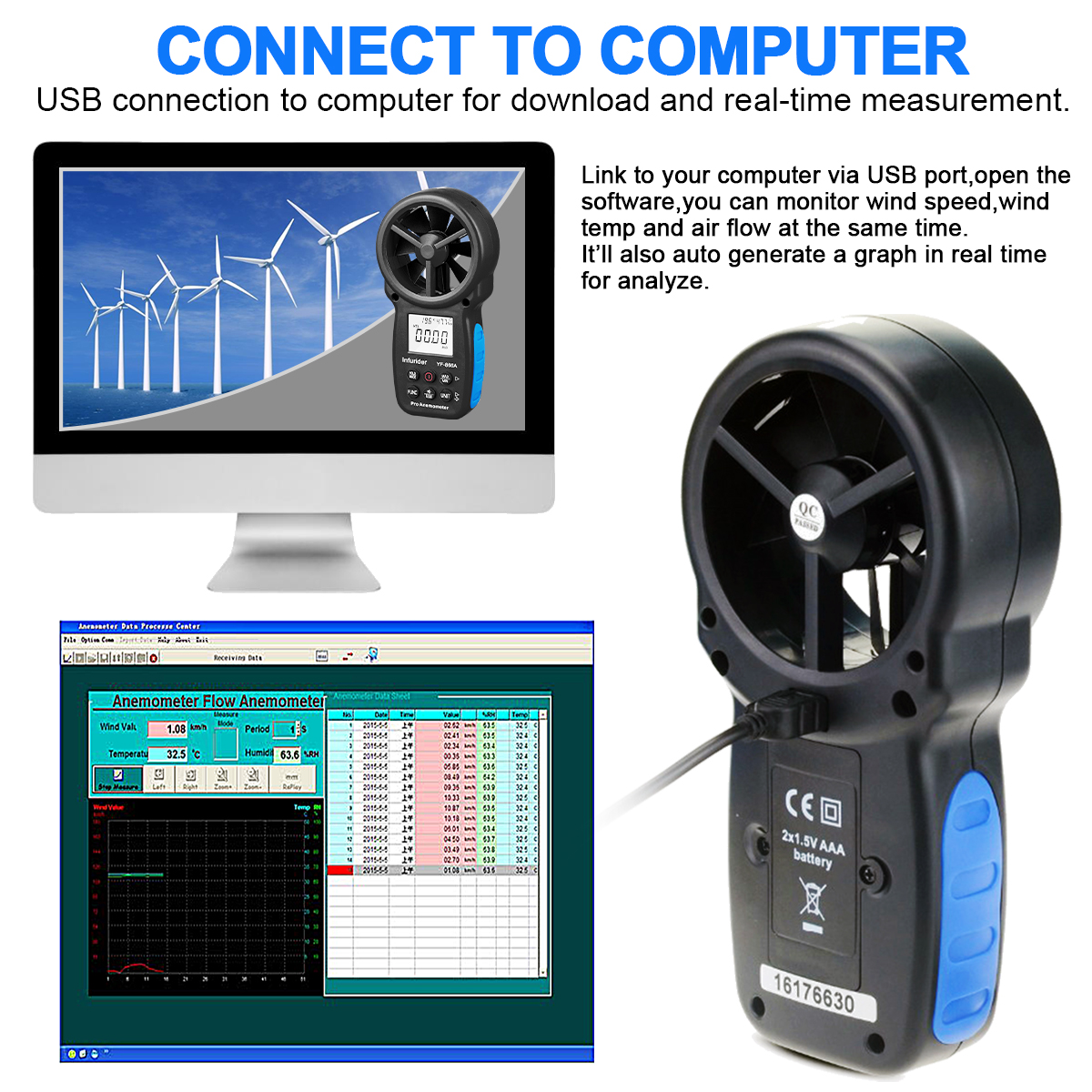

Connectivity & Data
Data Capabilities
- USB PC Connection
- Real-time Measurement
- Data Hold Function
- Auto Graph Generation via Software
- Max/Min Value Recording
Hardware & Design
Physical Dimensions
| Dimension | Value (mm) | Value (in) |
|---|---|---|
| Height | 165mm | 6.5in |
| Width | 85mm | 3.4in |
| Thickness | 38mm | 1.5in |
- Display & Interface

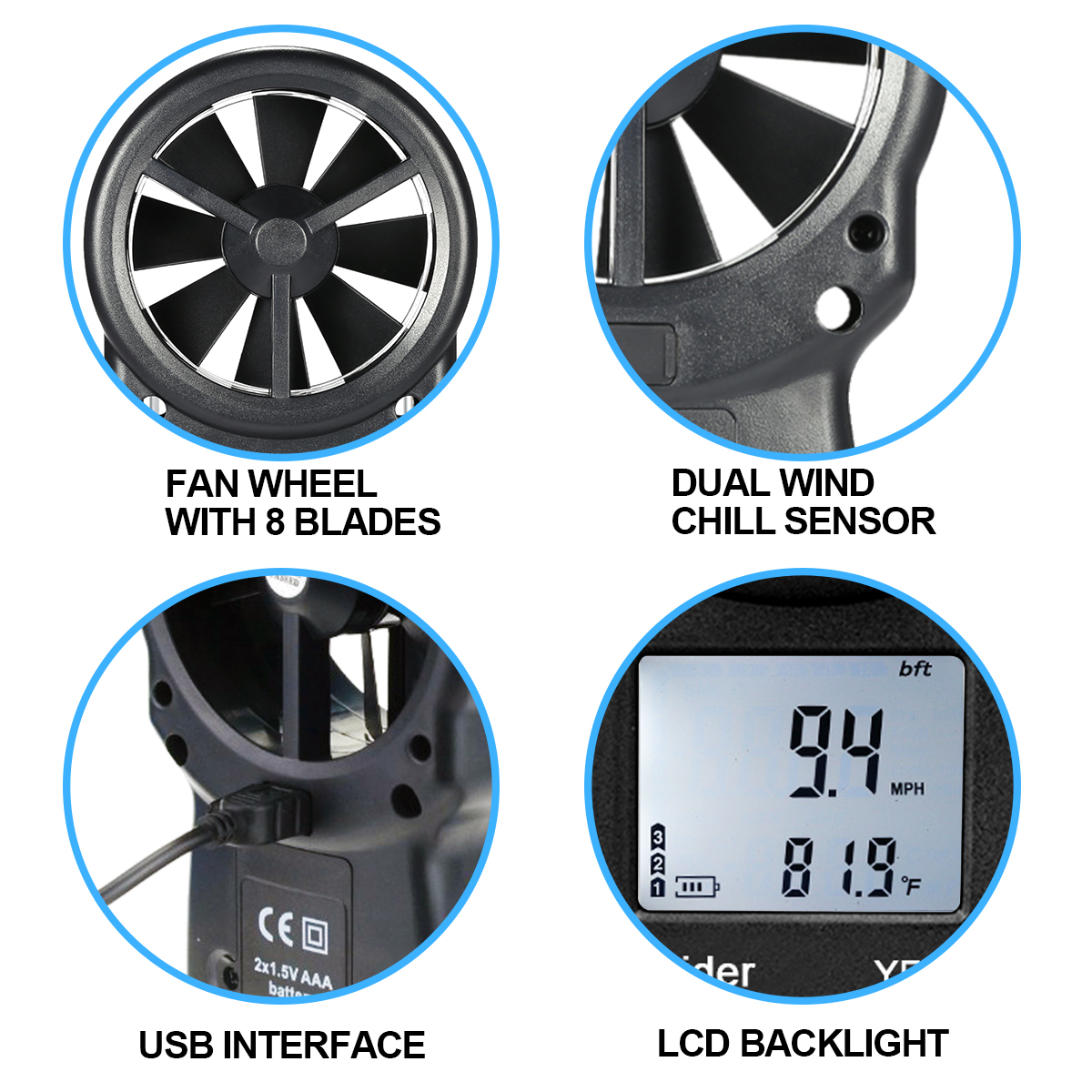

- LCD Backlight8-Blade Fan WheelDual Wind Chill SensorLow Battery Indicator
Power & Compliance
Certifications
CEQC Passed
- Power Supply
- 2 x 1.5V AAA Batteries
Applications
- Recommended Applications
- Drone PilotingSailingSurfingKite FlyingHVAC Testing
