Digital Anemometer for Air Velocity and Volume Measurement

This digital anemometer measures air velocity and air volume. It features a digital display and multiple functions including temperature measurement, data hold, and unit selection.

Request a Quote Download PDFPDF

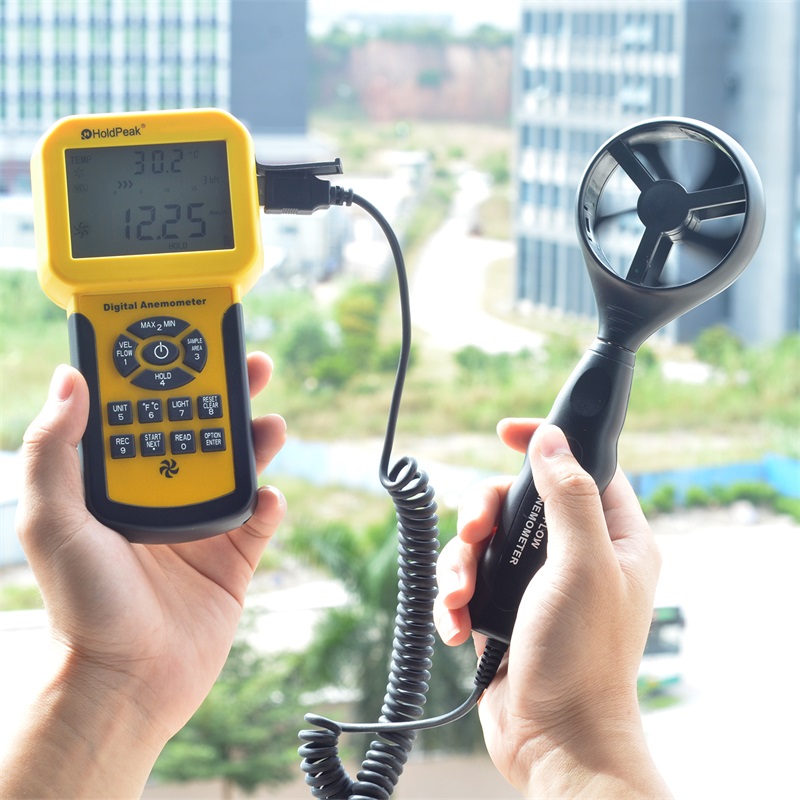

Wind Speed Sensor HoldPeak HP-846A Digital Anemometer Air Volume Measure Instrument Data R - Image 1

Technical Specifications

Overview

Professional Digital Anemometer

This high-precision digital anemometer is designed for versatile air velocity and air volume measurement in HVAC, environmental monitoring, and industrial airflow analysis applications. It features a stretchable vane sensor for flexible positioning and a clear LCD display for real-time monitoring. The device supports advanced calculation functions including air flow volume based on duct dimensions and maximum/minimum value tracking.

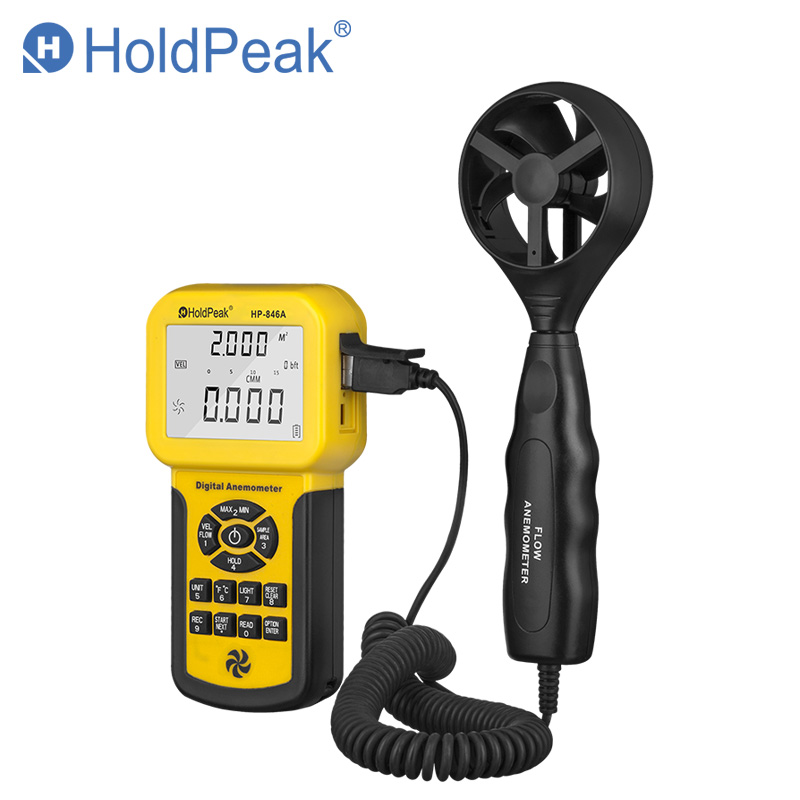

Digital anemometer with flexible vane sensor

Measurement Capabilities

CMM Flow Range: 0 - 999900 m³/min
CFM Flow Range: 0 - 999900 ft³/min
Key Measurement Modes: Wind SpeedAir VolumeAir Temperature

Device Features

Functional Highlights

Data Hold Function
Backlight Display
Max/Min Value Recording
Auto Shut Down
Duct Area Input for CFM calculation
Unit Conversion

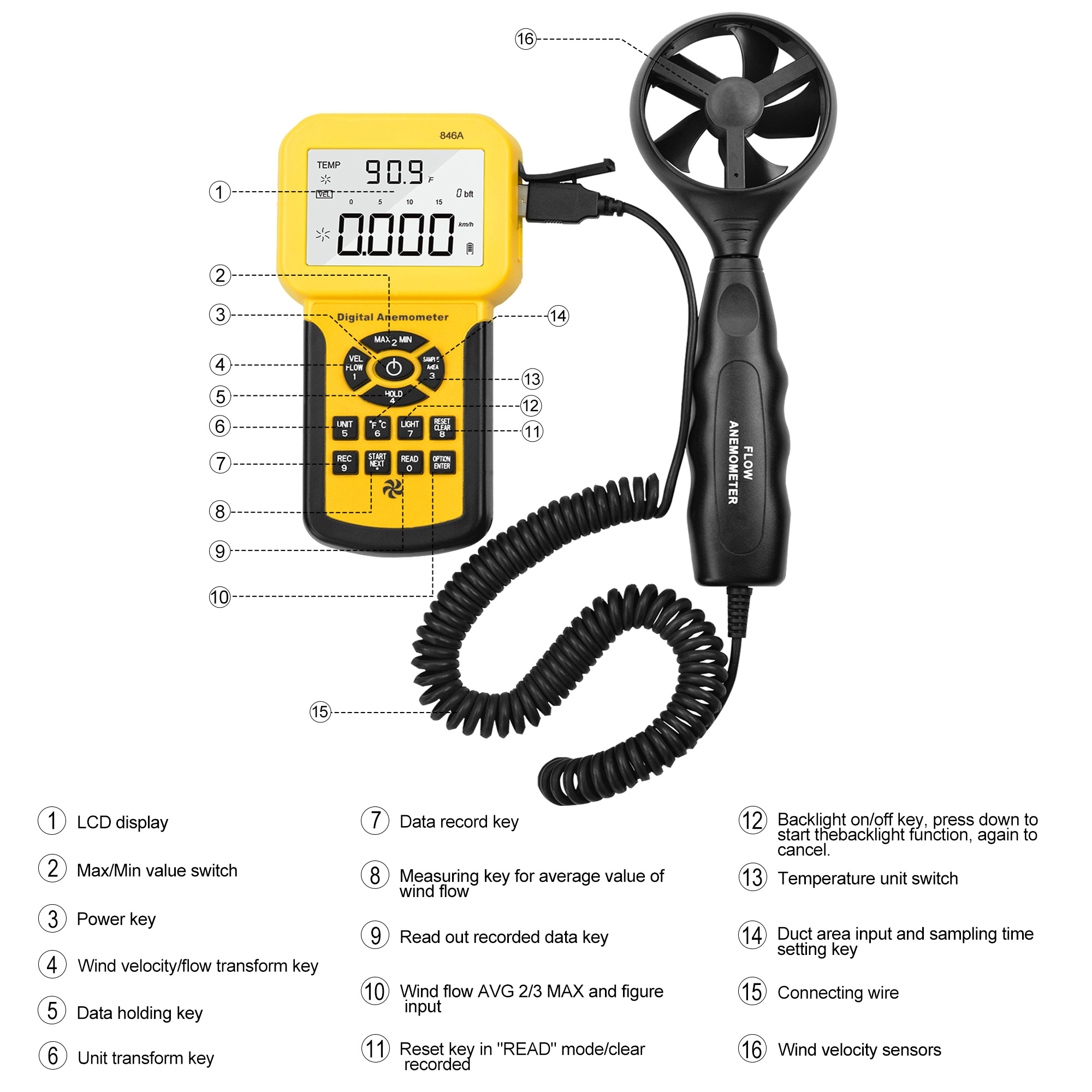

Diagram showing interface and button functions of the anemometer

Physical Specifications

Dimensions

163 mm

Length

85 mm

Width

34.5 mm

Depth

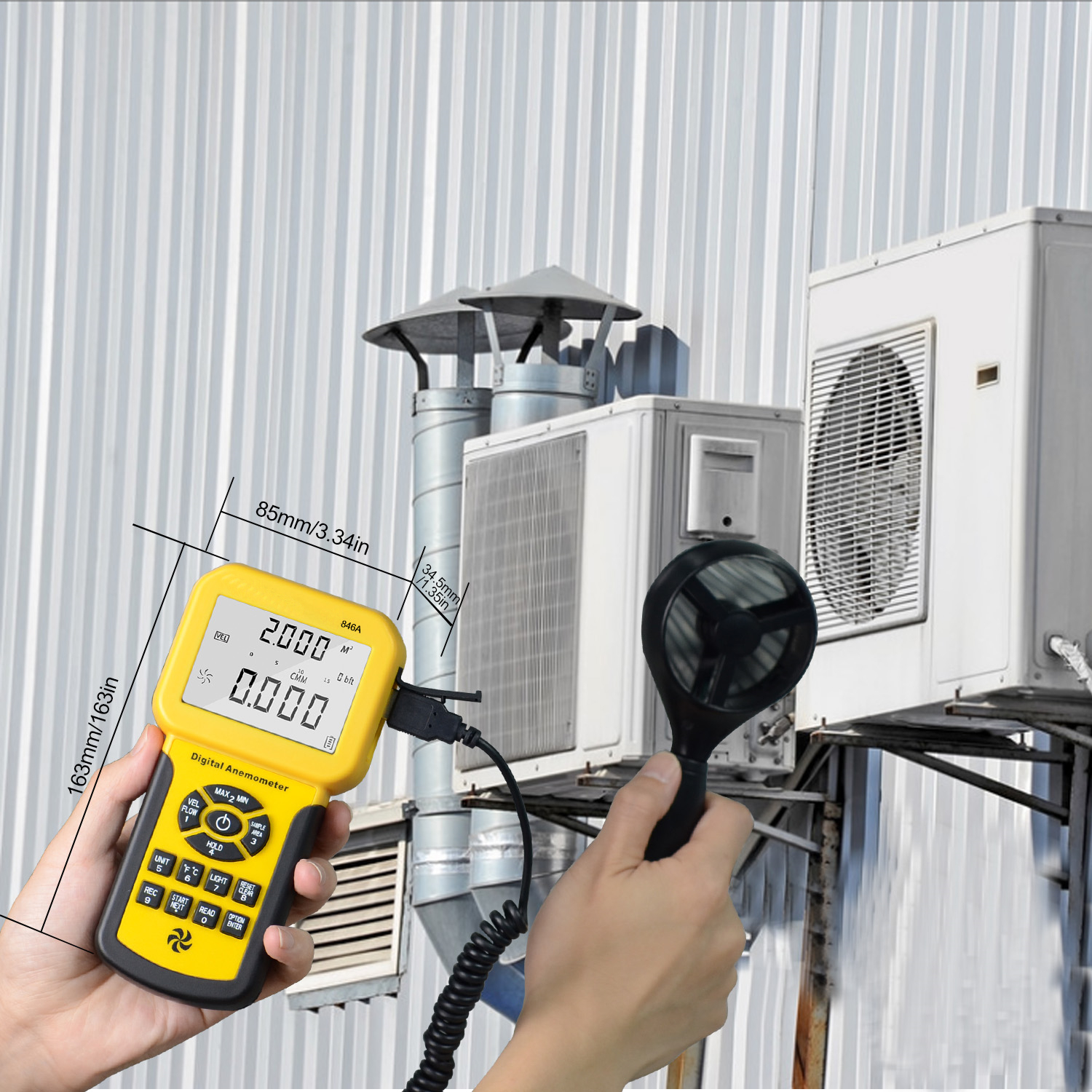

Physical dimensions diagram for the handheld anemometer
