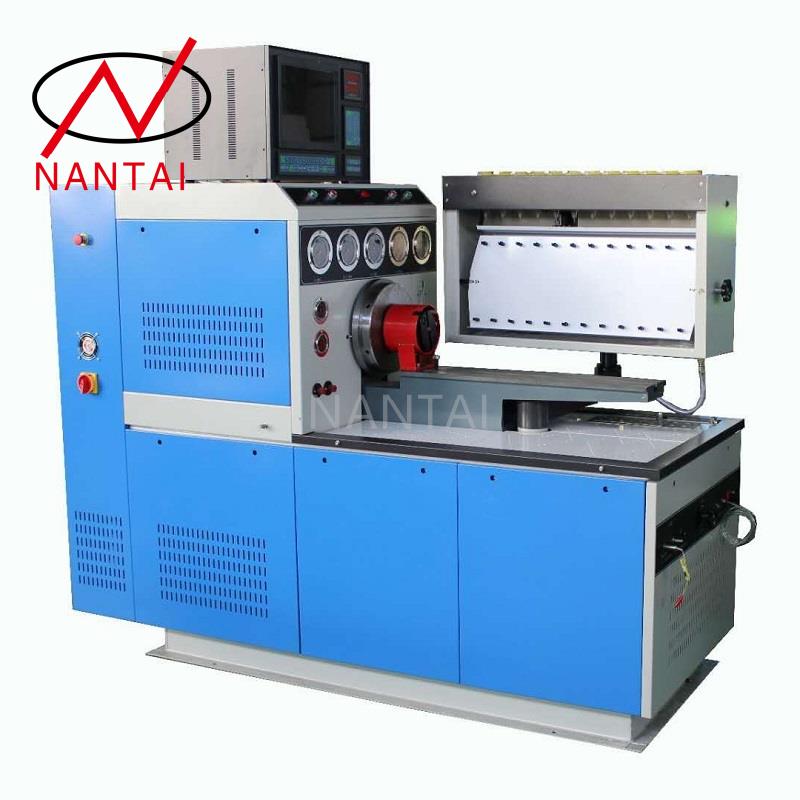

Diesel Fuel Injection Pump Test Bench
This diesel fuel injection pump test bench is designed for comprehensive testing and calibration of various diesel fuel injection pumps. The bench allows technicians to efficiently evaluate pump performance, identify faults, and perform necessary adjustments.
Technical Specifications
Overview
Professional Diesel Injection Pump Test Bench
This advanced diesel injection pump test bench is engineered for the precise calibration and comprehensive testing of various fuel injection systems. It features variable frequency speed control, high-torque output, and integrated digital monitoring for speed, count, temperature, and air pressure. Designed for efficiency and accuracy, this unit supports a wide range of diagnostic functions including delivery measurement, governor adjustment, and sealing tests, making it an essential tool for professional diesel engine maintenance workshops.
Technical Specifications
- Main Motor Output Power
- 7.5 kW11 kW15 kW18.5 kW
- Rotation Speed Range
- 4000 r/m
- Number of Cylinders
- 12
- Height of Principal Axis Center
- 125 mm
- Fuel Pump Motor Power
- 0.75 kW
- Filter Oil Precision
- 4.5 - 5.5 μ
Key Features
Core Testing Functions
- Measurement of cylinder delivery
- Mechanical governor adjustment
- Distributor pump testing
- Advance angle checking
- Sealing performance verification
