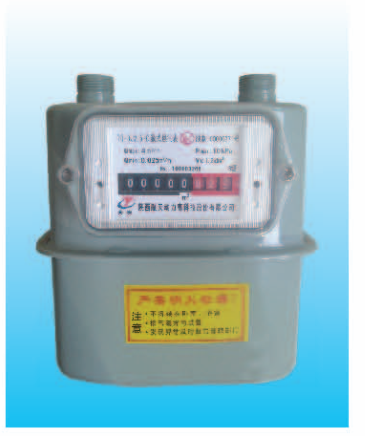

Diaphragm Gas Meter with Mechanical Counter

This gas meter accurately measures accumulated gas volume via a mechanical counter display. It features a reflux device and tamper-proof design for reliable measurement and security.

Request a Quote Download PDFPDF

Technical Specifications

Overview

Reliable Gas Measurement Solution

This diaphragm gas meter is a positive displacement device engineered for the precise measurement of gas volumes, such as natural gas or propane. It utilizes flexible diaphragms to drive a mechanical counter, ensuring accurate consumption tracking for residential and light commercial billing. Built for durability and long-term performance, this meter offers a reliable solution for pipeline gas monitoring with a service life exceeding 15 years.

Technical Specifications

Nominal Flow Rate Options

1.6 m³/h
2.5 m³/h
4 m³/h

Pressure Loss

200 Pa

Max Pressure Loss

Accuracy Grade: 1.5
Maximum Working Pressure: 10 kPa
Display Resolution: 0.001 m³

Compliance & Life

Expected Service Life: More than 15 years
Compliance Standards: GB/T6968-1997JJD-577-2005CNPA-31
