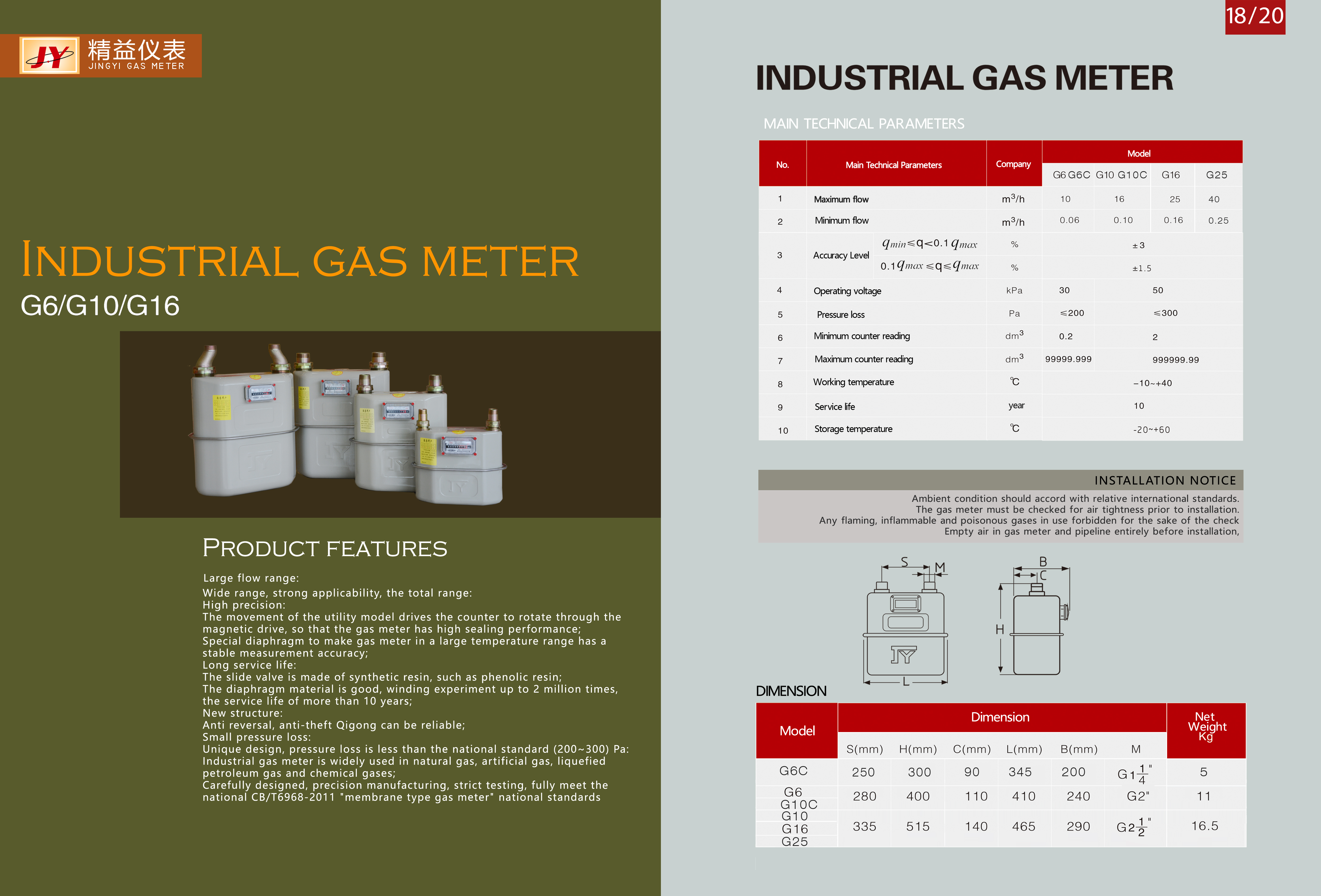

Diaphragm Gas Meter
Diaphragm gas meters accurately measure gas consumption in residential and commercial applications. These meters are available in various sizes (G6, G10, G16, G25) to accommodate different flow rate requirements.
Technical Specifications
Overview
Precision Gas Measurement
These diaphragm gas meters are engineered for the accurate measurement of natural gas, artificial gas, and liquefied petroleum gas in both residential and commercial settings. Featuring a robust construction with synthetic and phenolic resin components, they ensure long-term reliability and a service life exceeding 10 years. The design incorporates a high-precision magnetic drive and specialized diaphragms to maintain stable measurement accuracy across a broad temperature range.
Technical Specifications
Flow Rate Performance
| Model | Max Flow (m³/h) | Min Flow (m³/h) |
|---|---|---|
| G6 | 10 | 0.06 |
| G10 | 16 | 0.1 |
| G16 | 25 | 0.16 |
| G25 | 40 | 0.25 |
Operating Environment
- Available Models
- G6G6CG10G10CG16G25
- Pressure Loss
- ≤300 Pa
- Expected Service Life
- 10 years
Features
Core Advantages
- High-precision magnetic drive for superior sealing
- Anti-reversal and anti-theft Qigong design
- Synthetic and phenolic resin internal components
- Stable accuracy across wide temperature ranges
- Compliant with GB/T6968-2011 standards
Installation
Important Installation Requirements
Before installation, ensure the ambient conditions comply with relevant international standards. It is critical to perform an air tightness check on the gas meter prior to installation. Ensure all air is completely evacuated from the meter and pipeline. Do not use near flaming, inflammable, or poisonous gases during the check process.
