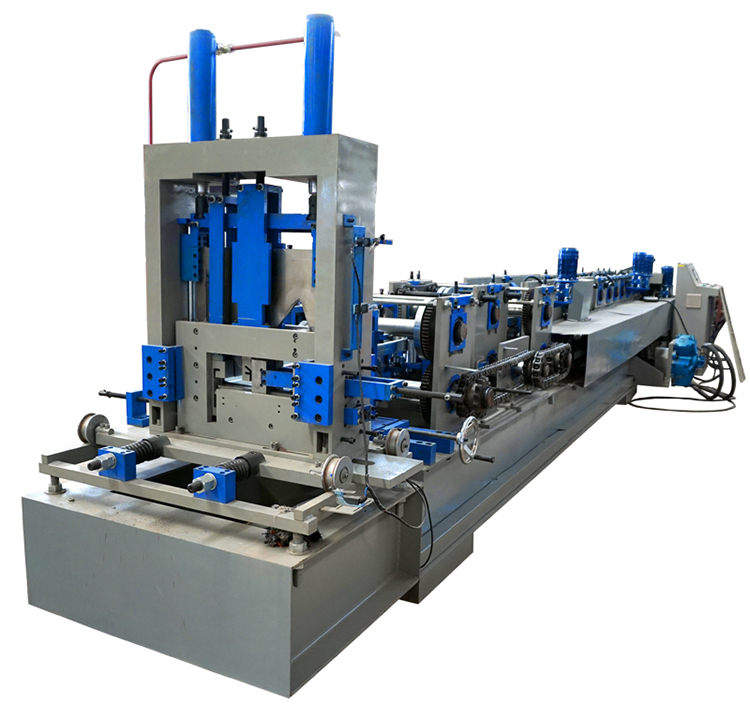

CZ Purlin Roll Forming Machine

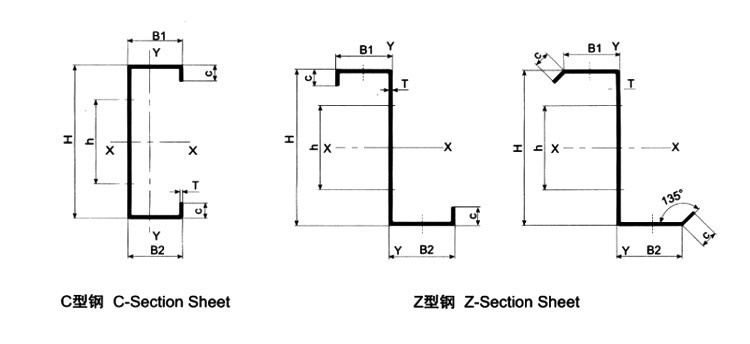

This machine is designed for forming C and Z purlins from sheet metal. It features a series of rollers that progressively shape the metal sheet into the desired profile.
Technical Specifications
Overview
Professional CZ Purlin Roll Forming Solution
This high-precision roll forming machine is engineered for the efficient production of C and Z shaped purlins from sheet metal. It features a robust 400mm H-beam main frame and a sophisticated PLC control system to ensure consistent quality and dimensional accuracy. Ideal for industrial factories, warehouses, and steel building manufacturing, this machine offers a versatile solution for high-volume structural component production.
Performance Metrics
Key Performance Metrics
22 kW
Total Power
24 m/min
Max Forming Speed
5 T
Uncoiler Capacity
Technical Specifications
- Forming Speed Range
- 12-24 m/min
- Material Thickness Range
- 1.5-3.0mm
- Adjustable Product Size
- 80-300mm
- Power Supply
- 380V, 3-Phase, 50Hz
System Components
Standard Configurations
- Manual Uncoiler (5T Capacity)
- 9 Shaft Strip Leveler

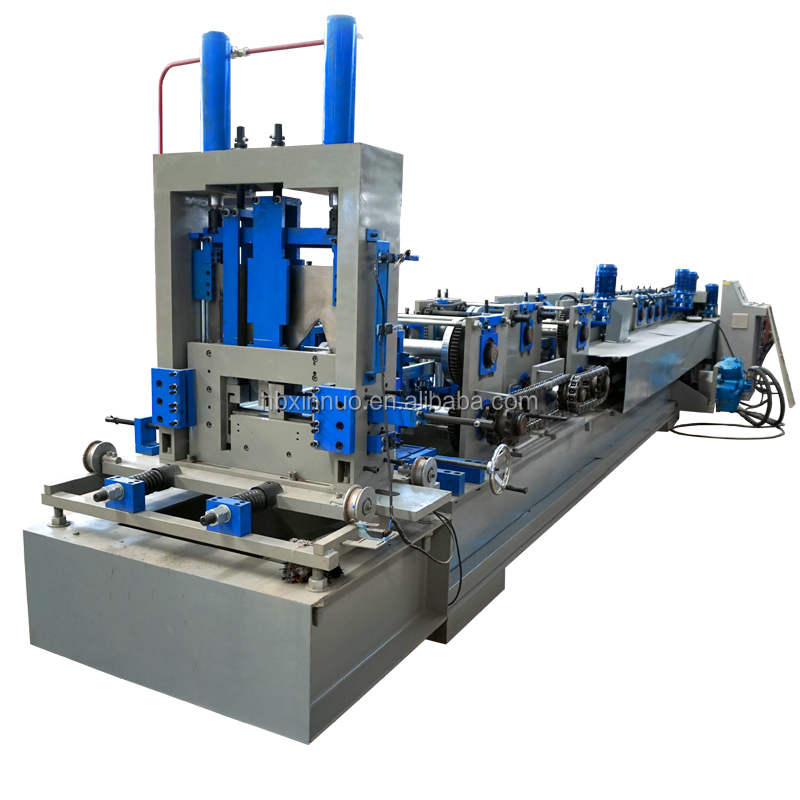

- 18-Row Roller Station

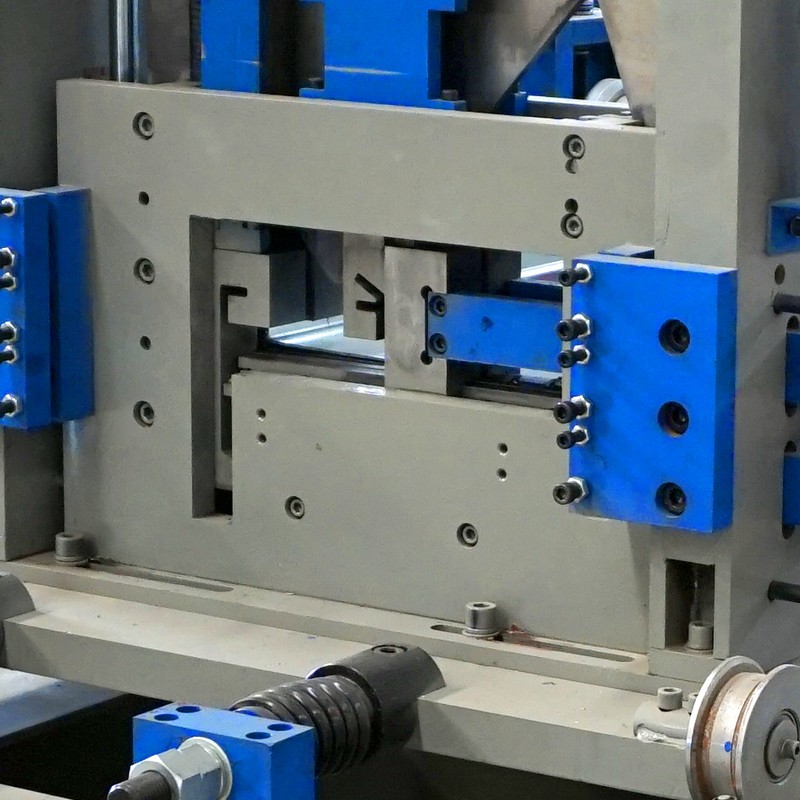

- Pre-Punching & Pre-Cutting Device
- Hydraulic Station (22kW)
- PLC Computer Control Cabinet
- Receiving Table
Control & Operation
Interface Languages
EnglishChineseSpanishRussian
- Control System Features
- PLCInverterEncoderTouch ScreenAutomatic ModeManual Mode
Material & Build
- Roller Material
- High grade Gcr15 forged steel
- Cutting System Material
- Cr12Mov with quenched treatment
Hydraulic System
Hydraulic Parameters
| Parameter | Specification |
|---|---|
| Hydraulic Oil Type | 46# Hydraulic oil |
| Working Pressure | 12-16Mpa (Adjustable) |
| Solenoid Valves | 3 Groups |
Compliance & Support
- Certifications
- CEISO 9001
- Warranty
- 1 Year
