CZ Purlin Roll Forming Machine

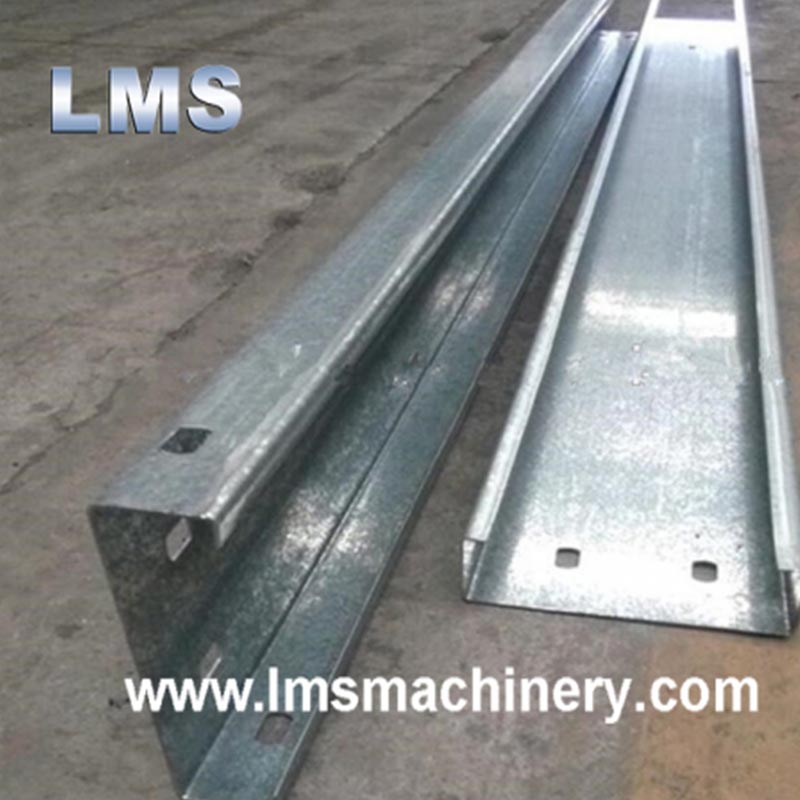

This roll forming machine efficiently produces CZ purlins commonly used for roof and wall support in construction. It progressively shapes metal strips into the desired CZ profile with high precision.
Technical Specifications
Product Overview
High-Efficiency CZ Purlin Production
This advanced roll forming machine is engineered for the precise and continuous production of CZ purlins used in roof and wall support structures. Utilizing sophisticated design software and simulation techniques, the system ensures high-precision molding and consistent output. Built for high-volume manufacturing environments, it features robust components and automated control systems to maximize productivity and reliability.
Performance Metrics
Production Speed
50 m/min
Standard Speed
80 m/min
Maximum Speed
Material Specifications
| Parameter | Value |
|---|---|
| Material Type | Steel Coil |
| Material Thickness | 1.6 mm |
| Profile Width | 38 mm |
| Profile Height | 22 mm |
Decoiler System
Coil Dimensions
- Inner Diameter: 460mm - 530mm
- Outer Diameter: Max 1300mm
- Width: 20mm - 200mm
- Capacity
- 2 tons
Roll Forming Unit
Main Shaft Specifications
- Material: 40Cr
- Diameter: 48mm
- Side Wall Thickness: 54mm
- Roller Configuration
- 12 stations
- Roller Material
- Cr12 Mold Steel
- Heat Treatment Hardness
- 60 HRC
Control & Cutting
Control System Components
- PLC Control
- Frequency Converter
- Servo Motor and Drive
- Cutting System Features
- Hydraulic SystemAutomatic PunchingAutomatic CuttingNon-stop Operation
- Power Requirements
- 380V 50Hz
