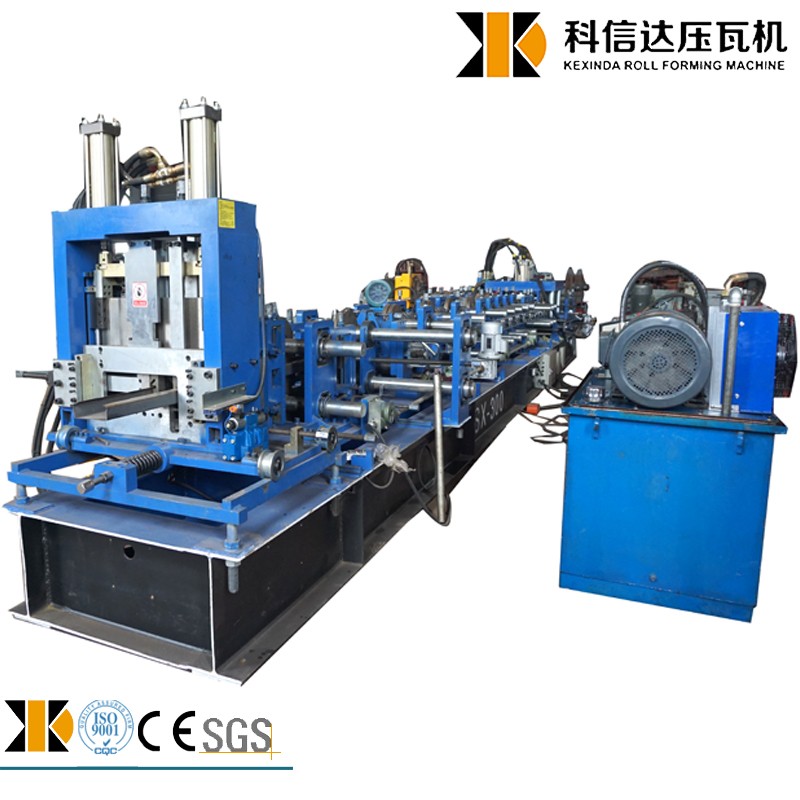

CZ Purlin Roll Forming Machine
This machine is designed for the efficient production of CZ-shaped purlins. It utilizes a roll forming process to gradually shape metal strips into the desired CZ profile.
Technical Specifications
Overview
High-Efficiency CZ Purlin Production
This CZ Purlin Roll Forming Machine is a versatile industrial solution designed for the precise manufacturing of C and Z shaped profiles used in steel construction. Featuring a robust H-beam main frame and advanced roll forming technology, it ensures consistent quality for roofing and wall support systems. The automated system integrates decoiling, leveling, punching, and cutting into a single streamlined process to maximize production efficiency.
Technical Performance
Performance Metrics
11 kW
Main Motor Power
7.5 kW
Pump Power
14 m/min
Max Forming Speed
- Forming Speed Range
- 12-14 m/min
System Configuration

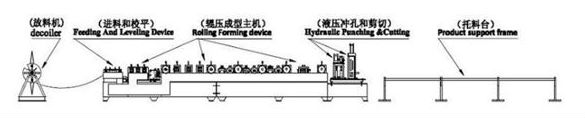

Standard Components
- Manual Decoiler
- Guiding Platform
- Coil Strip Leveler

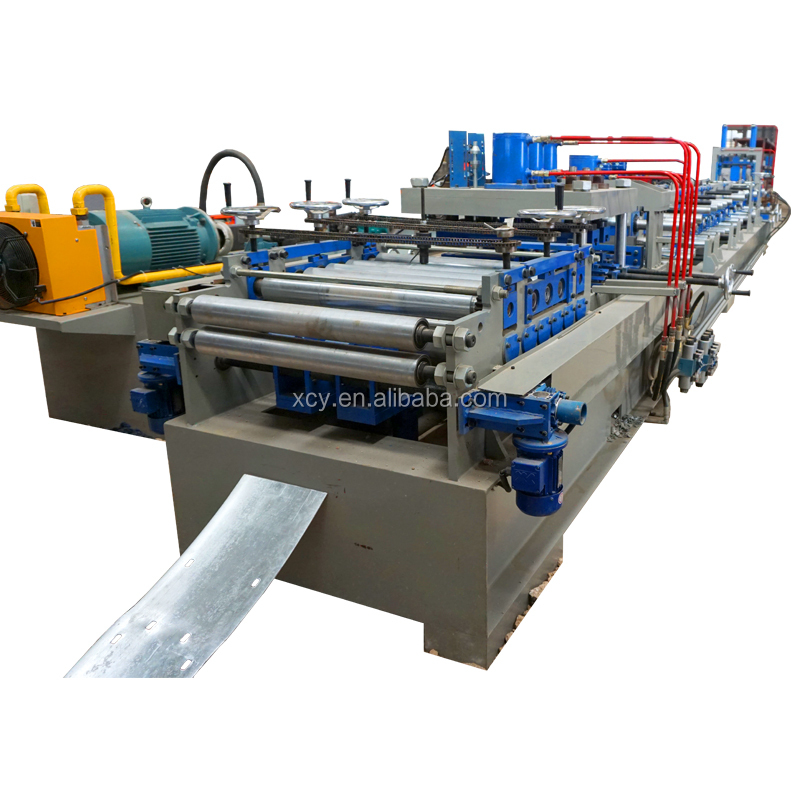

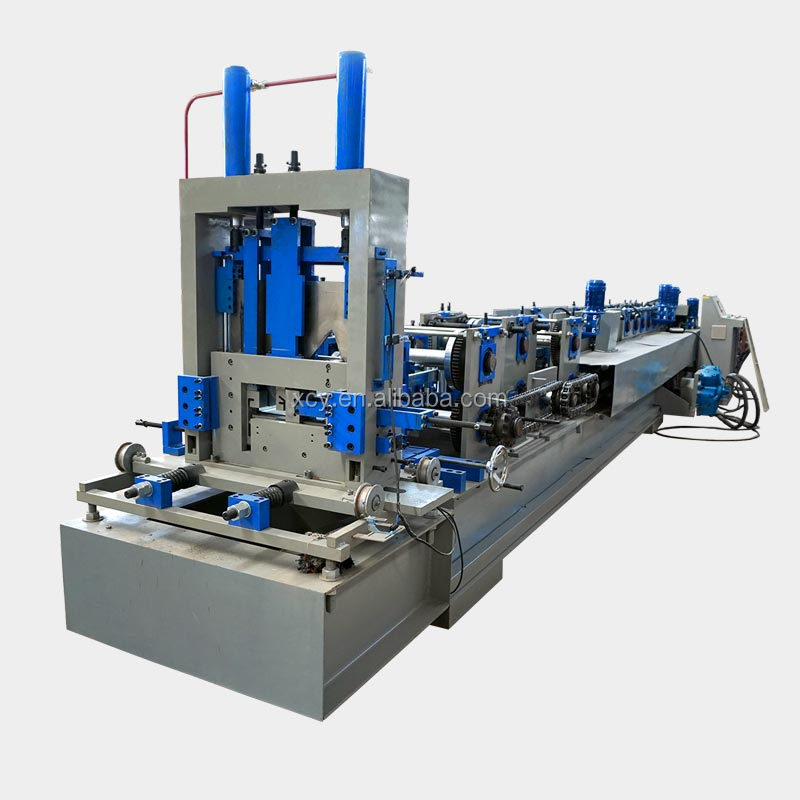

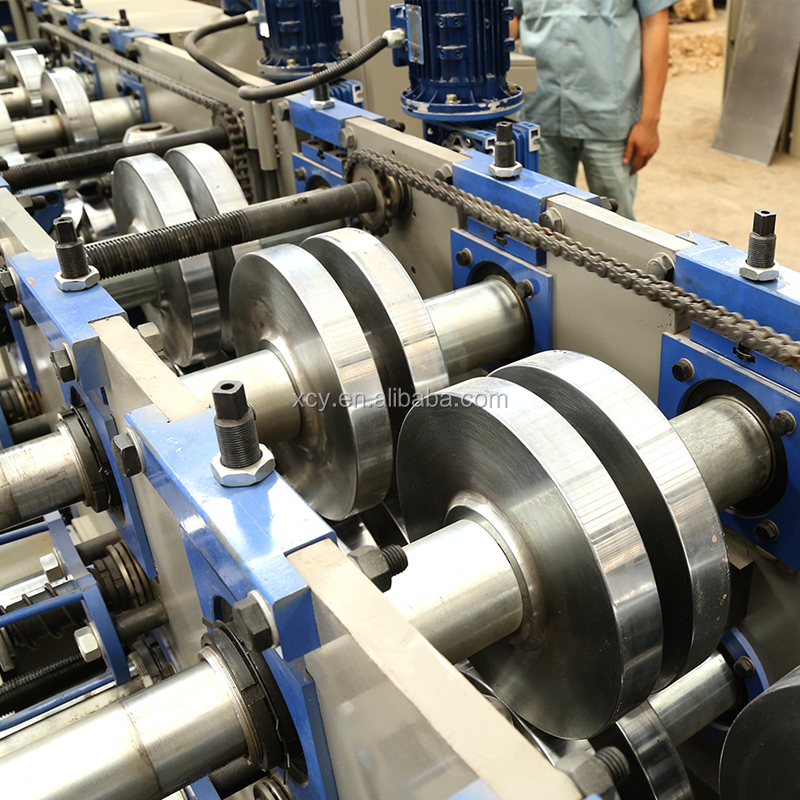

- Main Roll Forming Unit
- Hole-Punch Device
- Hydraulic Cutting Device
- Hydraulic Station
- PLC Control System
- Product Support Frame
Control & Power
- Control System
- PLC with Inverter
- Power Supply
- 3-Phase, 380V, 50Hz
Structural Specifications
- Main Frame Construction
- 350mm H-Beam
- Drive Mechanism

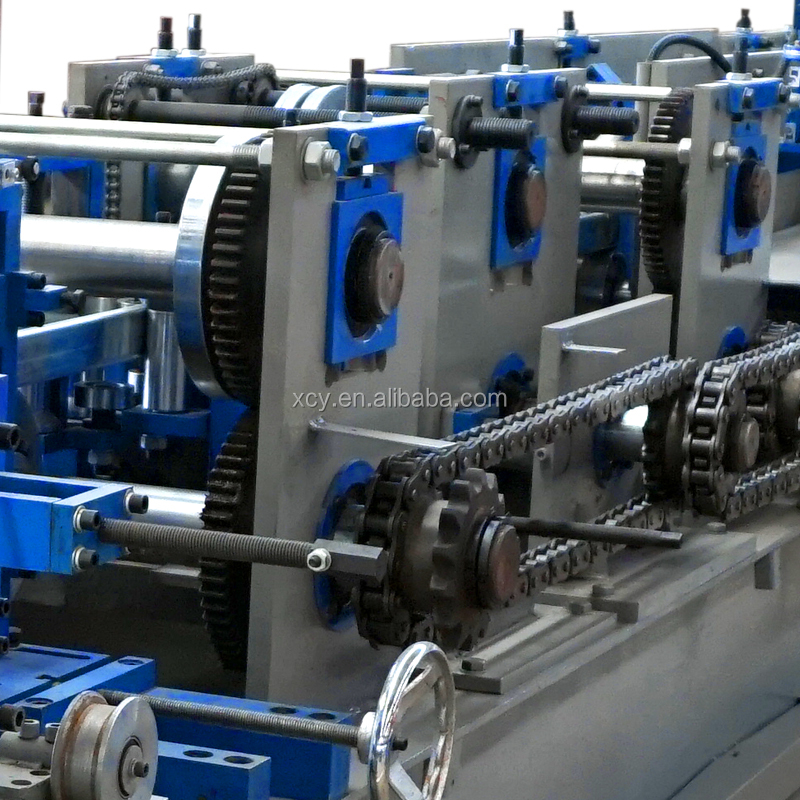

- Chain drive system for synchronized movement
Applications
- Common Applications
- Industrial WorkshopsWarehousesHigh-rise ConstructionRoofing SystemsWall Support
Compliance & Quality
Quality Standards
ISO 9001CESGS
