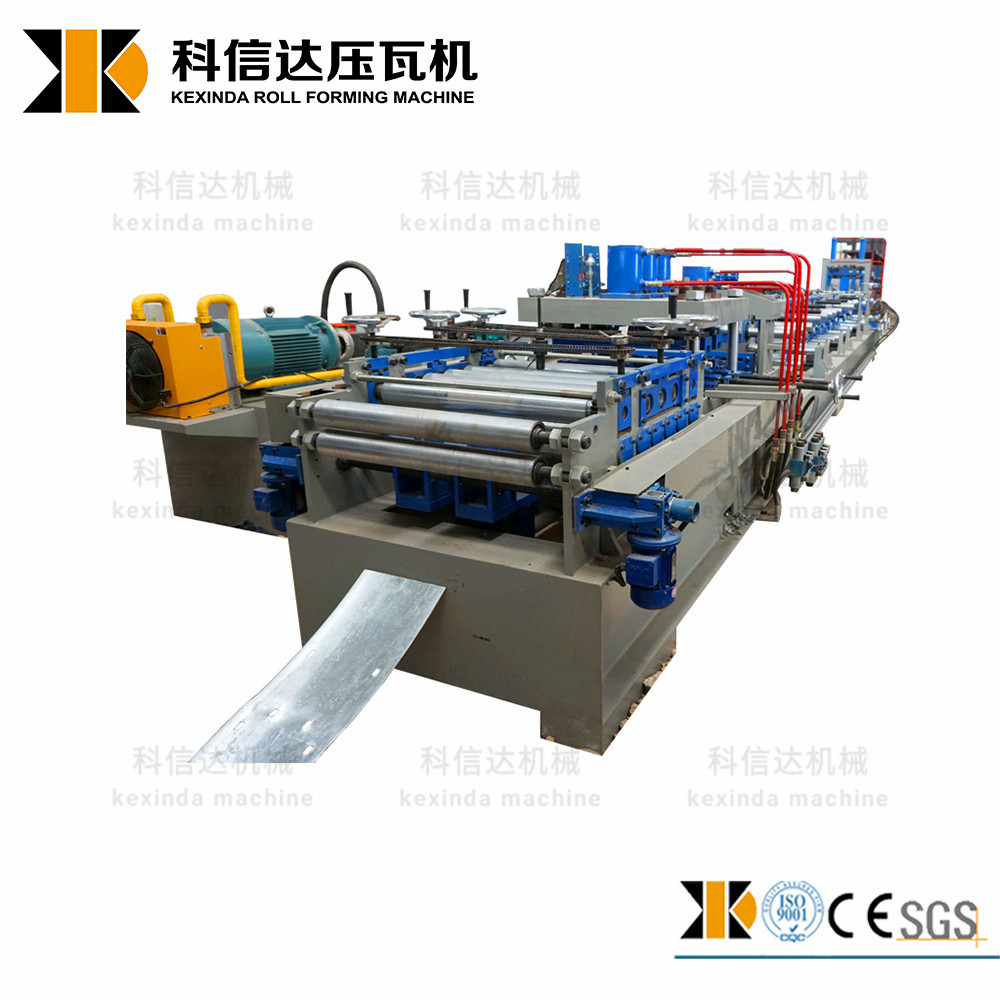

CZ Purlin Roll Forming Machine

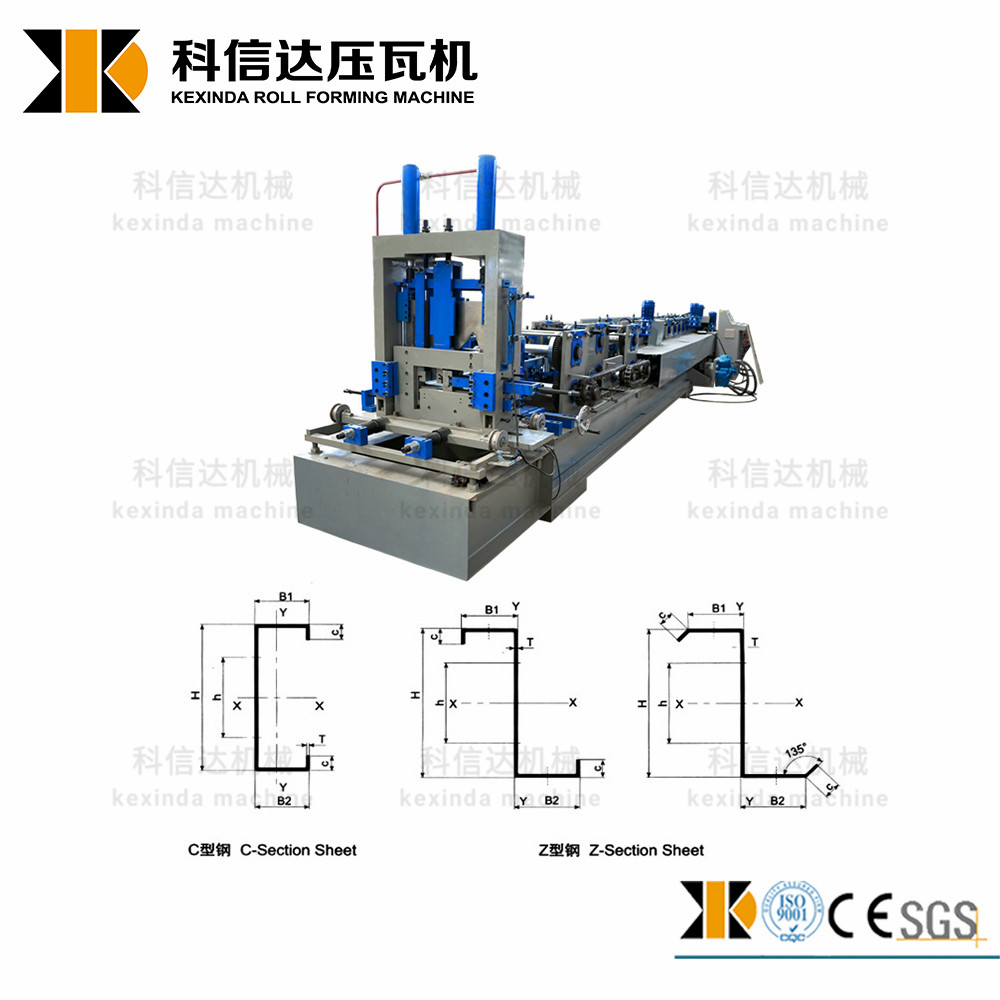

This machine produces C and Z shaped purlins from sheet metal. It utilizes a roll forming process to gradually shape the metal, ensuring consistent and accurate profiles for construction and industrial applications.
Technical Specifications
Overview
High-Efficiency CZ Purlin Production

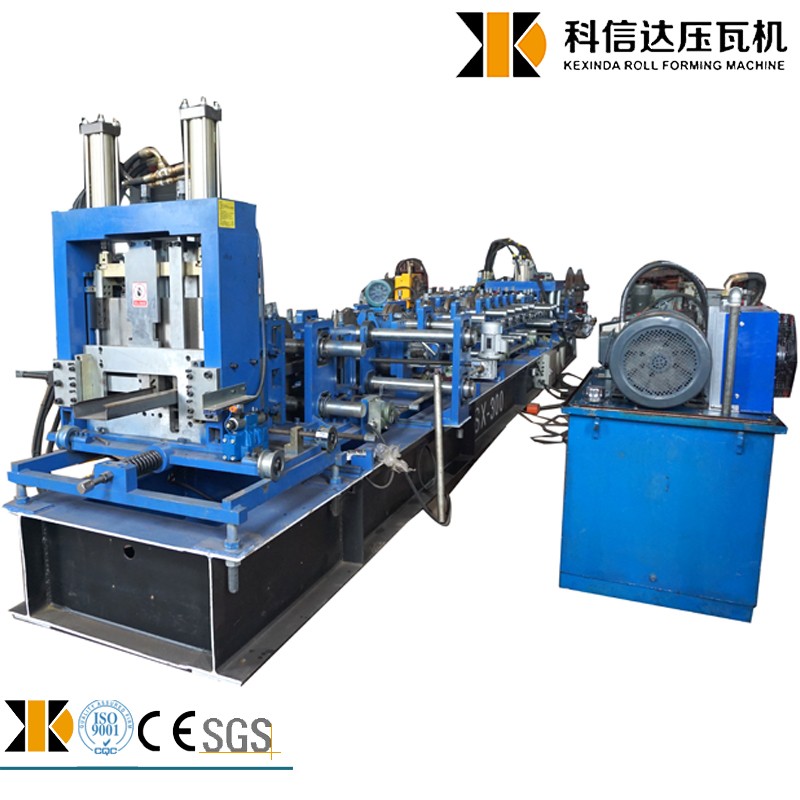

This industrial roll forming machine is engineered for the precise, automated manufacturing of C and Z shaped purlins from metal coils. It integrates a complete production line, including decoiling, leveling, roll forming, hydraulic punching, and cutting, ensuring consistent profile quality for construction and industrial applications. Designed for durability and ease of use, it features an advanced PLC control system that allows for quick size adjustments without the need for mold changes.
Technical Specifications
- Main Motor Power
- 11 kW
- Hydraulic Pump Power
- 7.5 kW
- Power Supply
- 3-Phase, 380V, 50Hz
- Main Frame Construction
- 350mm H-Beam
- Control System
- PLC with Inverter
Production Capabilities
- Roller Material
- High-grade Gcr15 forged steel
- Number of Roller Stations
- 18
- Compatible Material Thickness
- 1.5 - 3.0 mm
- Cutting Blade Material
- Cr12Mov steel with quenched treatment
- Manual Uncoiler Capacity
- 5 T

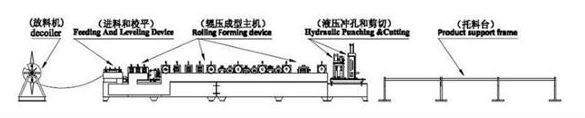

System Components
Included Line Components
- Manual Uncoiler
- Guiding Platform
- Coil Strip Leveler
- Main Roll Forming Machine
- Hole-Punch Device
- Hydraulic Cutting Device
- PLC Control Cabinet
- Product Receiving Table
