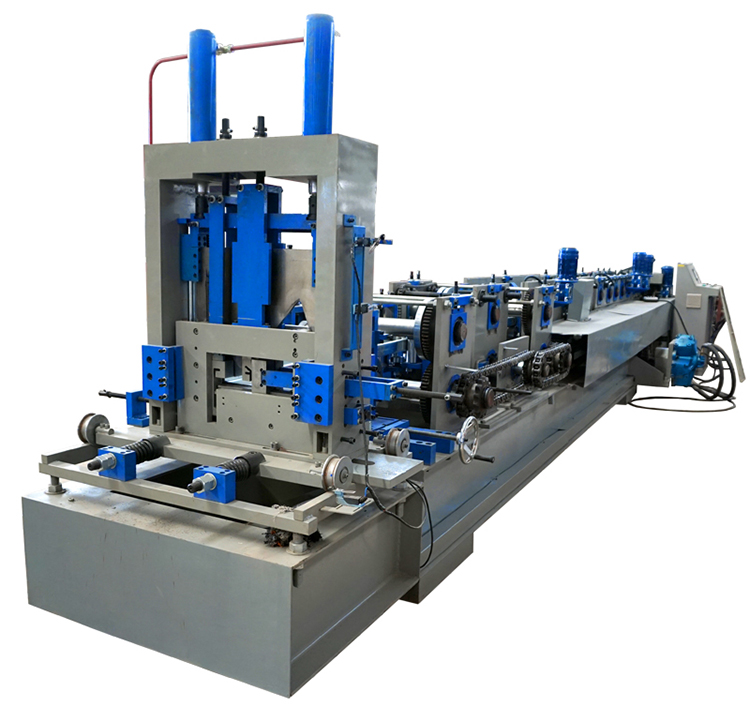

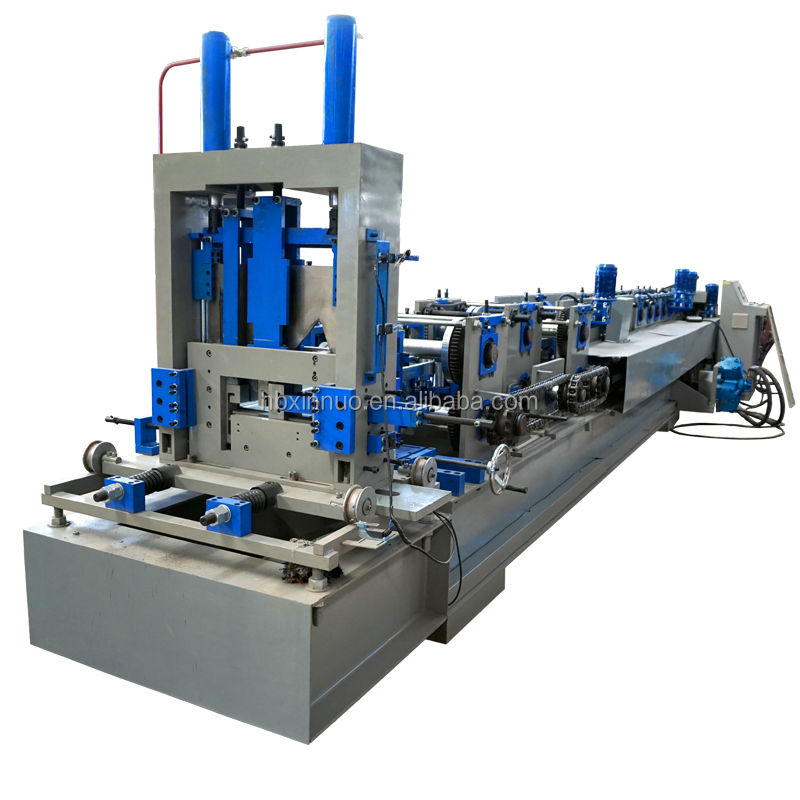

CZ Purlin Roll Forming Machine
This roll forming machine efficiently produces both C and Z purlins from sheet metal. It is designed for creating structural components used in building construction.
Technical Specifications
Overview

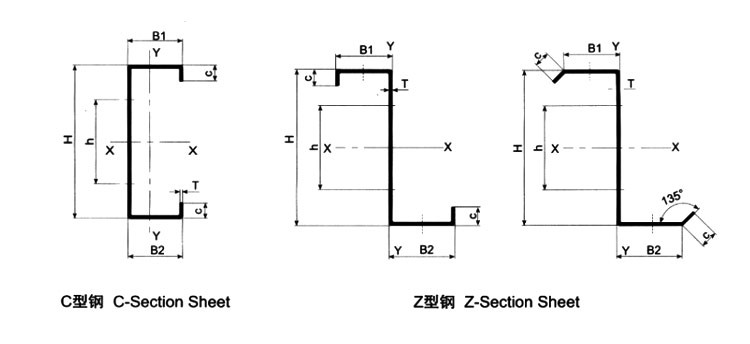

Versatile CZ Purlin Production
This fully automatic roll forming machine is designed for the high-precision manufacturing of both C and Z shaped purlins used in industrial factories and steel buildings. It features a modular design that allows for quick changeovers between profiles without changing molds, significantly reducing downtime. Engineered for durability, the system integrates a robust H-beam frame with advanced PLC controls to ensure consistent output for high-volume construction projects.
Key Performance Metrics
Key Performance Metrics
24 m/min
Max Forming Speed
22 kW
Total Power
5 T
Uncoiler Capacity
18 stands
Forming Stations
Technical Specifications
- Product Size Range
- 80-300mm (Automatically adjustable via motor)
- Feeding Material Thickness
- 1.5-3.0mm
- Main Frame Construction
- 400mm H-Beam
- Power Supply
- 380V, 3-Phase, 50Hz
Control & Operation
Interface Languages
- English
- Chinese
- Spanish
- Russian
Operation Modes
- Automatic Mode
- Manual Mode
- Control System Components
- PLCInverterEncoderTouch Screen
Component Details
Hydraulic System Parameters
| Parameter | Specification |
|---|---|
| Hydraulic Oil | 46# |
| Working Pressure | 12-16Mpa (Adjustable) |
| Solenoid Valves | 3 Groups |
- Roller Material
- High grade Gcr15 forged steel

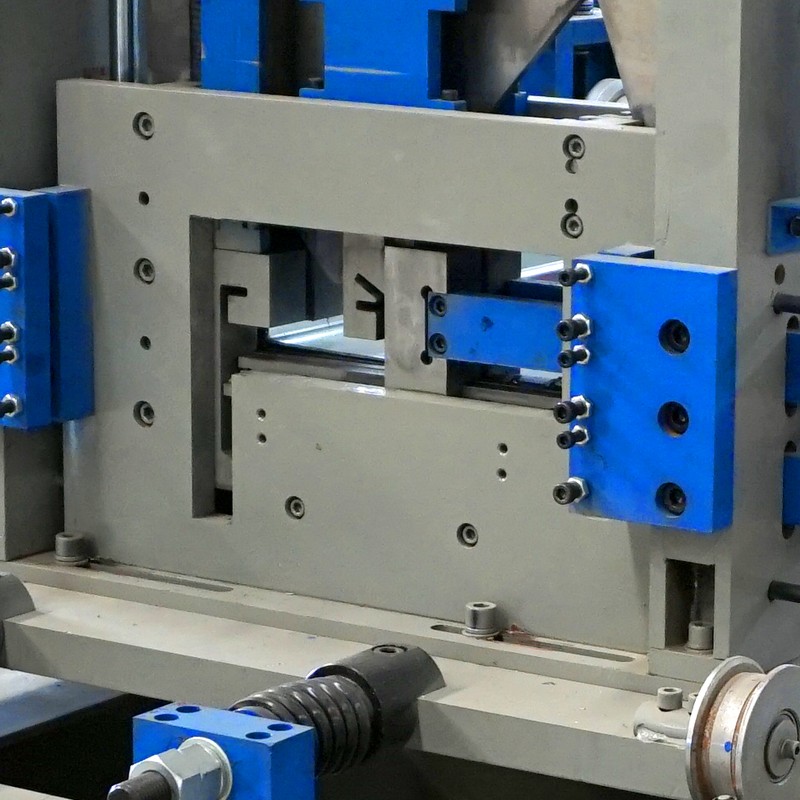

- Cutting System
- Cr12Mov steel with quenched treatment; hydraulic drive
System Configuration
Line Components
- Manual Uncoiler
- Guiding Platform
- 9 Shaft Strip Leveler

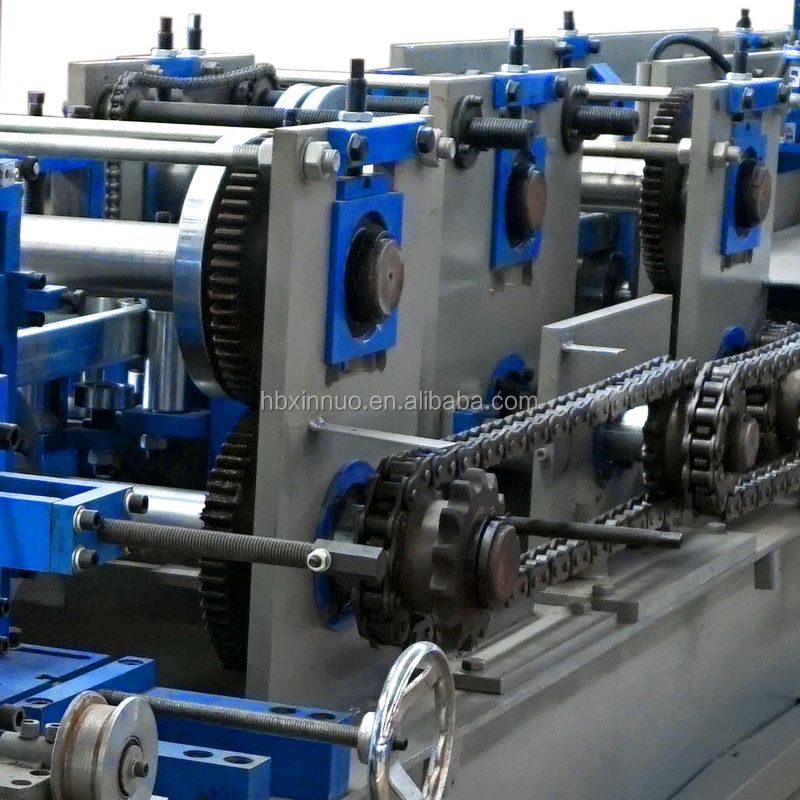

- Main Roll Forming Machine
- Pre-Punching Device
- Pre-Cutting Device
- Hydraulic Station
- PLC Control Cabinet
- Supporter/Receiving Table
Compliance & Support
Certifications
CEISO
- Warranty
- 1 Year standard warranty
