Cylindrical Cartridge Heater with Temperature Sensor

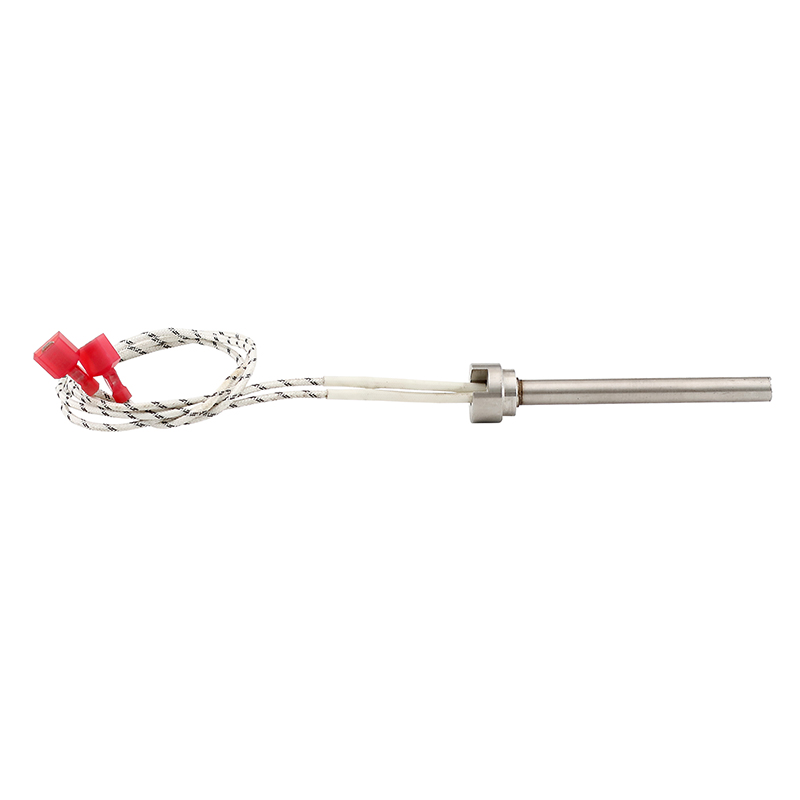

This cartridge heater features a cylindrical stainless steel body with dual insulated wires and spade terminals. It is designed for insertion into close-fitting holes to provide localized heating and includes a temperature sensor for accurate measurement.
Technical Specifications
Product Overview
Precision Heating Solution
This cylindrical cartridge heater integrates a high-precision temperature sensor to facilitate exact thermal management in industrial environments. Engineered with premium materials like SUS304 and Incoloy, it offers robust performance for equipment with strict temperature requirements. The design supports full customization of dimensions, power, and voltage to meet the specific demands of your application.
Technical Specifications
- Diameter Range
- 5 mm - 25 mm
- Tube Materials
- SUS304SUS316LSUS321SUS310SINCOLOY840INCOLOY800
- Integrated Sensor Type
- Type KType J
Electrical Performance
Key Performance Metrics
1,000 MΩ
Insulation Resistance
0.5 mA
Leakage Current
- Insulation Power Error (Cold)
- +5% / -10%
