Technical Specifications
Overview

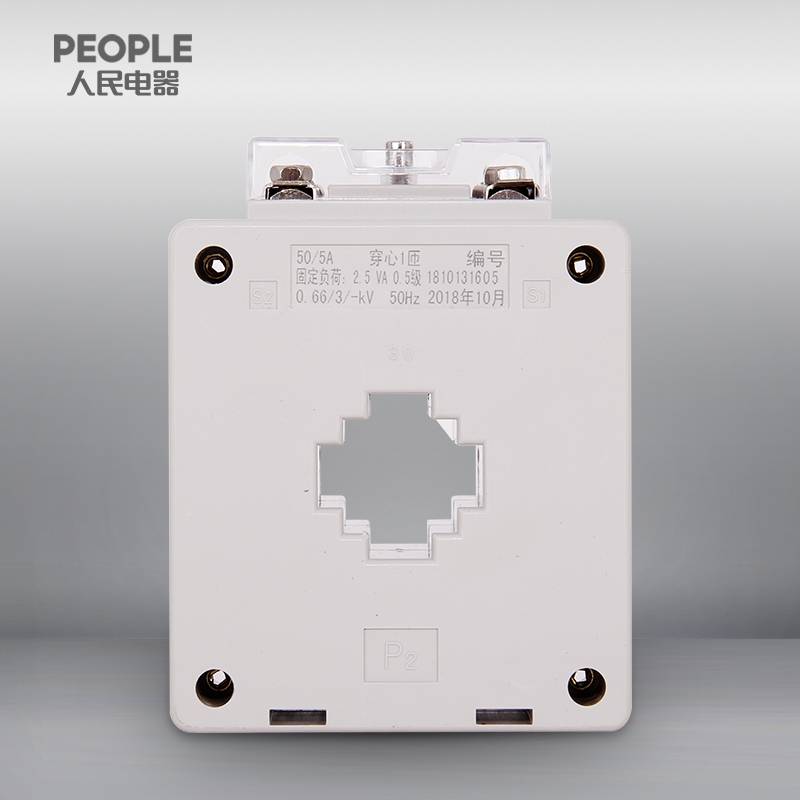

Precision Current Measurement
This indoor current transformer is engineered for reliable signal transport and monitoring in 50Hz electrical circuits. Designed with a compact, lightweight, and flame-resistant housing, it ensures safety and durability in demanding industrial environments. It is specifically built to facilitate accurate measurements for instruments, meters, and relay protection devices while providing necessary isolation from high-voltage lines.
Technical Specifications
- Current Ratio
- 50/5A
- Rated Voltage
- 660 V
- Operating Frequency
- 50 Hz
- Burden Rating
- 2.5 VA
- Accuracy Class
- 0.5
Key Metrics
Performance Metrics
50 A
Primary Current
5 A
Secondary Current
2.5 VA
Rated Burden
Compliance & Standards
- Compliance Standards
- GB20840.2
Construction
Material Properties
Flame-resistantHigh-force engineering plasticHigh-pressure injection moulded

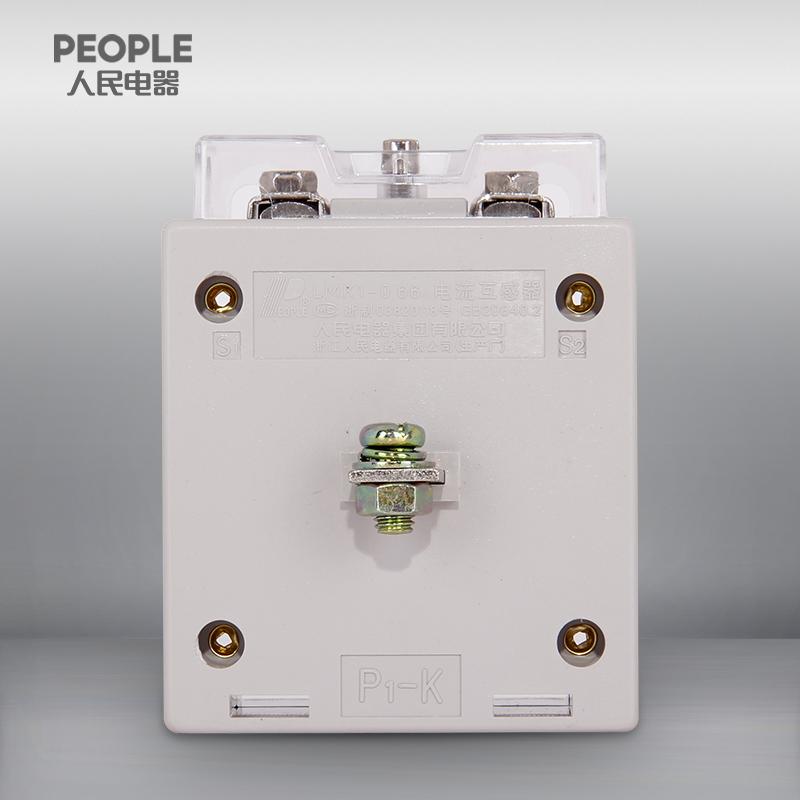

Terminal Configuration
- S1 (Secondary)
- S2 (Secondary)
- P1 (Primary)
- P2 (Primary)
