Corrugated Wall Panel Forming Machine
This machine is designed for forming and welding transformer fins to create corrugated wall panels. PLC control enables a fully automatic line with automated conveying, clamping, and welding.
Technical Specifications
Product Overview
High-Efficiency Production System

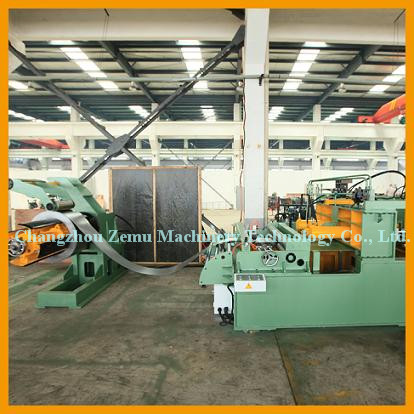

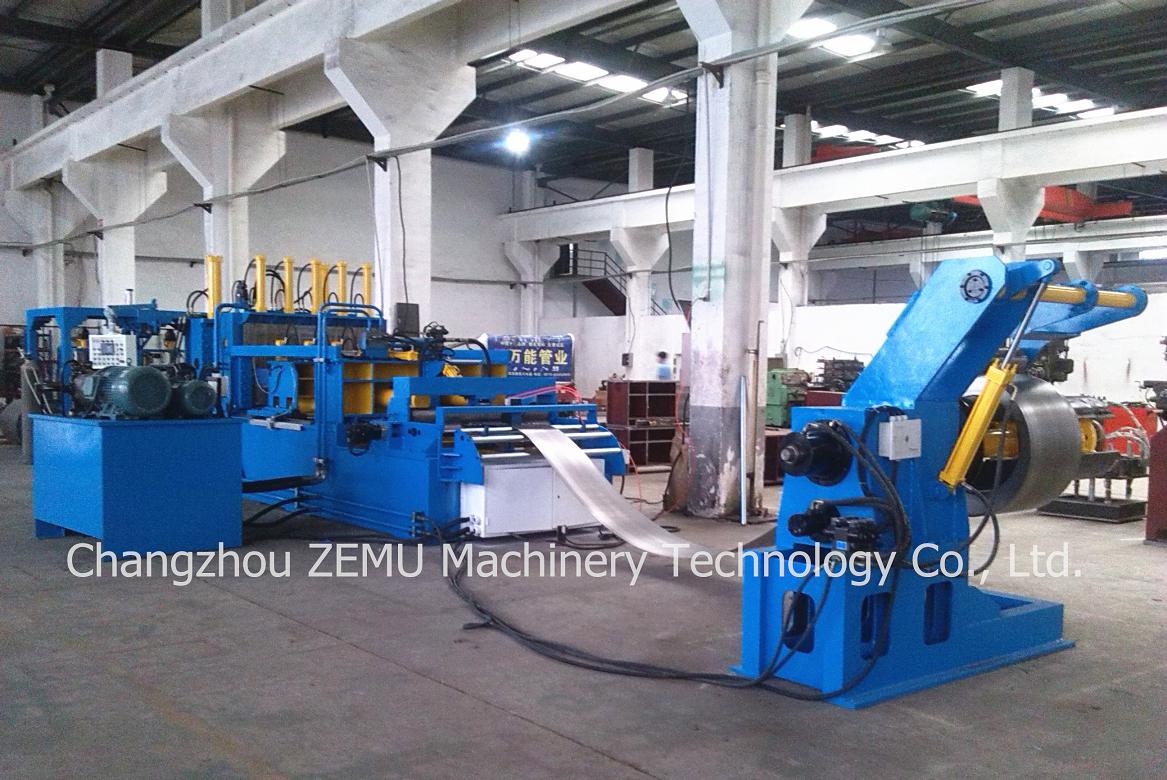

The BW1300A is a specialized, high-performance machine designed for the efficient production of corrugated wall panels. It integrates advanced hydraulic and control systems with robust steel frame construction to ensure stable, continuous operation. The system features automated feeding, forming, cutting, and stacking mechanisms, minimizing material waste while maximizing output quality for construction and industrial applications.
Technical Specifications
Core Components
- Decoiler
- Forming unit
- Hydraulic system
- Cutting mechanism
- Automated feeding system
- Stacking mechanism
- Production Capabilities
- Adjustable corrugation depthAdjustable pitchVariable panel lengthVariable material thickness
Safety & Control
Safety Features
Emergency stop buttonsProtective guards
- Control System
- Automated control system for precise adjustments and consistent output quality
Applications
Suitable Applications
- Industrial buildings
- Warehouses
- Agricultural structures
- General construction
