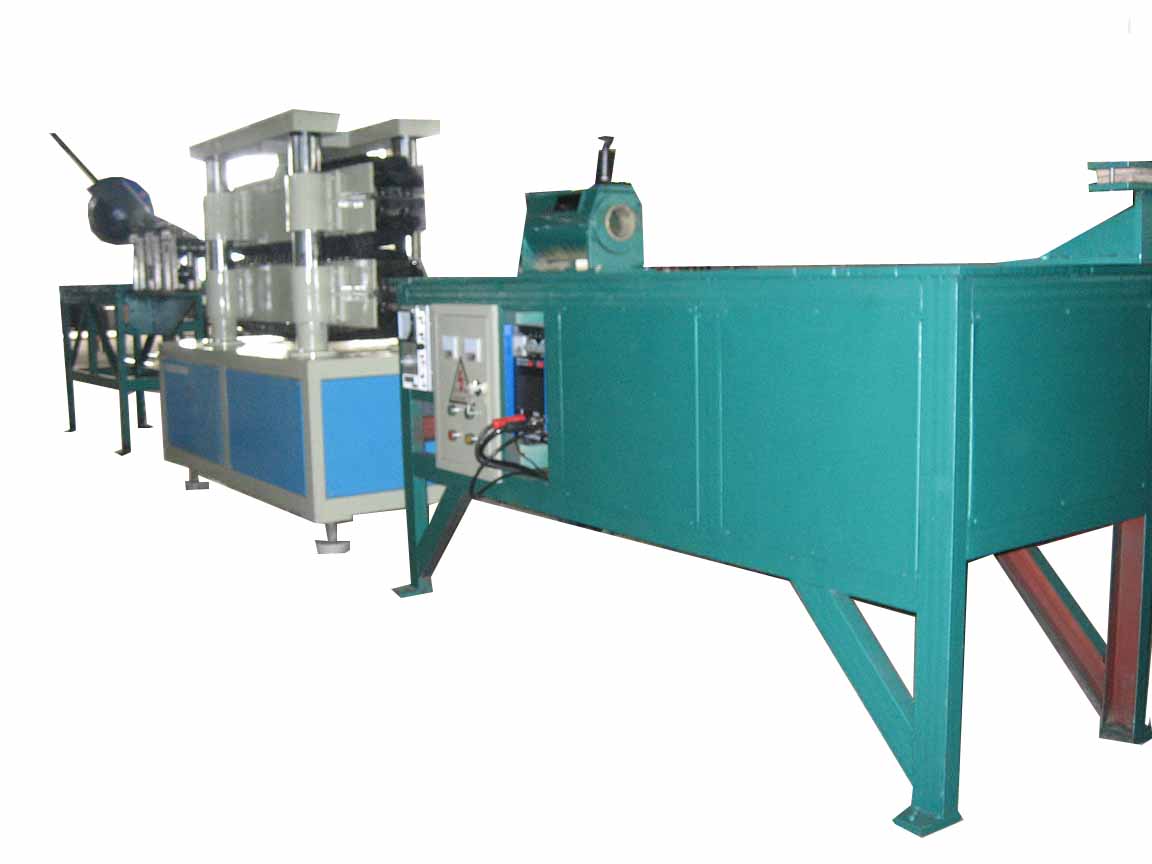

Corrugated Steel Pipe Production System
This production system is designed for manufacturing corrugated steel pipes. It integrates feeding, forming, cooling, and control mechanisms to ensure continuous and efficient production.
Technical Specifications
Overview
Automated Corrugated Pipe Production
This production line utilizes advanced continuous wave ring forming technology to manufacture high-quality, deep corrugated pipes and hoses. Designed for efficiency, the system operates with a vibration-free traction mechanism that ensures smooth, noise-free, and jitter-free performance. The resulting pipes feature enhanced elasticity and versatility, making them suitable for a wide range of industrial applications.
Technical Specifications
Compatible Material Thickness
0.18 mm
Min Thickness
0.45 mm
Max Thickness
Pipe Diameter Range
10 mm
Min Diameter
50 mm
Max Diameter
Capabilities
Key Capabilities
- Automatic continuous wave ring forming
- Continuous welding capability
- Continuous corrugation forming
- Automatic winding system
- Secondary rolling for deeper corrugation
Operational Quality
- Performance Highlights
- Vibration-freeLow NoiseJitter-freeHigh ElasticityFully Automatic
Materials
Supported Materials
Stainless Steel
