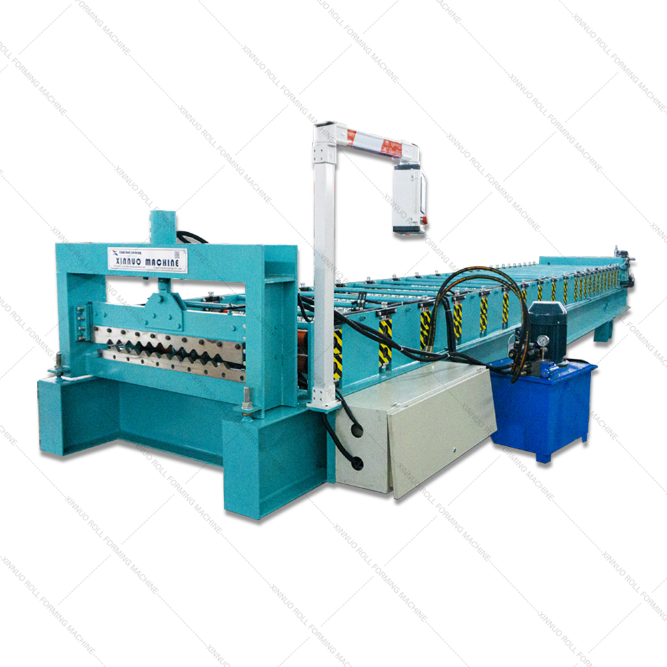

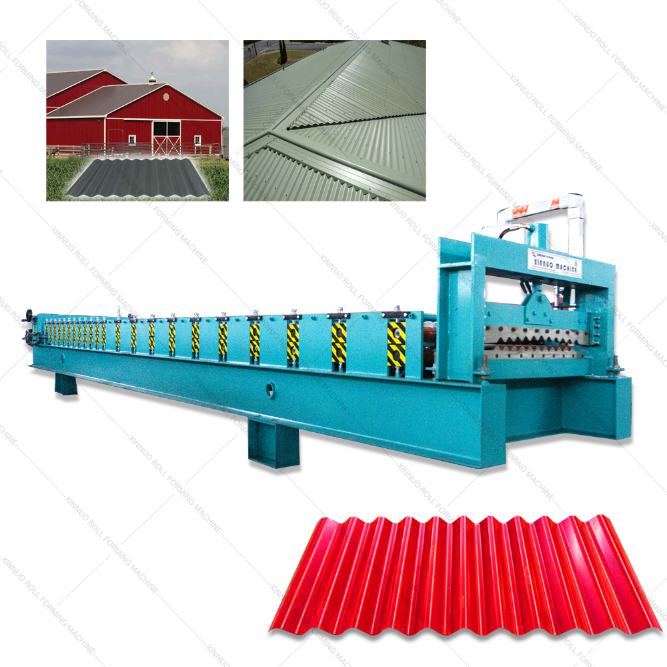

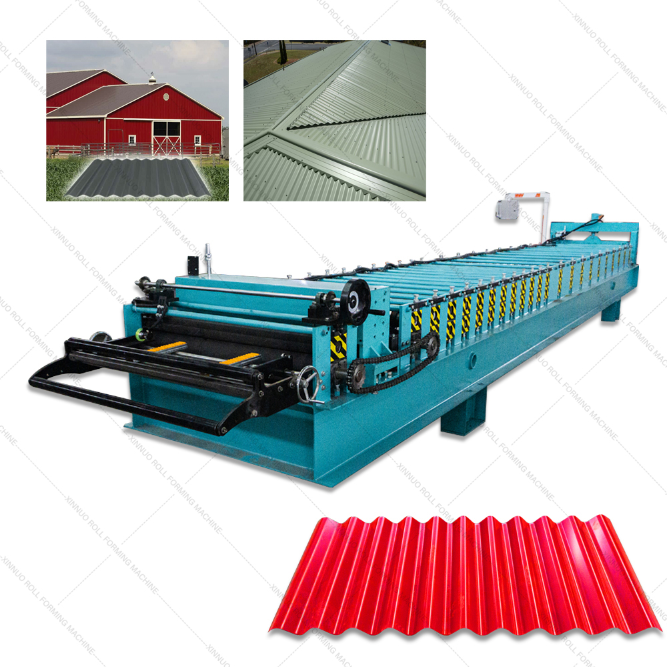

Corrugated Sheet Roll Forming Machine
This machine produces corrugated metal sheets for roofing and cladding. It forms the metal through a series of rollers to create the desired corrugated profile.
Technical Specifications
Overview
High-Efficiency Corrugated Sheet Production
This roll forming machine is engineered for the precise and efficient production of corrugated metal roofing and wall cladding. It features a robust heavy-duty steel frame and 14 rows of precision-engineered rollers to ensure consistent profile shaping. Designed for versatility, it handles various material thicknesses and is especially suitable for operations with limited floor space due to its compact and reasonable structure.
- Key Features
- Space SavingEasy OperationHigh PrecisionModular DesignLow Maintenance
Technical Performance
Performance Metrics
12 m/min
Max Productivity
4 kw
Main Motor Power
5 tons

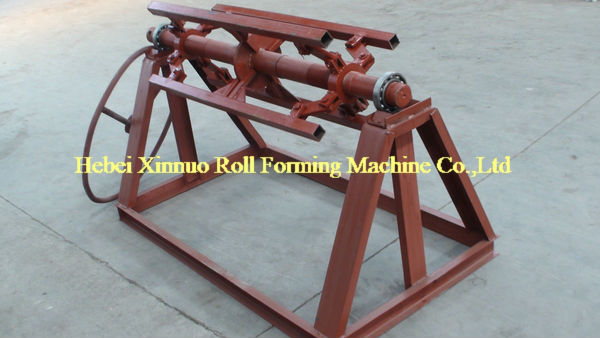

De-coiler Capacity
Material Specifications
Compatible Materials
- Color steel plate
- Galvanized steel
- Aluminum
- Pre-painted steel
- Plate Width
- 1000 mm
- Plate Thickness Range
- 0.3 - 0.8mm
Machine Components
- Forming Stations
- 14 rows
- Roller Diameter
- 80 mm
- Roller Material
- Carbon Steel 45#

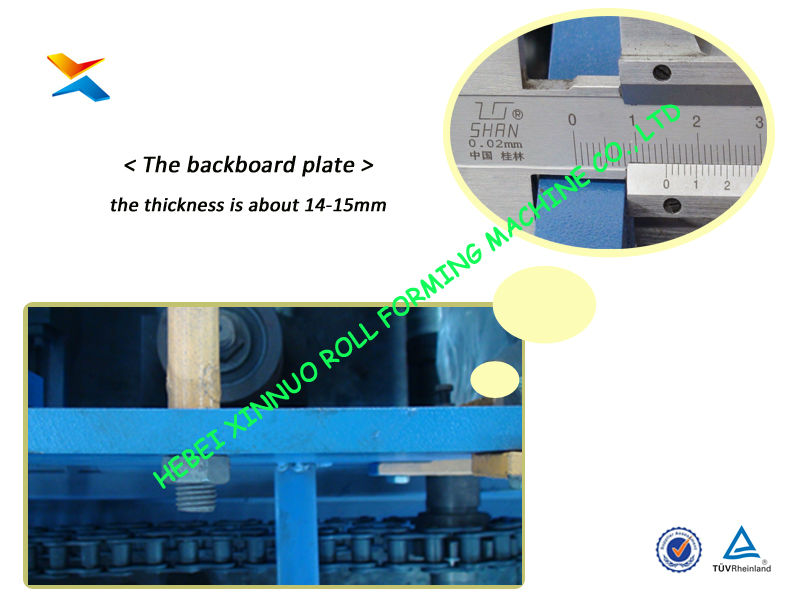

- Backboard Plate Thickness
- 15 mm
Cutting & Control
Cutting Blade Material
Cr12
Control System

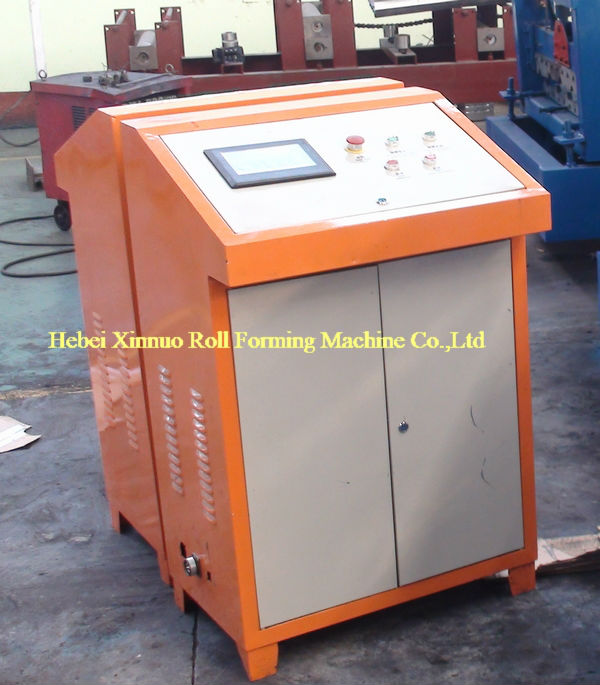

- PLC Programmable Logic Controller
- User interface screen for parameter input
- Emergency stop safety button
- Automated forming speed adjustment
- Cutting Method
- Hydraulic mould cutting
Hydraulic System

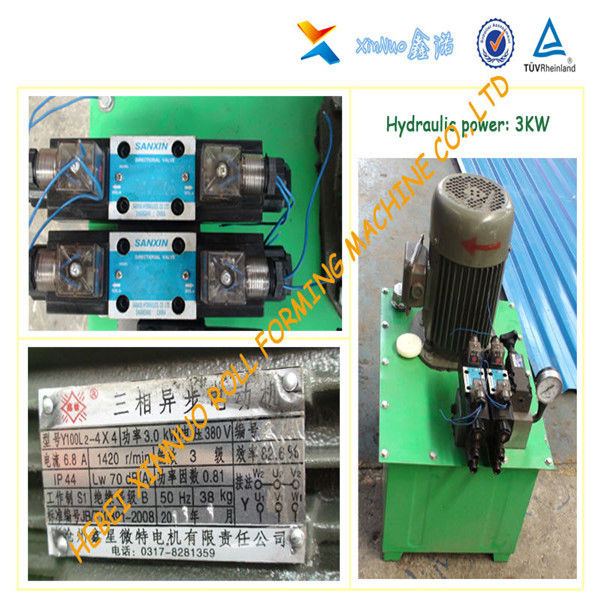

Hydraulic Unit Details
| Parameter | Value |
|---|---|
| Power | 3.0 kW |
| Voltage | 380 V |
| Rated Speed | 1420 r/min |
| Protection Level | IP44 |
| Noise Level | 70 dB(A) |
