Corrugated Sheet Roll Forming Machine

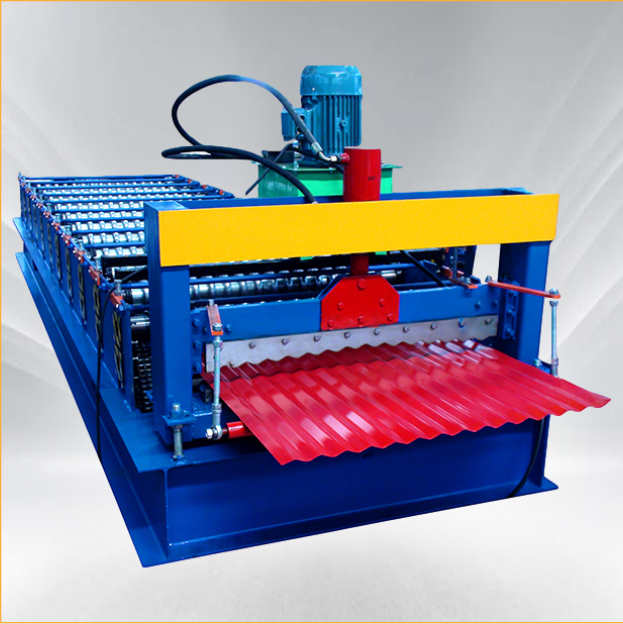

This automatic roll forming machine produces corrugated iron sheets. It utilizes a series of rollers to gradually shape the metal sheet into the desired corrugated profile.
Technical Specifications
Product Overview
High-Efficiency Corrugated Sheet Production

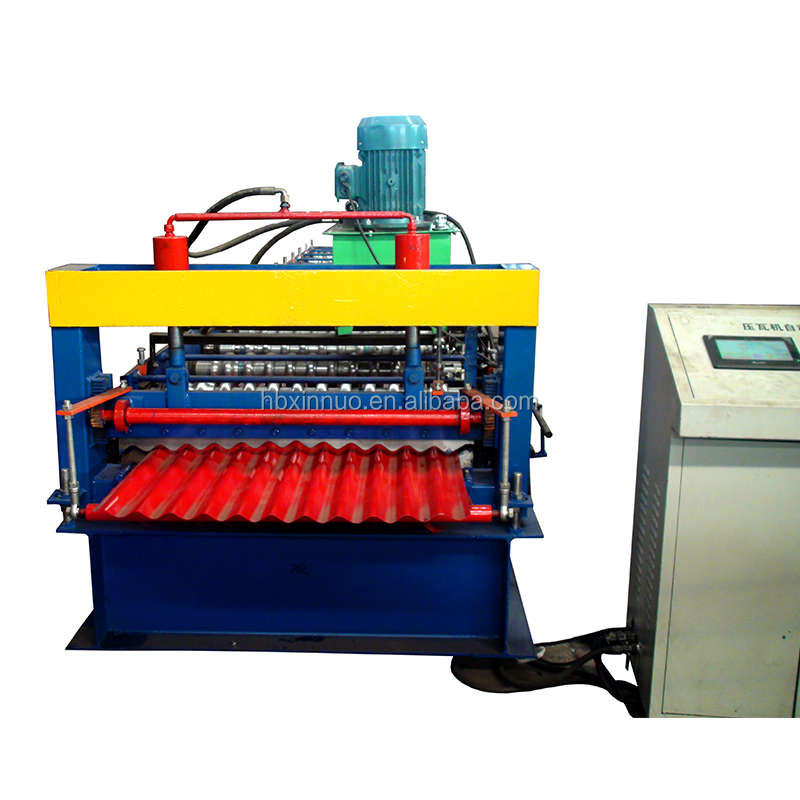

This automatic roll forming machine is engineered for the high-volume production of corrugated iron and color steel panels. Featuring a robust 300 H-steel structure and 20 rows of precision rollers, it delivers consistent profiles with a processing precision within 1.00mm. The integrated Delta PLC control system and hydraulic mould cutting ensure streamlined, automated operation suitable for professional roofing and cladding applications.
Technical Performance
Performance Highlights
12 m/min
Max Productivity
20 Rows
Forming Rows
1 mm
Precision Tolerance
Material Specifications
- Compatible Materials
- Color Steel PlateIron SheetCarbon Steel 45#
- Plate Width
- 914 mm
- Plate Thickness Range
- 0.16 - 0.3 mm
Machine Components
Roller Details

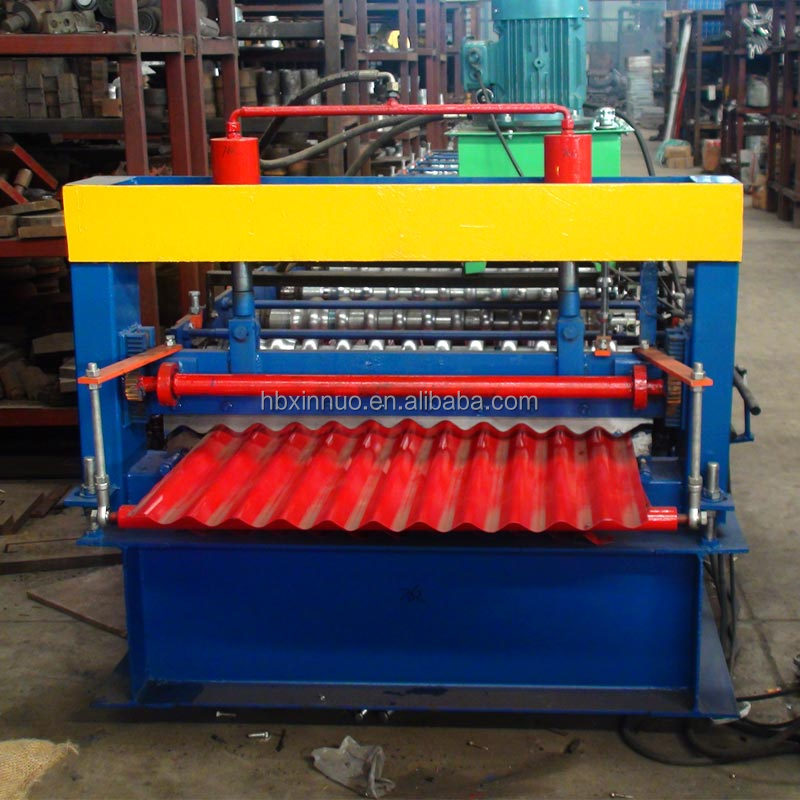

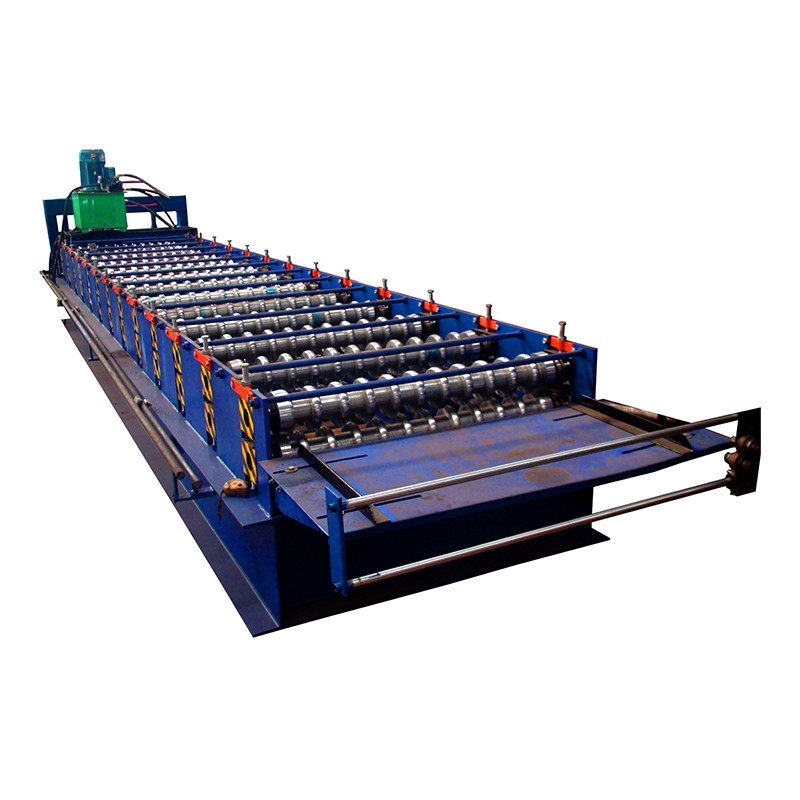

- 20 forming rows
- 80mm roller diameter
- Carbon Steel 45# material
- Cutting Mechanism

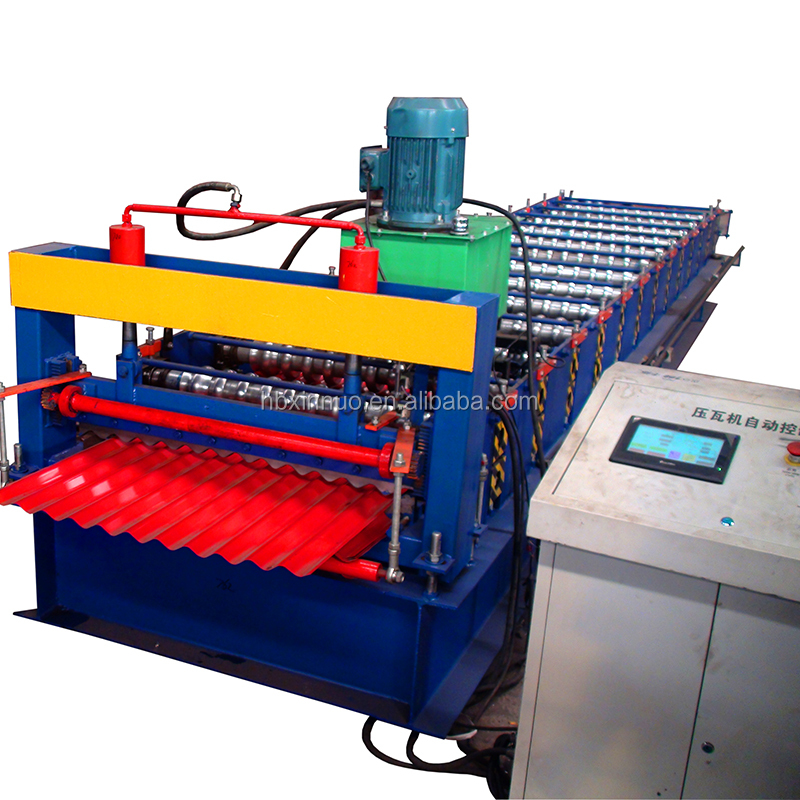

- Hydraulic mould cutting with Cr12 blade material
- De-coiler Capacity
- Manual, 5-ton load capacity
Power & Control
- Main Motor Power

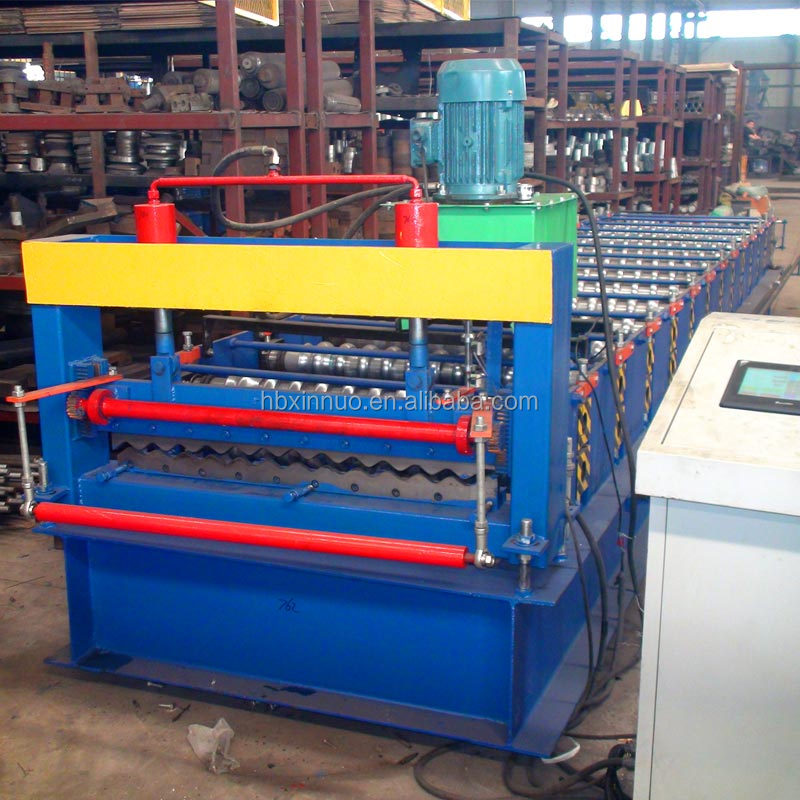

- 4 kw
- Hydraulic Cutting Power
- 3 kw
- Control System
- Delta PLC Control
- Operating Voltage
- 380V 50Hz 3-Phase (customizable)
Physical Dimensions
- Overall Dimensions
- 7.5m x 1.6m x 1.2m
- Total Weight
- Approximately 4.6 Tons
- Main Structure
- 300 H-steel with 14mm side panels
Compliance & Service
Certifications
CEISO
- Warranty
- 1 Year standard warranty
