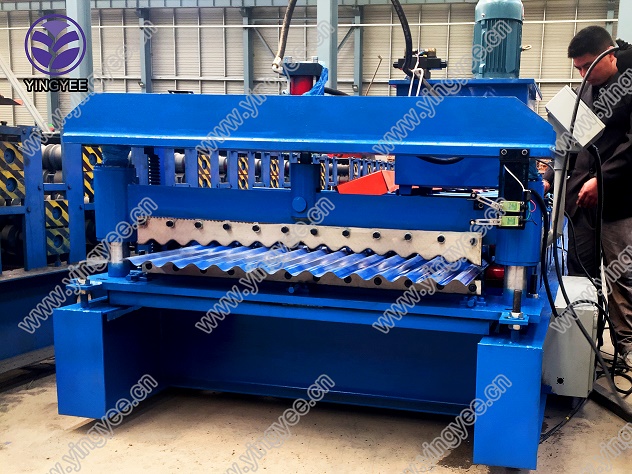

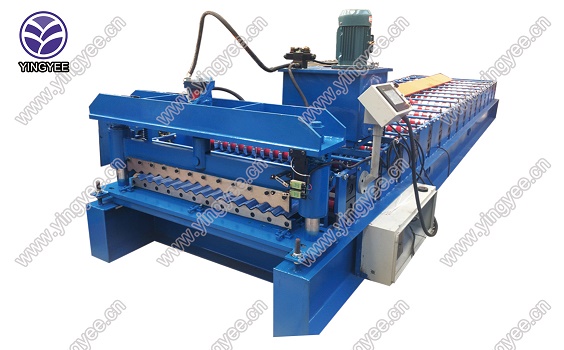

Corrugated Roofing Sheet Roll Forming Machine
This roll forming machine produces corrugated roof sheets at a speed of 15 meters per minute. It is equipped with a hydraulic cutting system.
Technical Specifications
Overview
High-Efficiency Corrugated Roofing Production

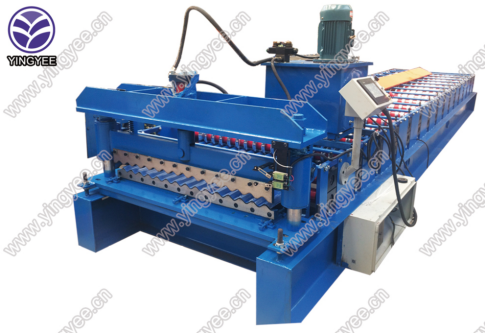

This roll forming machine is engineered for the high-volume production of corrugated metal sheets used in roofing and cladding applications. Featuring a robust steel frame and a precision-engineered 13-station rolling system, it delivers consistent profiles with a high forming speed of up to 30m/min. The integrated PLC control system and hydraulic cutting mechanism ensure automated, accurate operation for industrial, commercial, and residential building materials.
Performance Metrics
Key Performance Indicators
30 m/min
Max Forming Speed
5.5 kw
Motor Power
13 Stands
Roll Stations
5 tons
Total Weight
Material Specifications
- Compatible Materials
- PPGIGIAluminium
- Material Thickness Range
- 0.2 - 0.8 mm
Technical Details
Technical Parameters
| Parameter | Specification |
|---|---|
| Shaft Material | 45# steel |
| Shaft Diameter | 75mm |

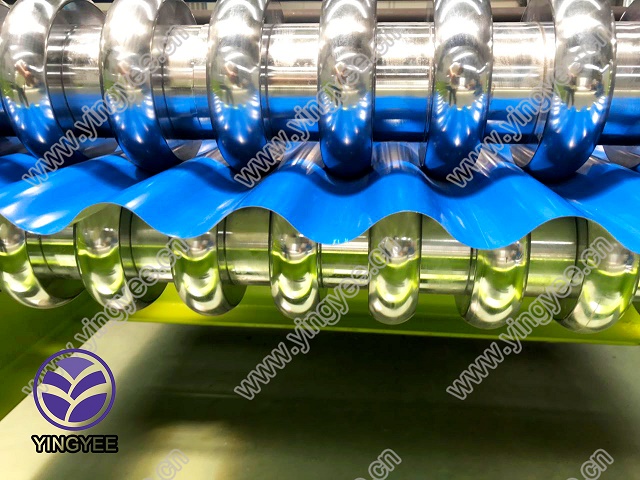

| Roller Material | 45# steel with heat treatment and chrome plating |
| Drive System | Chain driven |
| Cutting System | Hydraulic cutter |
| Control System | PLC |
| Tolerance | ±1.5mm per 10m |
System Components
Standard Components
- Manual De-coiler (1 set)
- Adjustable Input Leveling Equipment
- Main Roll Forming Machine with Chromed Plate
- Hydraulic Cutting System
- Hydraulic Station
- PLC Control System
Dimensions & Utility
- Machine Length
- 6.7 m
- Voltage
- Customizable based on client requirements
