Corrugated Roof Sheet Roll Forming Machine
This machine forms corrugated metal roofing sheets from 0.15mm GI material. It is designed to produce full hard corrugated sheets with consistent dimensions.
Technical Specifications
Overview

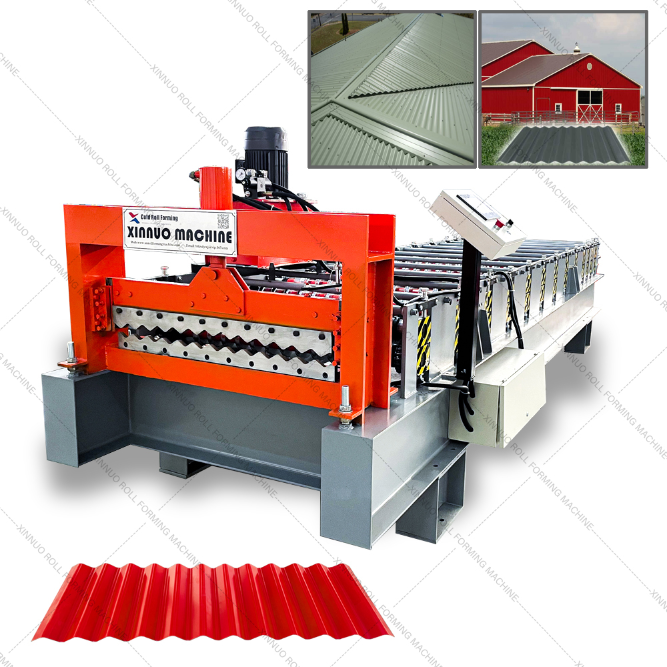

High-Efficiency Corrugated Roofing Production
This roll forming machine is engineered for the high-precision manufacturing of 0.15mm to 0.8mm GI corrugated metal roofing sheets. Designed for industrial-scale production, it features a robust H-beam frame and 14 forming stations to ensure consistent profile accuracy. With an automated PLC control system and a 10m/min forming speed, it provides a reliable solution for producing durable building materials for warehouses, workshops, and residential projects.
Performance Metrics
Key Performance Indicators
10 m/min
Forming Speed
14 Stands
Roll Stations
4 T
Total Weight
Technical Specifications
Material Compatibility
| Parameter | Value |
|---|---|
| Feeding Width | 1200mm |
| Feeding Thickness | 0.3-0.8mm |
| Forming Size | 988mm |
| Min. Material Thickness | 0.15mm |
- Power Supply
- 380V, 3-Phase, 50Hz
- Main Motor Power
- 3 kw
- Hydraulic Pump Power
- 3 kw

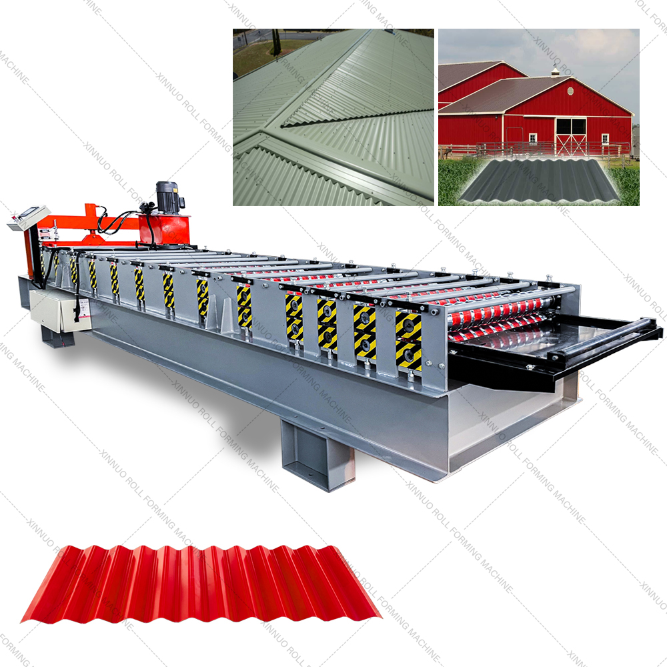

Machine Components
Included Components
- Manual Uncoiler
- Guiding Platform
- Coil Strip Leveler
- Main Roll Forming Machine
- Electro-Motor
- Hydraulic Cutting Device
- Hydraulic Station
- PLC Control System
- Supporter Table
- Control System Type
- PLC Delta Inverter
Build Quality
Material Standards
| Component | Material/Spec |
|---|---|
| Roller Material | Cr12 |
| Cutter Material | Cr12 |
| Roller Diameter | 80mm |
| Chrome Plating Thickness | 0.05mm |
| Chain Size | 20mm |
- Main Frame Construction
- 250mm H-Beam
Physical Dimensions
- Overall Machine Size
- 7500 × 1600 × 1500 mm
- Operating Hydraulic Pressure
- 10-12MPa
Compliance & Quality
- Certifications
- CESGSAlibaba Assessed
