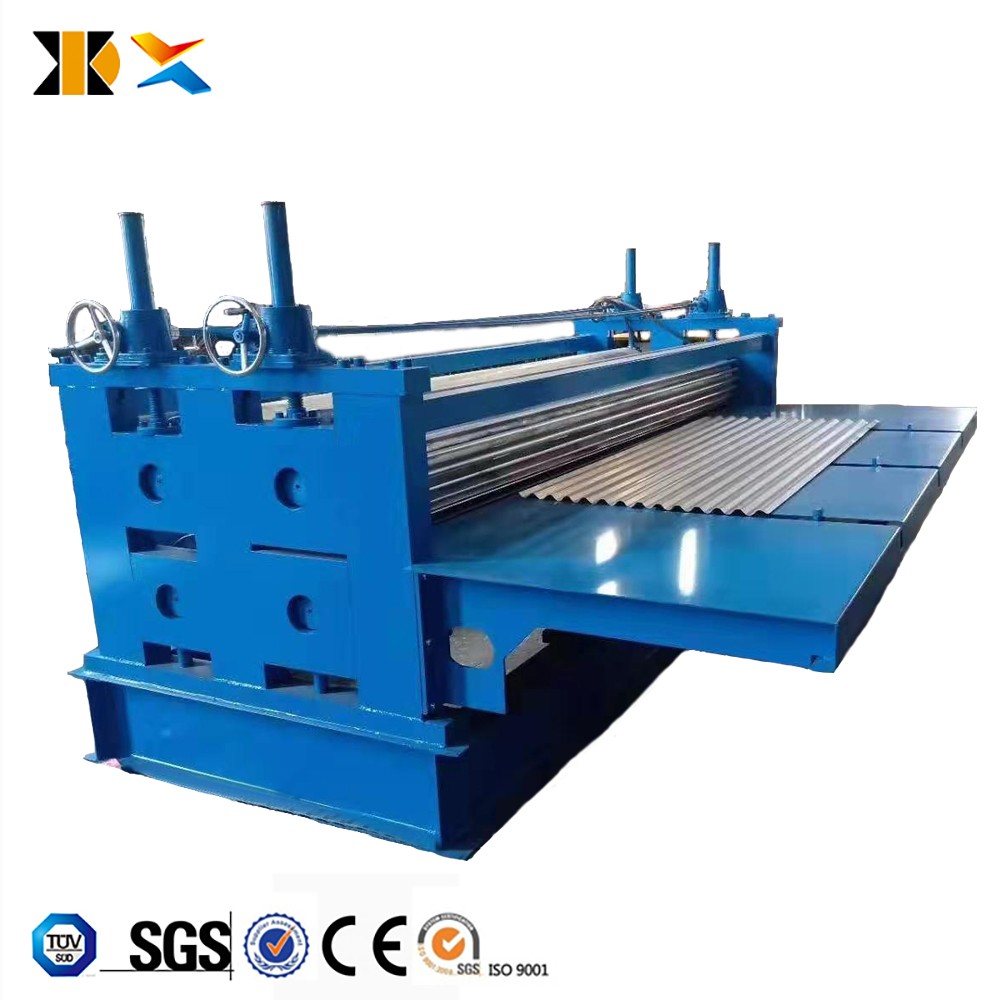

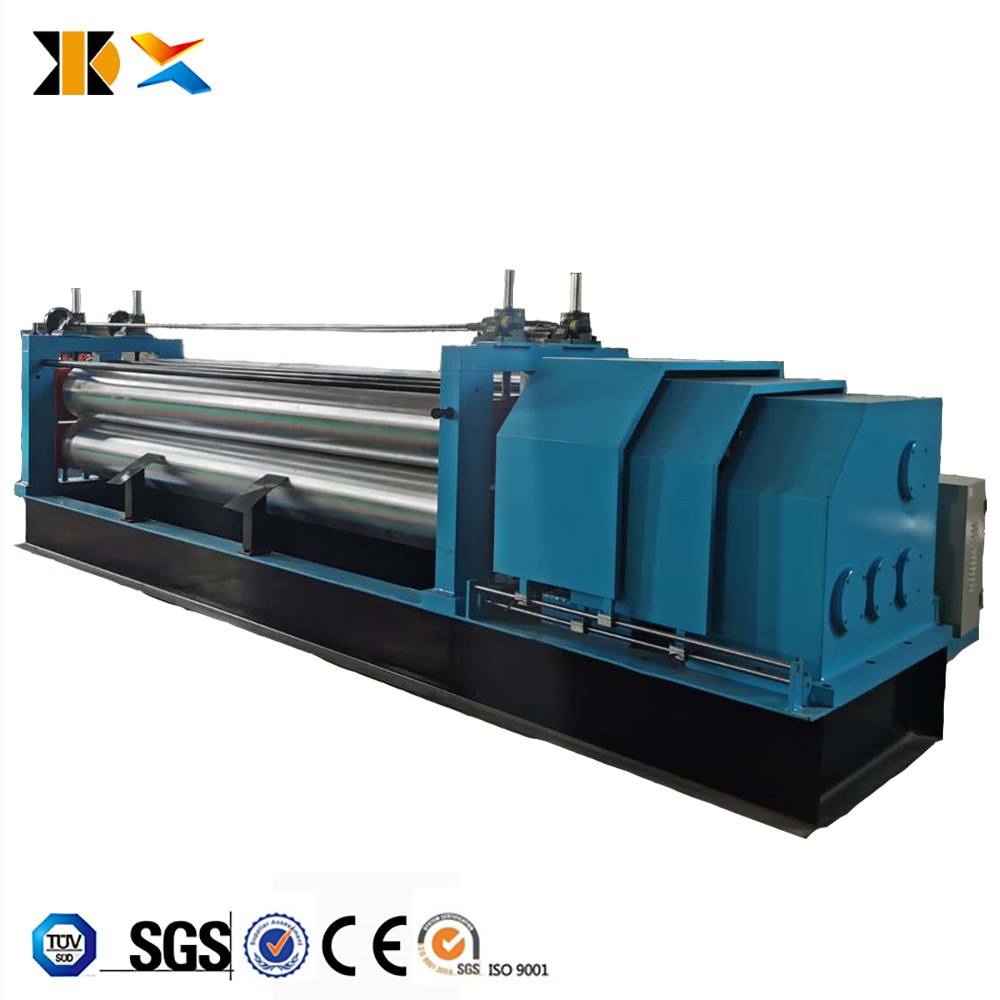

Corrugated Roof Sheet Forming Machine
This rolling mill forms metal sheets into barrel corrugated profiles for roofing. The machine ensures consistent quality and accurate corrugations.
Technical Specifications
Product Overview
High-Efficiency Barrel Corrugated Forming
This industrial-grade roll forming machine is specifically engineered for the high-volume production of barrel corrugated roof sheets. It features a robust construction with multiple forming stations to ensure precise profiles and consistent quality across every sheet. Designed for ease of operation and durability, it provides a reliable solution for manufacturing weather-resistant roofing materials for various construction needs.
Technical Specifications
- Feeding Material Thickness
- 0.12-0.3mm / 0.16-0.4mm
- Feeding Material Width
- 1000 mm
Performance Metrics
Performance Highlights
12 pcs/min
Max Productivity
4 T/hour
Max Capacity
- Productivity Speed
- 9-12 sheets/min
- Hourly Production Capacity
- 2-4 Tons/hour
Design & Construction
Key Design Features

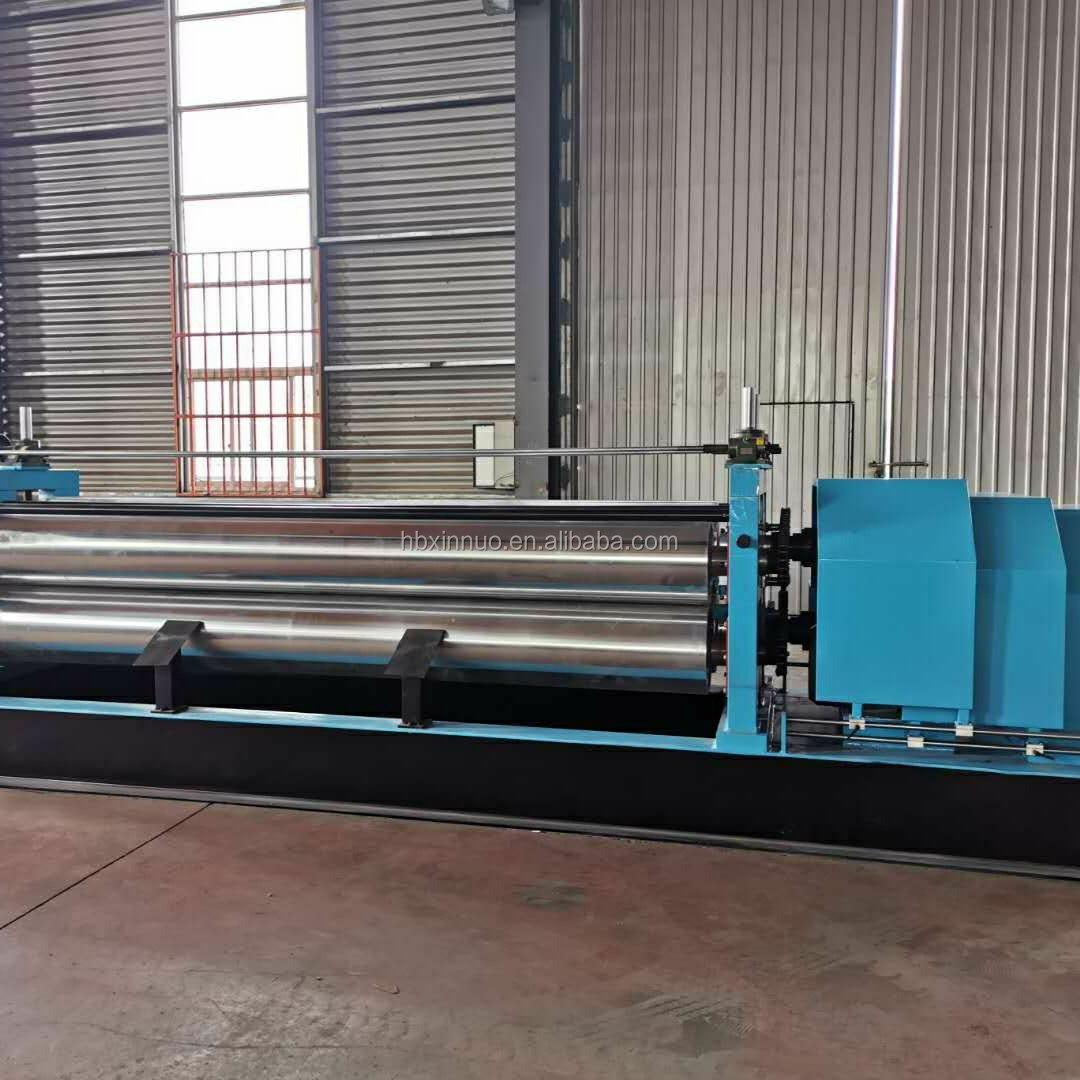

- Robust steel frame for high stability

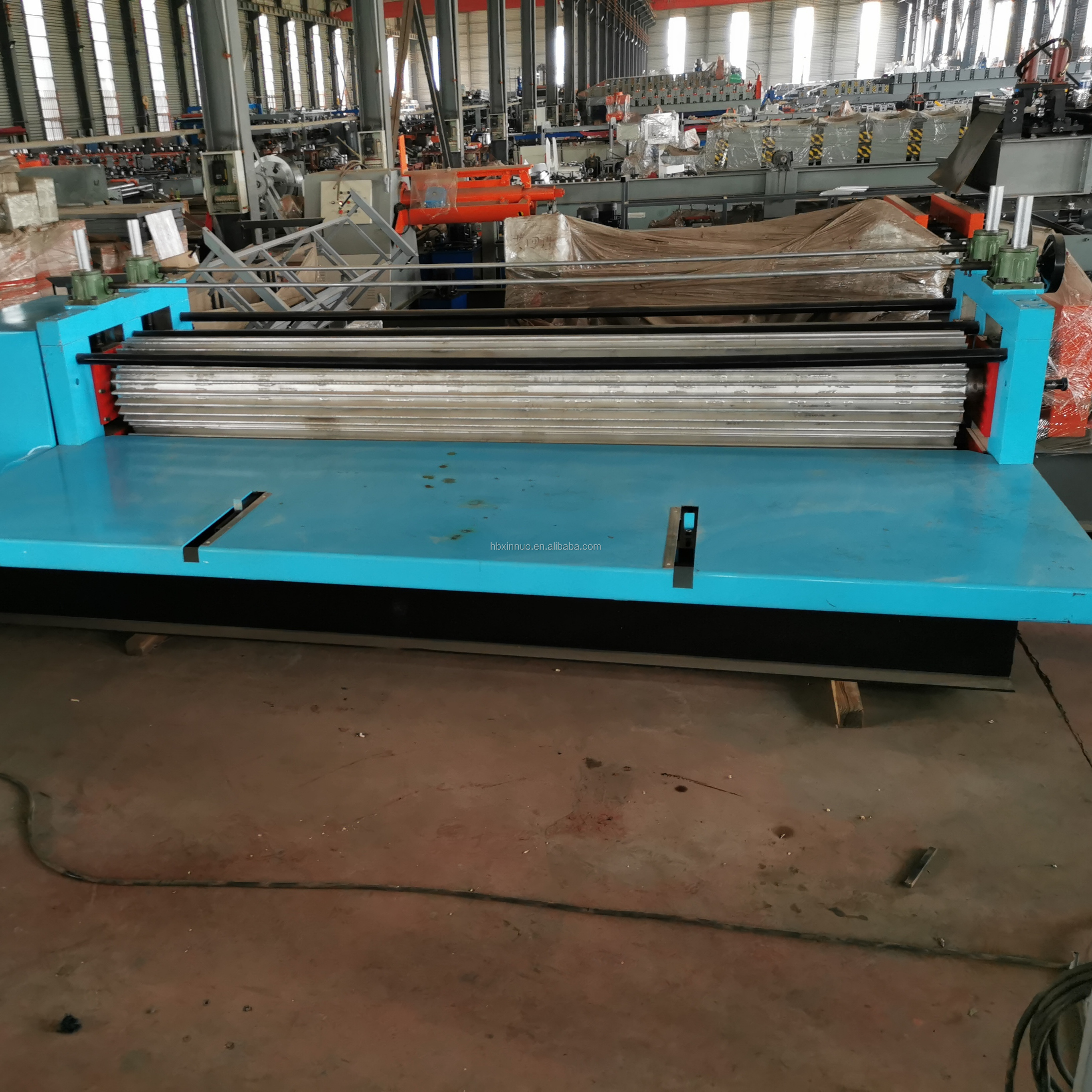

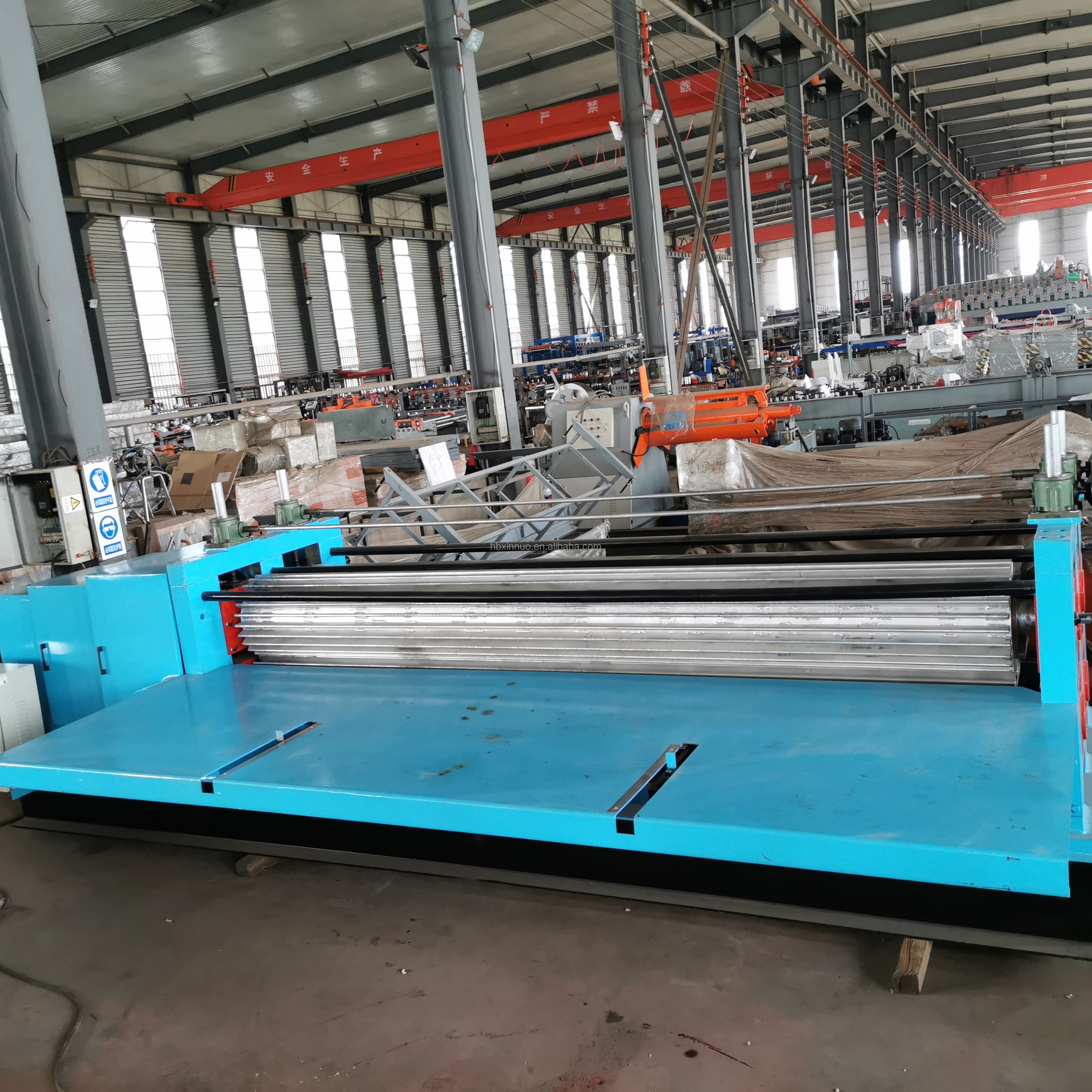

- Multiple polished forming rollers

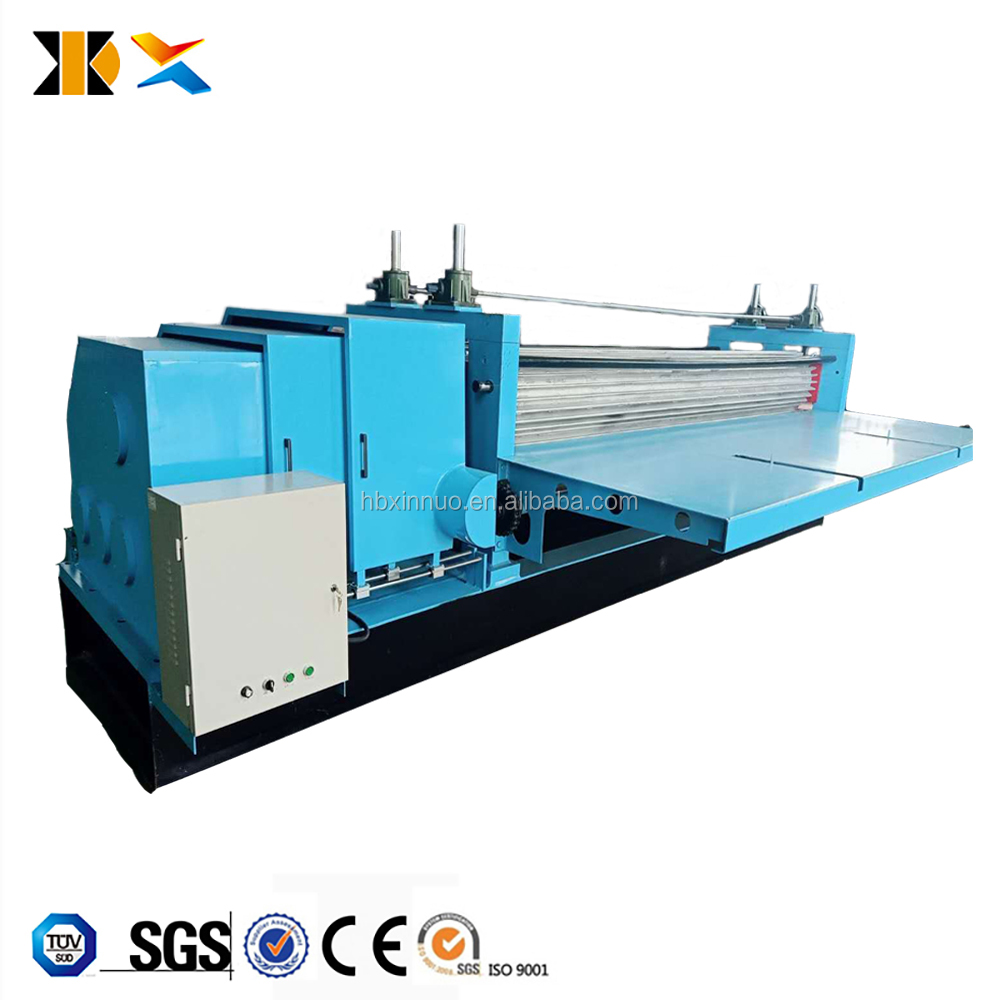

- Integrated electrical control system
- Manual handwheels for precision adjustments
- Extended support table for finished sheets
- Industrial-grade protective finish
Compliance & Quality
- Quality Certifications
- CETUVSGSISO 9001
Manufacturing Process
Machine Manufacturing Workflow
- Raw Material Preparation
- Precision Machining
- Base Plate Production
- Shot Blasting & Surface Cleaning
- Industrial Painting
- Final Assembly
- System Debugging
- Packing & Shipment
Service & Support
Support Services
- Customized profile design
- On-site repair services
- Professional technical consultation
- Customized sourcing services
- Warranty Period
- 1 Year
