Corrugated Metal Roofing Sheet Roll Forming Machine, 1250mm Max Width
This roll forming machine produces corrugated galvanized steel sheets. It is designed for roofing applications with a maximum forming width of 1250mm.
Technical Specifications
Overview
High-Efficiency Roofing Solution
This corrugated metal roofing sheet roll forming machine is engineered for high-volume production of pre-painted and galvanized steel sheets. Designed with a 1250mm maximum width capacity, it features robust construction and precise forming rollers to ensure consistent quality in every profile. The system is equipped with an intuitive PLC-based control interface, offering remote control capabilities and easy operation for industrial roofing applications.
Technical Specifications
- Material Compatibility
- Pre-painted steel coilGalvanized steel coil
- Max Forming Speed
- 15 m/min
- Thickness Range
- 0.3-0.7mm
- Yield Stress
- Q235-345 Mpa
Mechanical Components
Motor Power
4 KW
Main Motor
3 KW
Hydraulic Station
- Roller Specifications

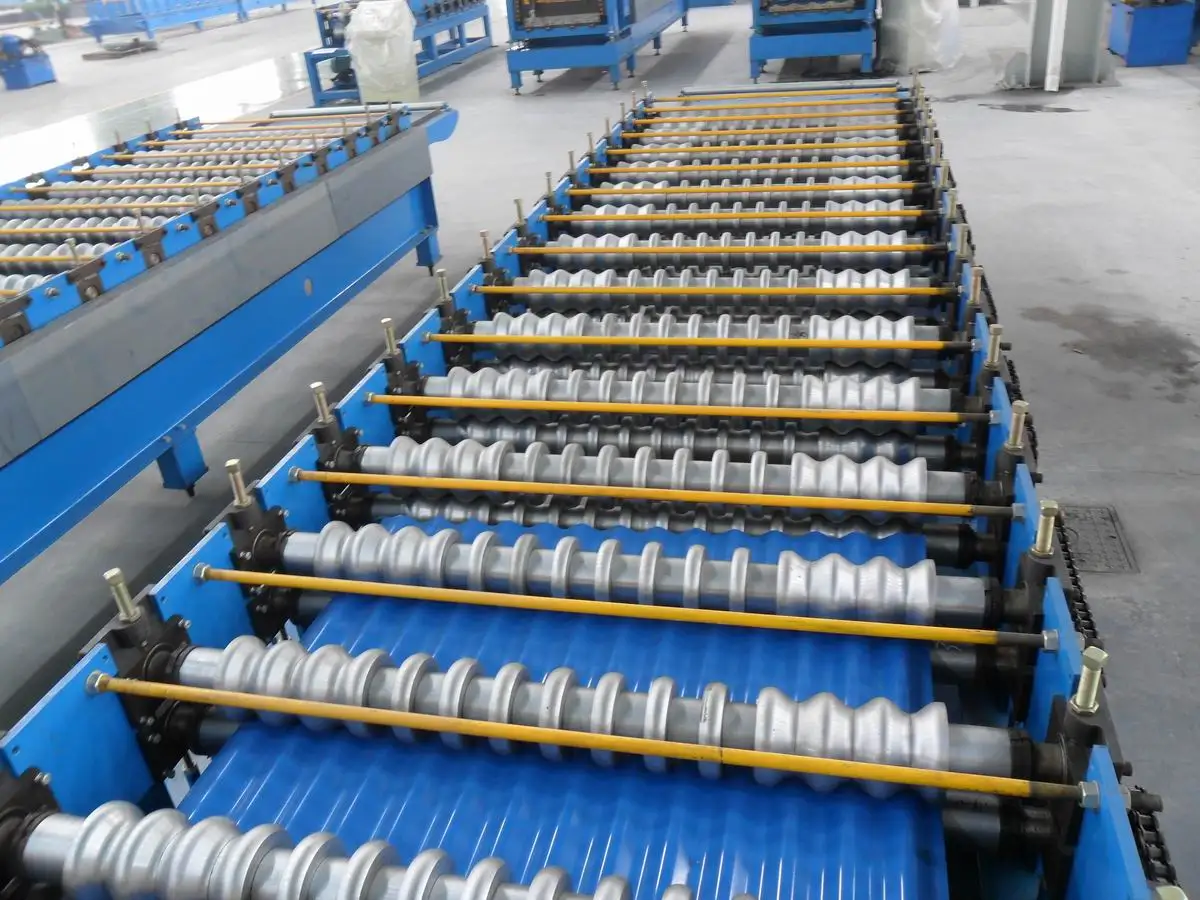

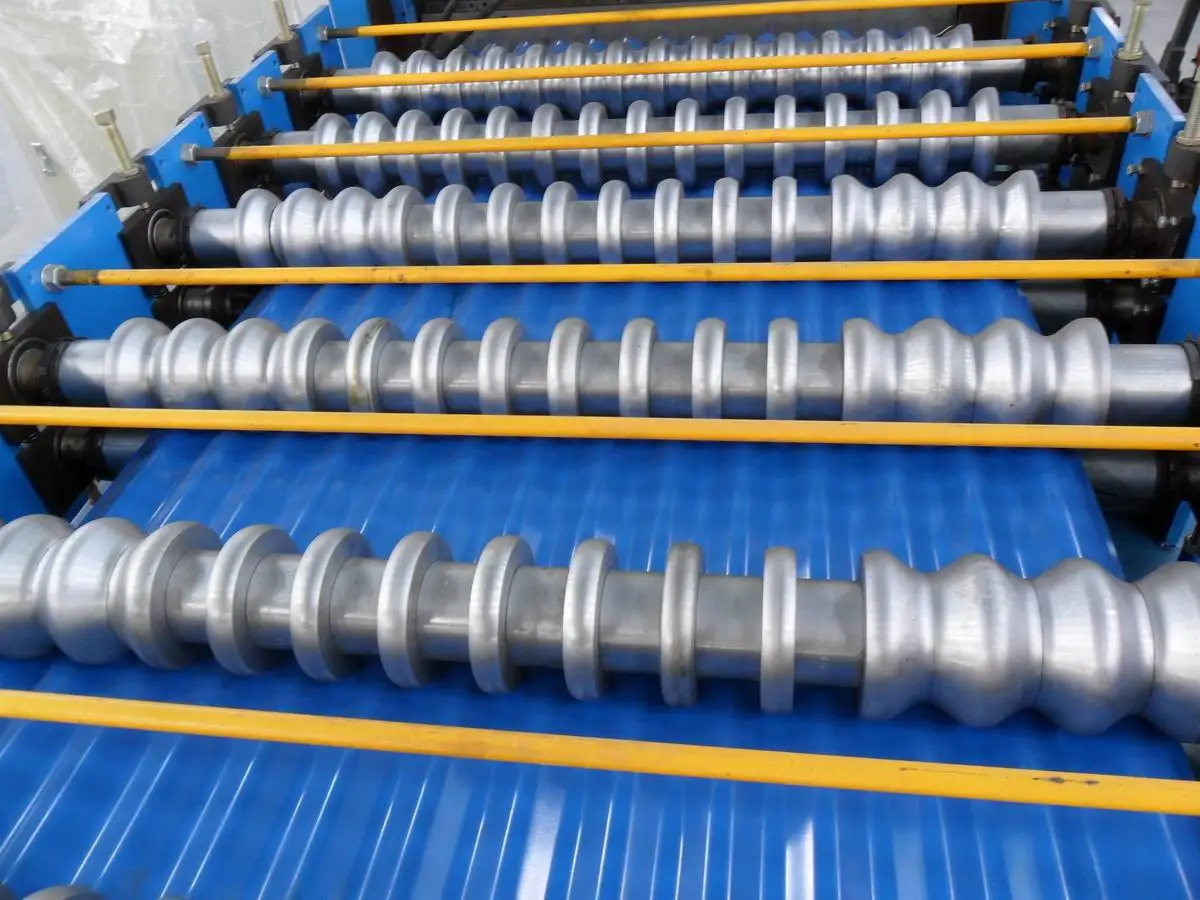

- #45 steel with hard chrome treatment
- Drive Type
- Chain transmission

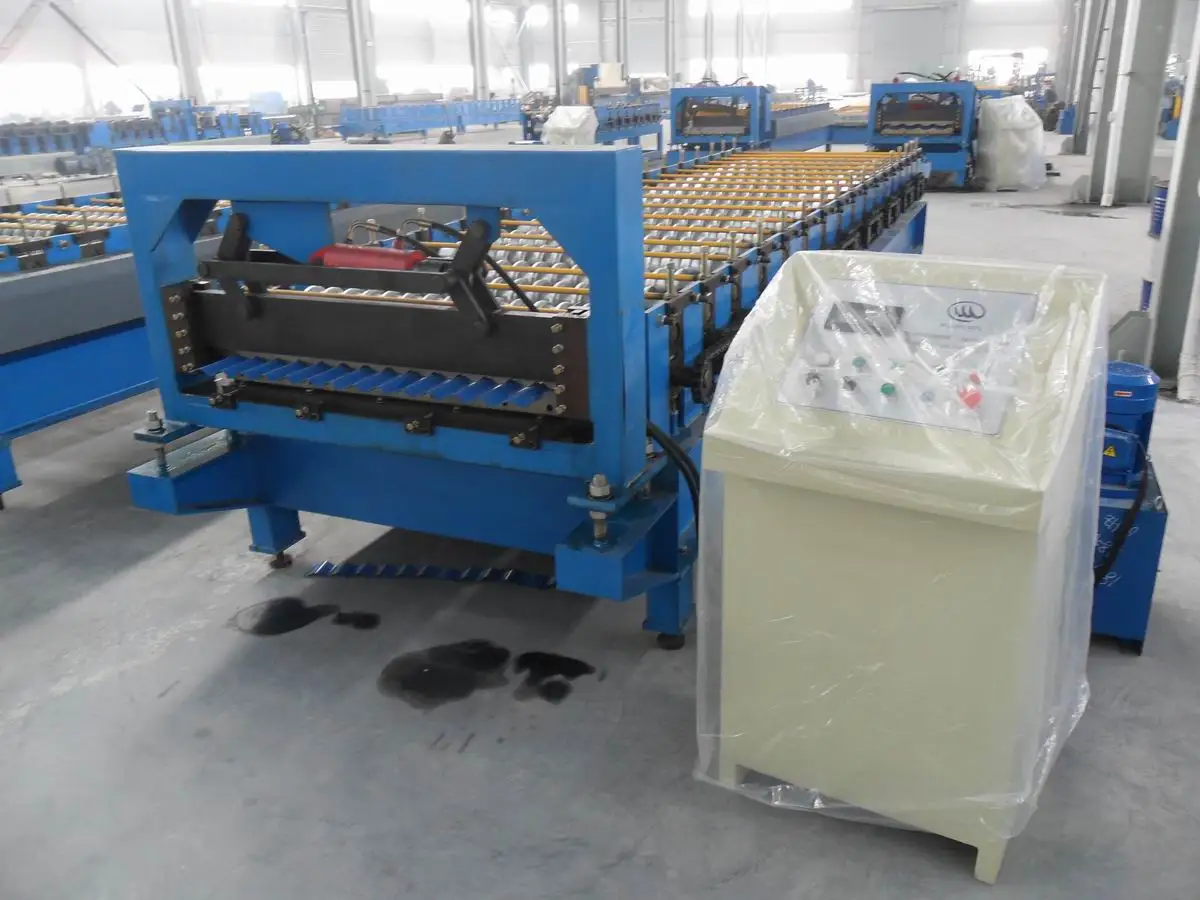

Control & Operation
Control Interface
- PLC Controller
- Touch screen
- Remote control
- Physical button controls
Dimensions & Logistics
- Dimensions (L*W*H)
- 8500 * 1500 * 1500 mm
- Total Weight
- 6000 kg
