Corrugated and Standing Seam Metal Roofing Sheet Forming Machine
This machine is designed for forming corrugated and standing seam metal roofing sheets. It ensures efficient and precise production of high-quality roofing materials.
Technical Specifications
Product Overview

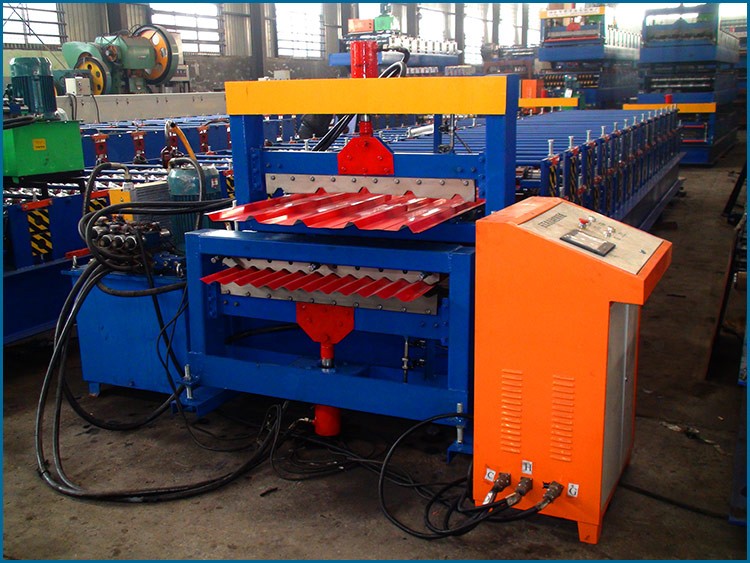

High-Efficiency Double Layer Roll Forming
This industrial-grade machine is designed for the high-volume production of both corrugated sheets and standing seam metal roofing. By integrating two forming processes into a single unit, it maximizes production efficiency while significantly reducing the required floor space in your facility. It is an ideal solution for manufacturing durable, weather-resistant roofing panels for residential, commercial, and industrial applications.
Performance Metrics
Key Performance Metrics
12 m/min
Max Productivity
5 T
Uncoiler Capacity
5.5 kW
Main Motor Power
Material Specifications
- Compatible Materials
- Color Steel PlateGalvanized SheetAluminum Coils
- Feeding Material Thickness
- 0.3 - 0.8 mm
- Feeding Material Width
- 914 - 1250 mm
Technical Systems

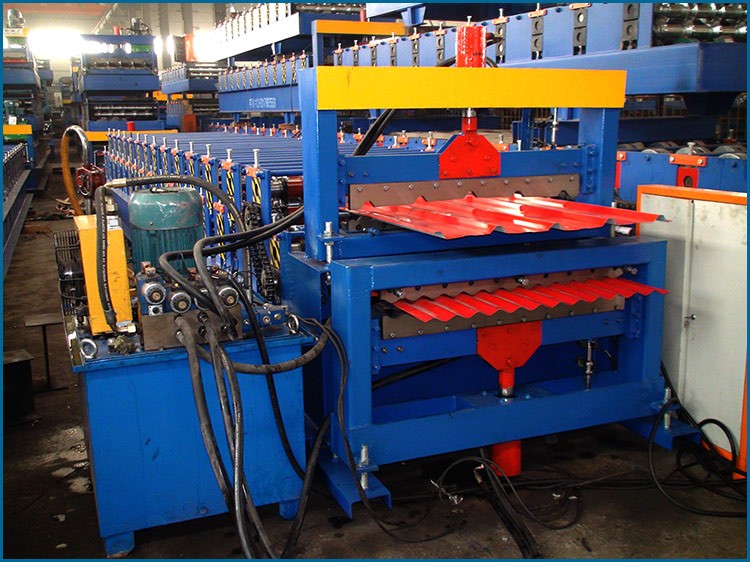

Roller System Details
- Material: High grade No. 45 forged steel
- Roller Stations: 11-18 rows (customizable)
- Shaft Diameter: 70-80 mm
Cutting System
- Blade Material: Cr12Mov with quenched treatment
- Drive: Hydraulic drive
- Control: PLC computer controlled for precise dimensions
Control Cabinet
- Modes: Automatic and Manual
- Features: Programmable length and quantity settings
- Supported Languages: English, Chinese, Spanish, Russian
Hydraulic System
| Parameter | Specification |
|---|---|
| Power | 4 kW |
| Oil Type | 46# Hydraulic Oil |
| Working Pressure | 12-16 Mpa (Adjustable) |
Manufacturing Process
Production Workflow
- Raw Material Preparation & Machining
- Base Plate Production
- Shot Blasting & Painting
- Assembly & Debugging
- Packing & Shipment
Compliance & Support
Quality Compliance
CEISO 9001IAF
- Warranty
- 1 Year
