Concrete Box Girder Straddle Carrier
The Concrete Box Girder Straddle Carrier transports concrete box girders of various sizes. It loads concrete girders onto girder carriers for bridge construction.
Technical Specifications
Overview
MDEL Series Straddle Carrier

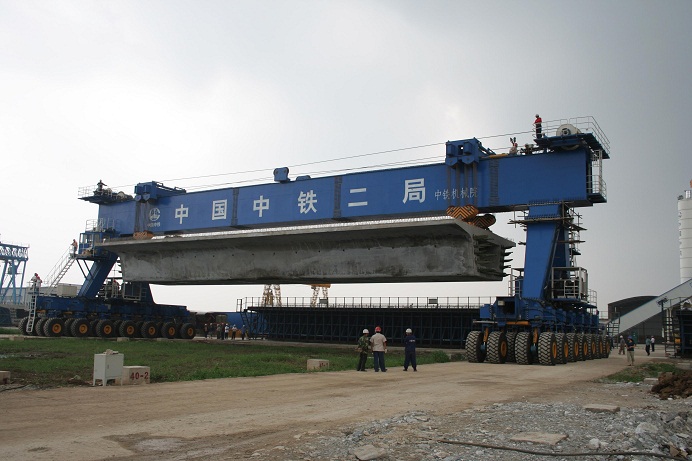

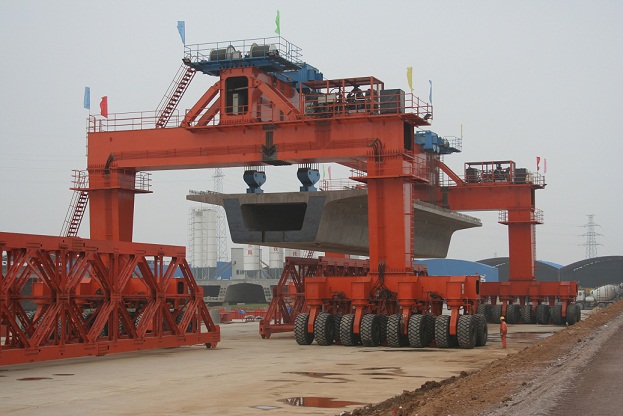

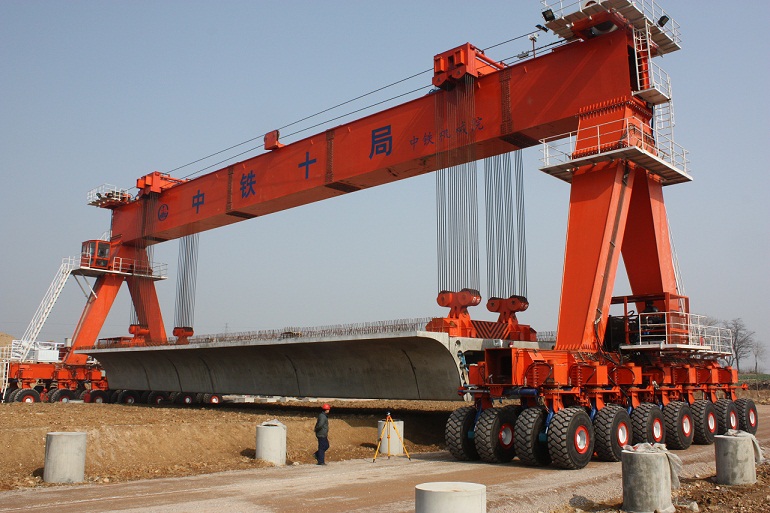

The MDEL Series Straddle Carrier is a specialized heavy-duty machine engineered for the efficient transport and placement of pre-fabricated concrete box girders in rail transit and bridge engineering projects. Designed for versatility, this carrier supports the movement of 20m, 24m, and 32m girders from casting sites to installation points. Its robust frame and advanced multi-wheel system ensure stability, precision, and safety when handling substantial structural loads.
Technical Specifications
Compatible Girder Lengths
- 20m
- 24m
- 32m
- Key Design Features
- Single Main GirderDouble Door DesignMulti-Axle SystemAll-Wheel DriveSynchronized Lifting Control
Performance
Primary Application
Rail Transit EngineeringBridge ConstructionViaduct ConstructionPrecast Segment Handling
