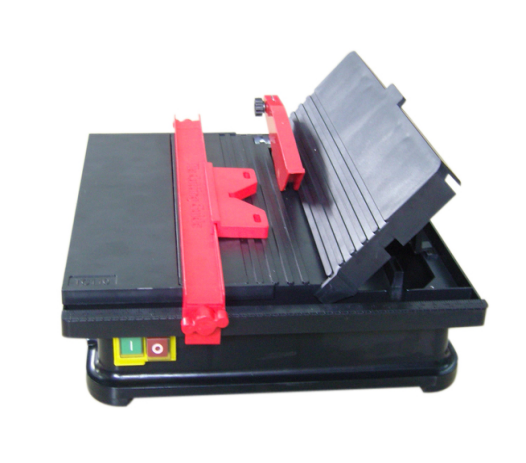

Compact Tile Cutting Saw
This compact tile cutting saw is designed for cutting ceramic, porcelain, and mosaic tiles. It features a continuous rim diamond blade, adjustable rip fence, and miter gauge for accurate and smooth cuts.
Technical Specifications
Overview
Professional Compact Tile Cutting Solution
The T180 is a versatile electric table tile cutter designed for precision work on ceramic, porcelain, and mosaic tiles. It features a high-torque motor and an integrated water recirculation system that ensures cool blade operation and dust-free cutting environments. With its adjustable table and rip fence, this saw provides professional-grade accuracy for both straight and angled cuts in small to medium-sized projects.
Performance Metrics
Key Performance Indicators
600 W
Input Power
2,950 RPM
No-load Speed
34 mm
Max Cut Depth
Technical Specifications
Protection Degree
IP20
- Operating Voltage
- 230V / 50Hz
Cutting Capabilities
- Blade Size
- φ180 x φ22.2 x 2.2 mm
- Table Tiling Range
- 0° - 45°
- Cutting Depth at 90°
- 34 mm
Features & Construction
Standard Features
- Continuous rim diamond blade for chip-free cuts
- Adjustable rip fence for straight accuracy
- Miter gauge for precise angle cuts
- Integrated water cooling system
- Durable plastic base with stable work surface
- Safety blade guard and marked power switch
Power Ratings
Input Power Ratings
| Duration | Power Output |
|---|---|
| 230 min | 450W / 600W |
| 10 min | 800W |
Applications
- Compatible Materials
- CeramicPorcelainMosaic
