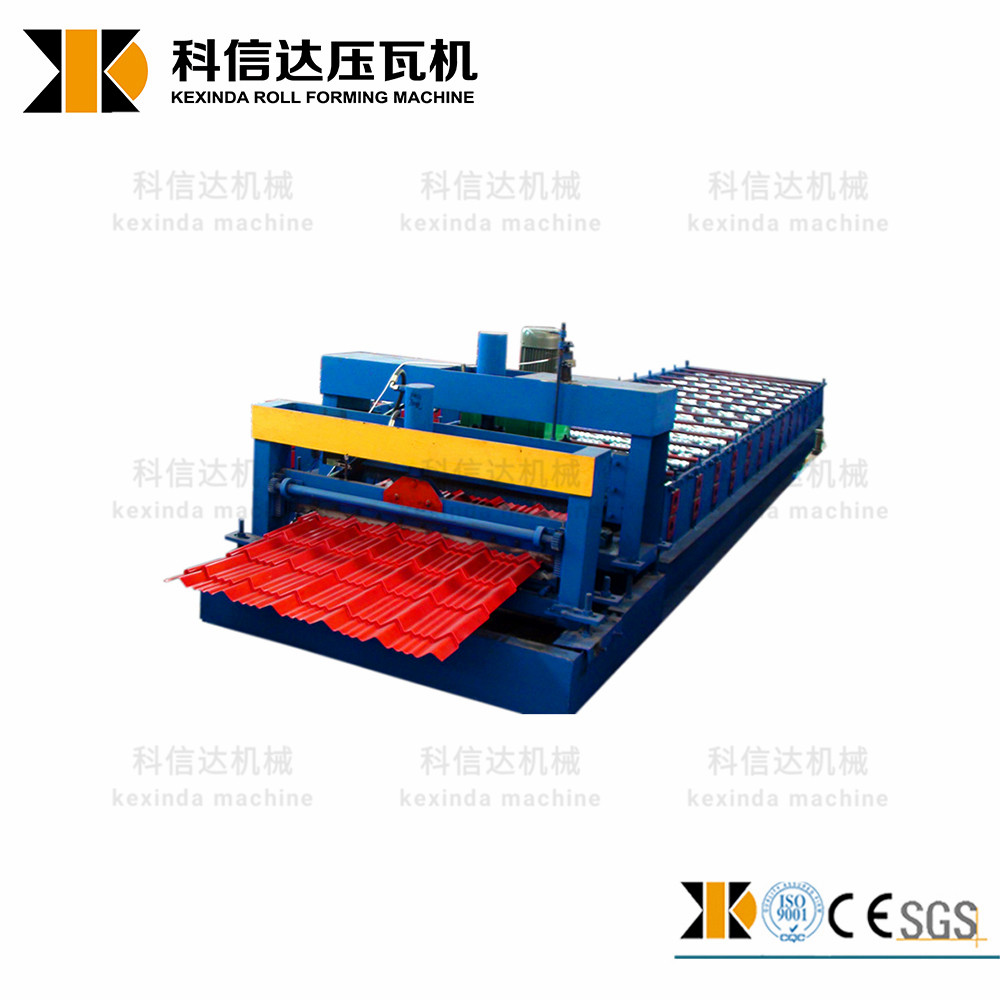

Color Glazed Roof Tile Forming Machine
This machine is designed for manufacturing color glazed roof tiles. It utilizes a cold roll forming process to shape metal sheets into the desired tile profile.
Technical Specifications
Overview
High-Efficiency Color Glazed Tile Production
The 828 Color Glazed Roof Tile Forming Machine is a specialized cold roll forming solution designed to produce high-quality, aesthetically pleasing roofing panels with a bright finish. Engineered for durability and precision, this machine utilizes a multi-station forming process to shape metal sheets into consistent tile profiles while minimizing material stress. It is an ideal solution for high-volume production in the construction industry, catering to projects ranging from modern villas and hotels to industrial factories and resorts.
Technical Specifications
Forming Process
Cold Roll FormingAutomated CuttingHydraulic Punching
- Model Type
- 828 Color Glazed Roof Tile Roll Forming Machine

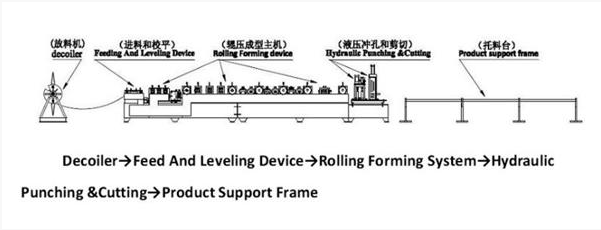

Production Workflow
Operational Sequence
- Decoiling the sheet
- Sheet guiding
- Roll forming
- Length measurement
- Panel cutting
- Output to support frame
System Components
Core Modules
| Component | Function |
|---|---|
| Decoiler | Unwinding the metal coil |
| Feeding & Leveling Device | Ensuring material flatness before forming |
| Rolling Forming System | Progressive shaping via multiple stations |
| Hydraulic Punching & Cutting | Precise dimensioning and profile finishing |
| Product Support Frame | Collection and handling of finished tiles |
Applications
- Applicable Use Cases
- GardensFactoriesResortsHotelsExhibition HallsModern VillasAncient Architectures
Logistics & Installation

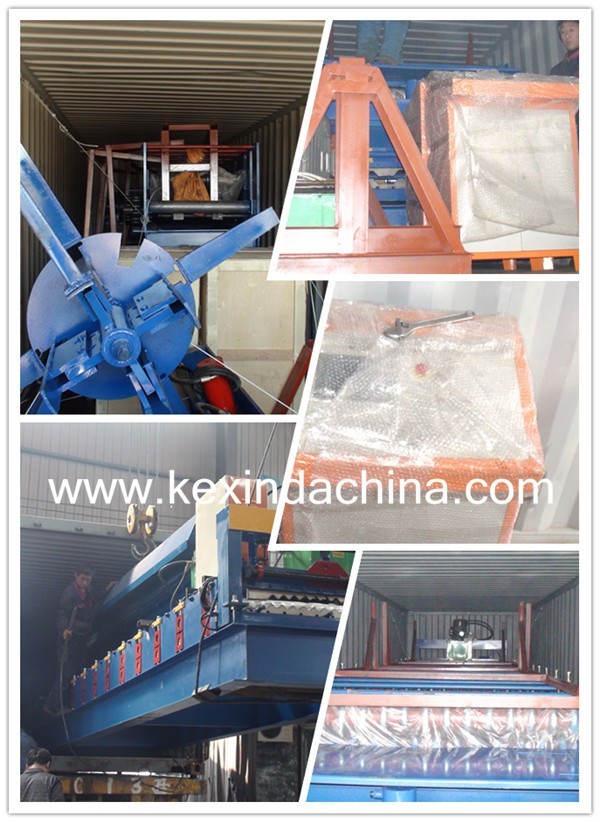

Packaging & Delivery
- Main machine shipped nude in container
- Computer control box secured in wooden packaging
- Standard delivery time: 30 workdays
- Advance Payment
- 30 %
