CO2 Laser Cutting and Engraving Machine for Non-Metals
This laser machine is designed for processing non-metal materials. It features a robust construction, advanced control system, and user-friendly interface.
Technical Specifications
Overview
High-Efficiency CO2 Laser System
This CO2 laser cutting and engraving machine is engineered for high-precision processing of non-metal materials. It features an improved moving system and a separated design for easier transport and installation, helping to reduce labor costs and improve operational efficiency. With a robust 1300x900mm working area, it is an ideal solution for industries ranging from furniture and signage to crafts and prototyping.

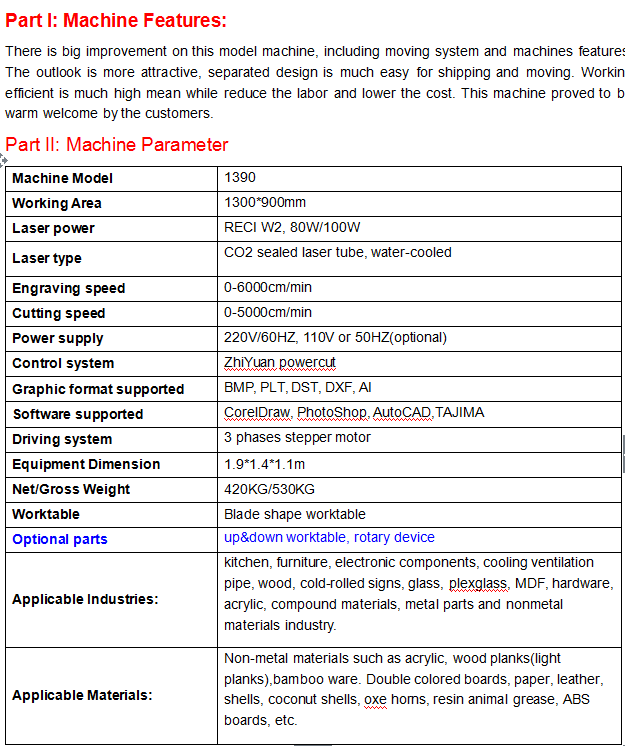

Technical Specifications
- Model
- 1390
- Working Area
- 1300 x 900 mm
- Laser Type
- CO2 sealed laser tube (water-cooled)
- Laser Power
- 80W / 100W (RECI W2)
Performance Metrics
Performance Speeds
6,000 cm/min
Engraving Speed
5,000 cm/min
Cutting Speed
Physical Properties
Weight
| Type | Weight |
|---|---|
| Net Weight | 420 KG |
| Gross Weight | 530 KG |
- Equipment Dimensions
- 1.9 x 1.4 x 1.1 m
Compatibility
- Graphic Formats
- BMPPLTDSTDXFAI
- Compatible Software
- CorelDrawPhotoShopAutoCADTAJIMA
Applications
Compatible Materials
- Acrylic
- Wood planks
- Bamboo ware
- Double colored boards
- Paper
- Leather
- Shells
- Coconut shells
- Oxe horns
- Resin animal grease
- ABS boards
Certifications
Compliance
CEUDEM
