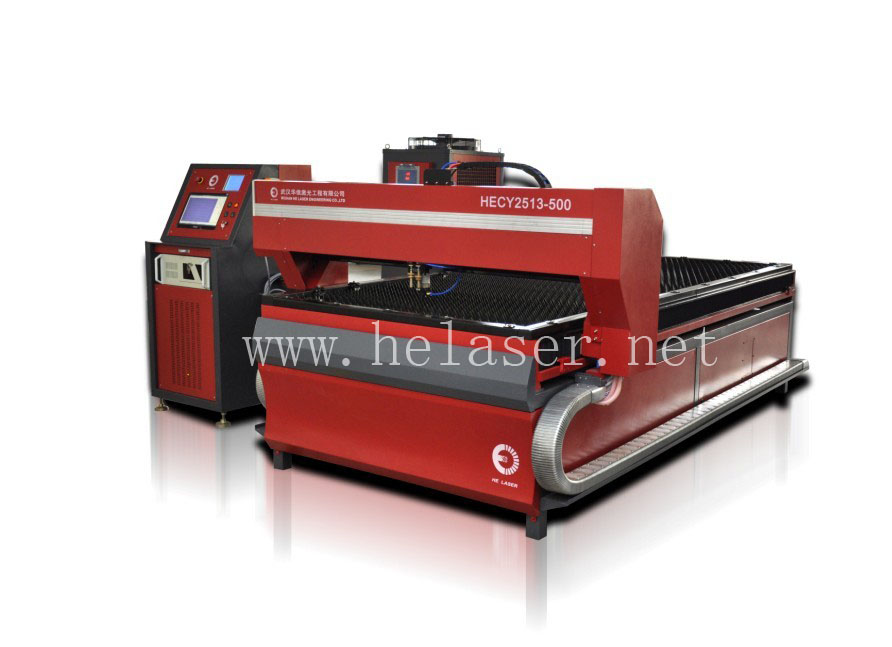

CNC YAG Laser Metal Cutting Machine
This CNC machine utilizes a YAG laser to precisely cut metal sheets. It can process materials up to 6mm thick with a maximum cutting speed of 8m/min.
Technical Specifications
Overview
Industrial Precision Cutting Solution
This CNC YAG laser cutting machine integrates advanced optical, mechanical, and electrical technologies to deliver high-efficiency metal processing. Designed for versatility, it handles a wide range of materials including stainless steel, carbon steel, and aluminum up to 6mm thick. With its robust gantry structure and high-performance CNC control, it ensures smooth cutting surfaces, minimal heat-affected zones, and high-speed production for industrial applications.
Key Performance Metrics
Performance Highlights
500 W
Output Power
10 m/min
Max Cutting Speed
6 mm
Max Cutting Thickness
Technical Specifications
Technical Data
| Parameter | Value |
|---|---|
| Laser Medium | Nd: YAG |
| Wavelength | 1064nm |
| Working Power | 380V/50HZ/50A |
| Cutting Area | 2500mm x 1250mm |
| Cooling Method | Water cooling |
| Pulse Frequency | 0-500Hz |
| Min Line Width | ≤0.12mm |
Operational Capabilities
Typical Industries
- Sheet-metal structure
- Electrical cabinet production
- Hardware manufacturing
- Advertising signs
- Metal crafts
- Aviation
- Mechanical parts
- Compatible Materials
- Stainless SteelCarbon SteelAlloy SteelSpring SteelAluminumSilverCopperTitanium
- Continuous Operation
- 24 hours
