Technical Specifications
Product Overview
Industrial Precision Laser Cutting

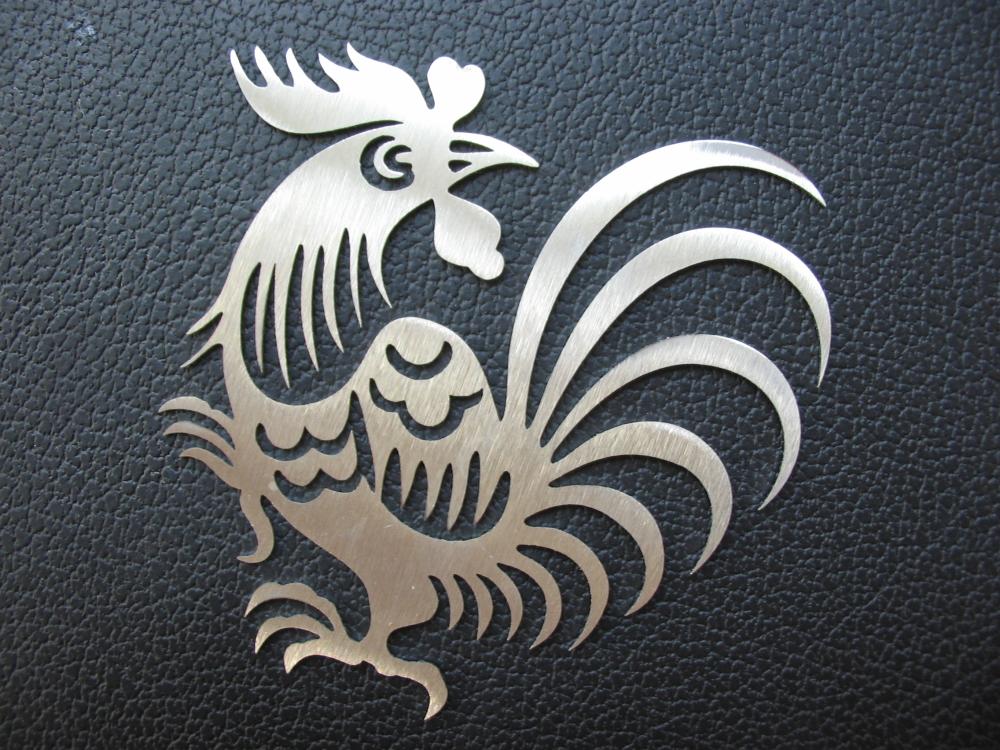

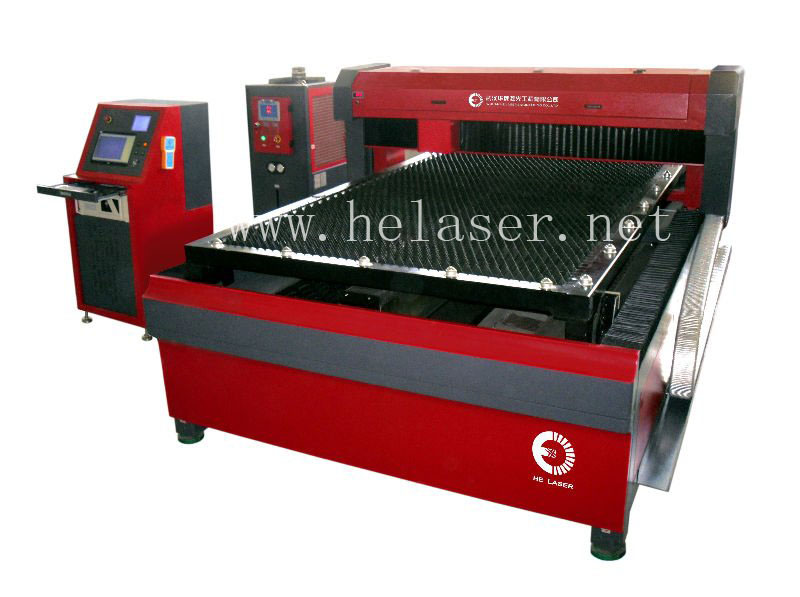

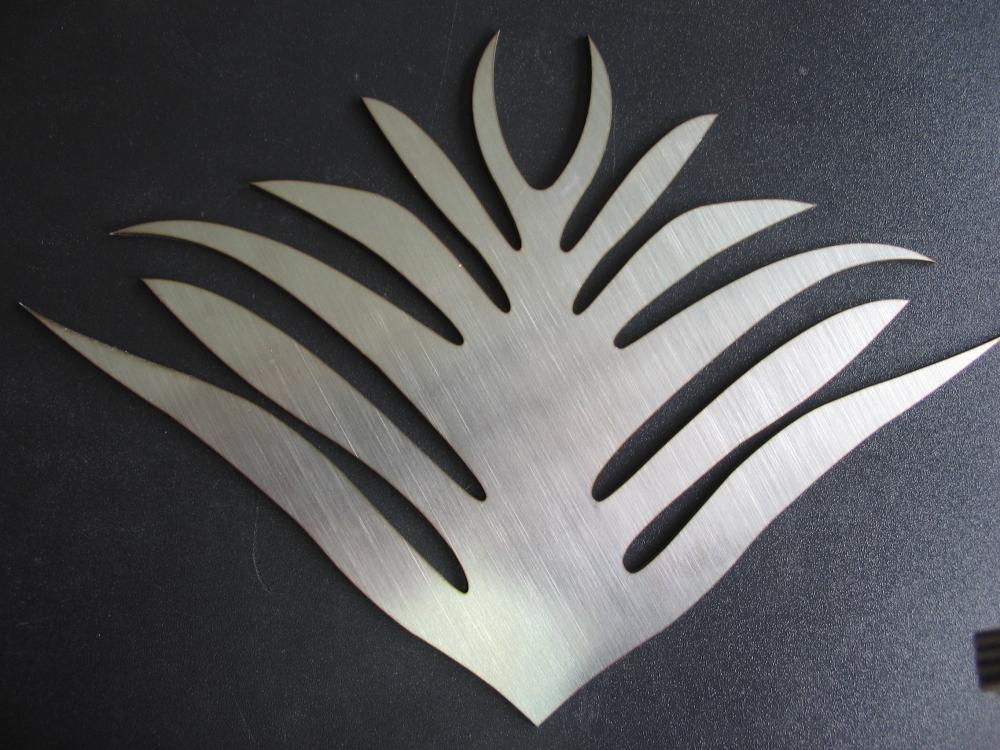

This CNC YAG 500W laser cutting machine integrates advanced optical, mechanical, and computer control technologies to deliver high-precision metal fabrication. Designed for continuous 24-hour operation, it offers a robust solution for cutting various metals including stainless steel, aluminum, copper, and titanium. With its efficient CNC control system and high-speed processing capabilities, this machine is an ideal choice for industries ranging from sheet-metal manufacturing and electrical cabinet production to decorative metal crafts.
Performance Metrics
Key Performance Indicators
500 W
Laser Power
8 m/min
Max Cutting Speed
6 mm
Max Cutting Thickness
Technical Specifications
Machine Specifications
| Parameter | Value |
|---|---|
| Laser Medium | Nd: YAG500 |
| Laser Wavelength | 1064nm |
| Cutting Area | 3000mm x 1500mm |
| Cooling Method | Water cooling |
| Repeat Pulse Frequency | 0-500Hz |
| Min Line Width | ≤0.12mm |
| Machine Weight | 3000kg |
Compatibility & Materials
Supported File Formats
- NC Documents
- DXF
- PLT
- AI
- Compatible Materials
- Stainless SteelCarbon SteelAlloy SteelSpring SteelAluminumSilverCopperTitanium
Electrical & Dimensions
- Power Supply
- 380V/50HZ/50A
- Machine Dimensions
- 4270mm x 2480mm x 1400mm
