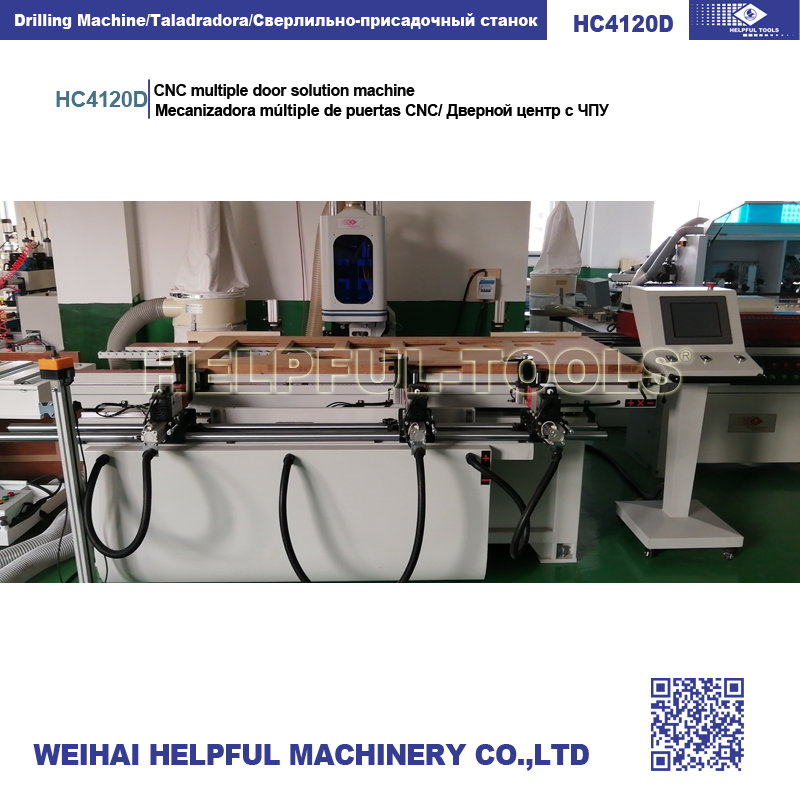

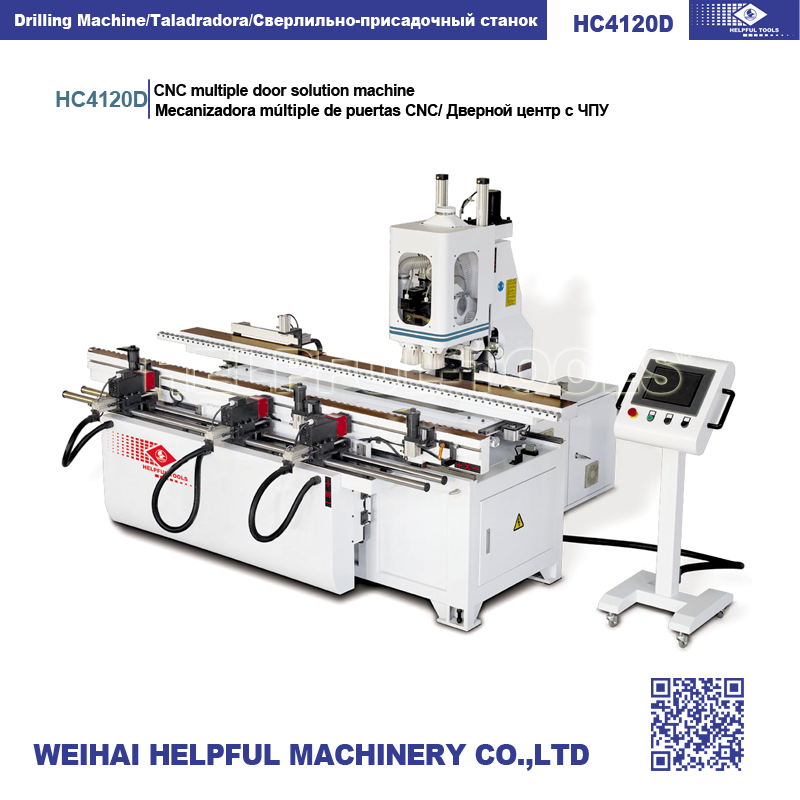

CNC Multiple Door Drilling and Mortising Machine
This CNC machine is designed for drilling and mortising multiple doors simultaneously. It provides efficient and precise machining for high-volume door production.
Technical Specifications
Overview
High-Efficiency CNC Door Processing
The HC4120D is a professional-grade CNC solution designed for high-precision drilling and mortising of multiple doors. It streamlines production by automating complex tasks such as hinge slotting, lock hole drilling, and sidestep operations. This robust machine is ideal for large-scale door manufacturing, ensuring consistent quality and significantly increased productivity through its advanced CNC control system.
Key Features
- Automation Features
- Auto Tool SettingAuto Thickness MeasurementAuto Width MeasurementAuto LubricationCNC Precision
Technical Performance
Spindle Speed
12,000 RPM
Spindle Speed
Motor Power Configuration
| Component | Power Output |
|---|---|
| Lock-slot Motor | 3.7 kw |
| Lock-hole Motor | 1.5 kw * 2 |
| Hinge-slot Motor | 0.4 kw * 3 |
| Lock-sidestep Motor | 0.4 kw |
Workpiece Capacity
- Max Working Length
- 2400 mm
- Processable Door Width
- 600 - 1100 mm
- Max Working Thickness
- 60 mm
Mechanical Details
Chuck Diameters
- ER32 (16mm for lock slot)
- ER20 (13mm for other operations)
- Max Worktable Stroke
- 400 mm
Physical Dimensions
- Machine Weight
- 1900 kg
- Overall Dimensions
- 2740 x 2270 x 1620 mm
Processing Capabilities
Supported Operations
Hinge DrillingLock SlottingLock Hole DrillingSidestep ProcessingMortising
