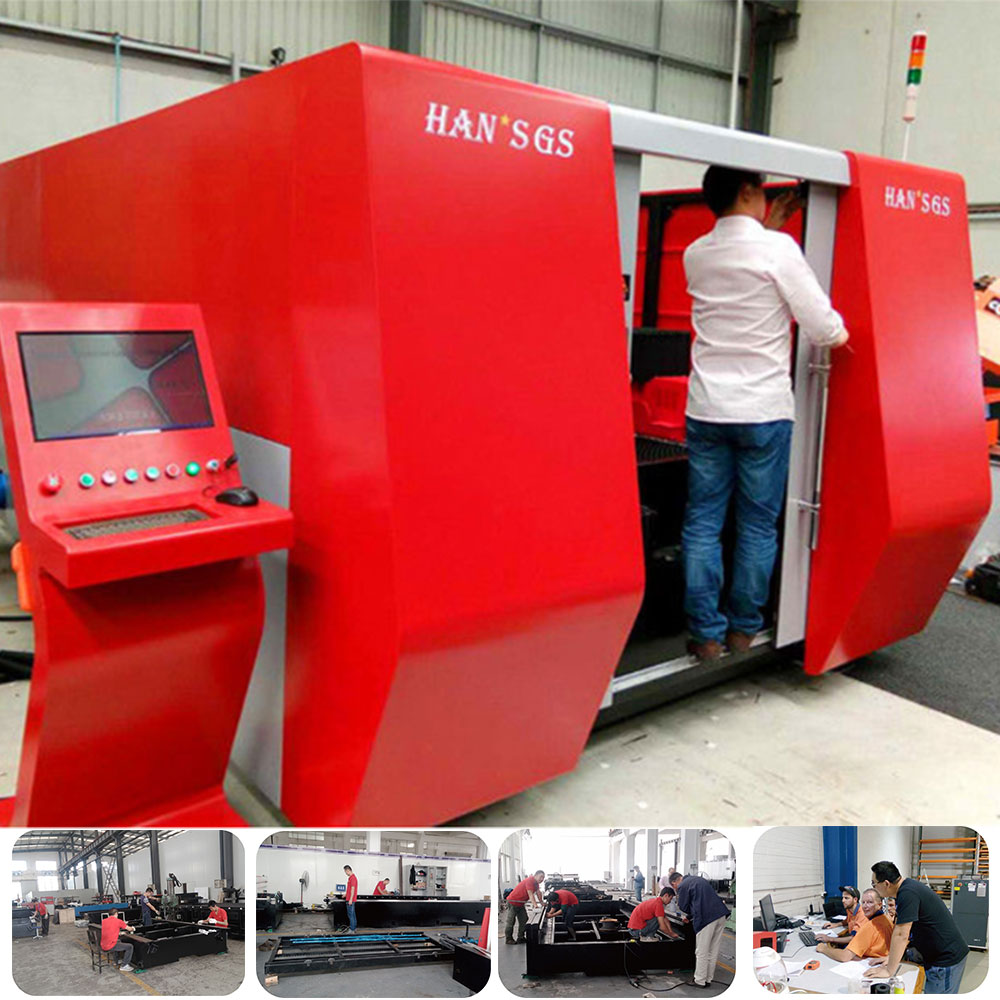

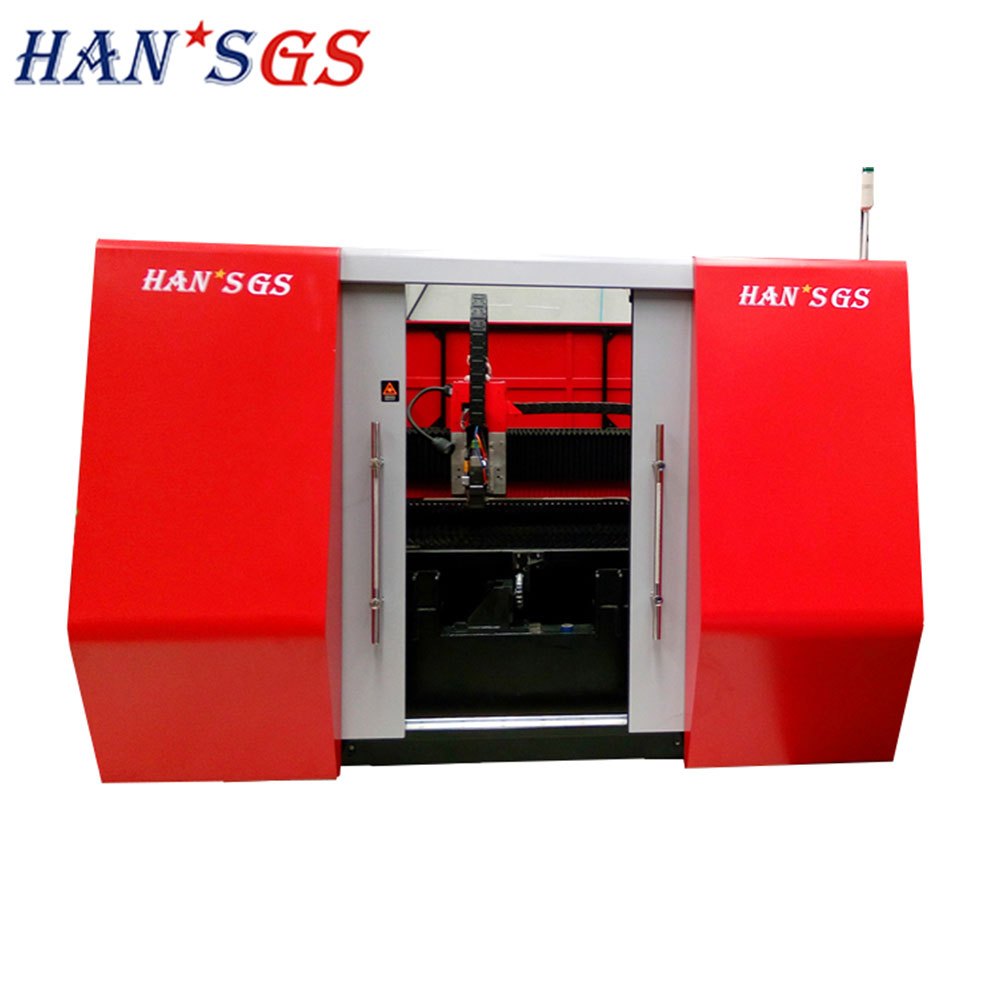

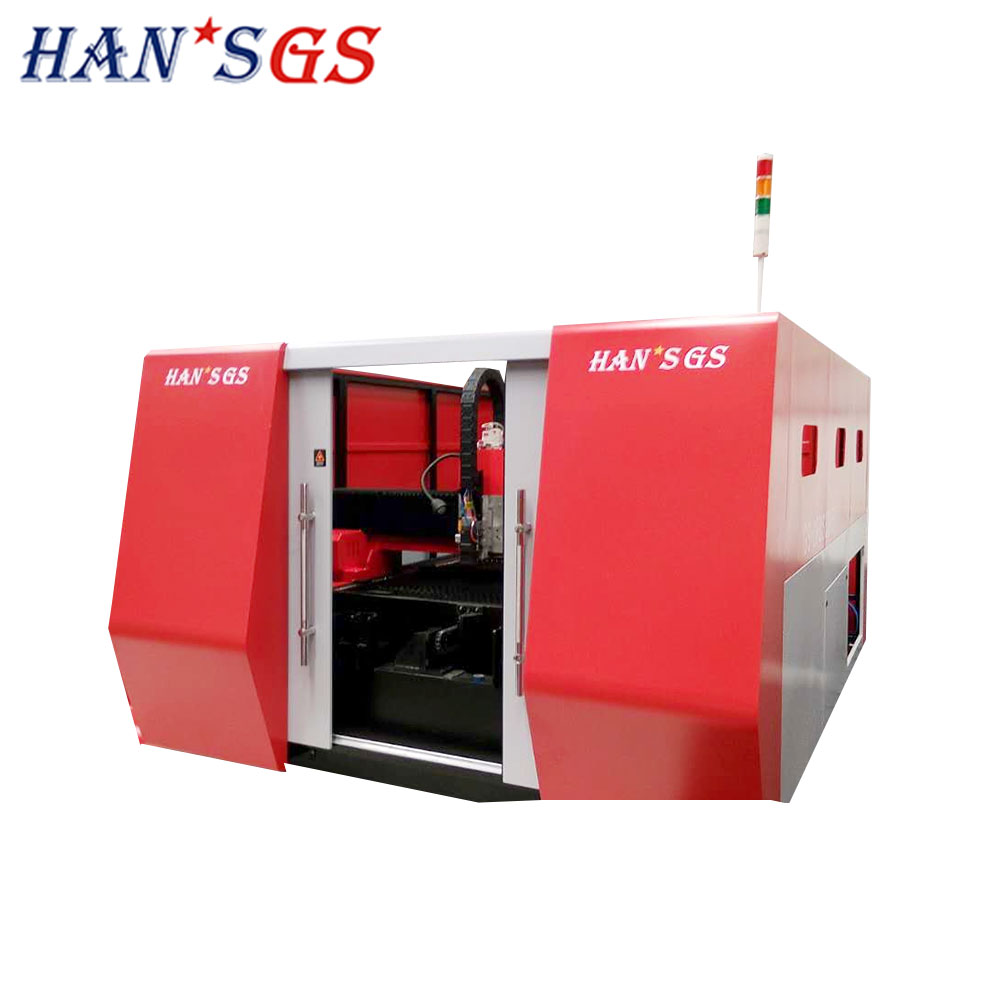

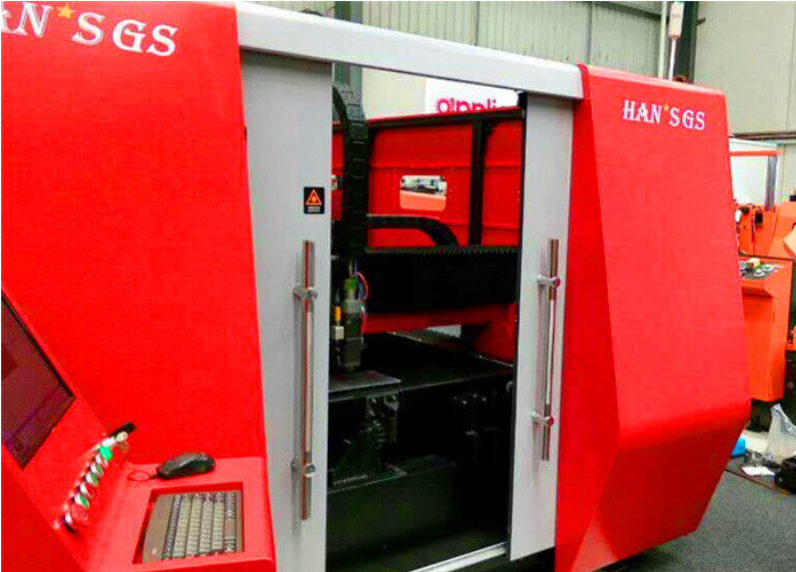

CNC Fiber Laser Cutting Machine for Metal
This fiber laser cutting machine excels in both plane and bevel cutting, delivering neat and smooth edges. It is suitable for high-precision metal plate cutting and, with an arm, can perform three-dimensional cutting, replacing traditional five-axis lasers.
Technical Specifications
Overview
High-Precision CNC Fiber Laser Cutting
This CNC Fiber Laser Cutting Machine is engineered for high-precision metal plate processing, offering both plane and bevel cutting capabilities. It serves as an energy-saving alternative to CO2 lasers, featuring a high photoelectric conversion rate and reduced gas consumption. With its advanced three-dimensional cutting potential and narrow, parallel kerf width, it delivers smooth, finished edges that often require no secondary mechanical processing.
Performance Highlights
Key Performance Metrics
0.05 mm
Dimensional Accuracy
2,000 W
Max Power Option
Cutting Capabilities
Laser Power vs. Material Thickness
| Power Source | Carbon Steel (Max) | Stainless Steel (Max) | Aluminum (Max) | Brass (Max) |
|---|---|---|---|---|
| 500W | 8mm | 4mm | 2mm | 2mm |
| 700W | 10mm | 6mm | 3mm | 3mm |
- Compatible Materials
- Stainless SteelMild SteelAluminumBrassCarbon Steel
Technical Advantages
Efficiency & Quality Benefits
- High photoelectric conversion rate for energy saving
- Minimal heat-affected zone to prevent workpiece deformation
- Narrow and parallel cutting knife edges
- Reduced space and gas consumption compared to CO2 lasers
- Capable of three-dimensional cutting with arm integration
Technical Specifications
Available Power Options
1500W2000W
- Positioning Accuracy
- 0.05 mm
- Control System
- Advanced CNC Control System
