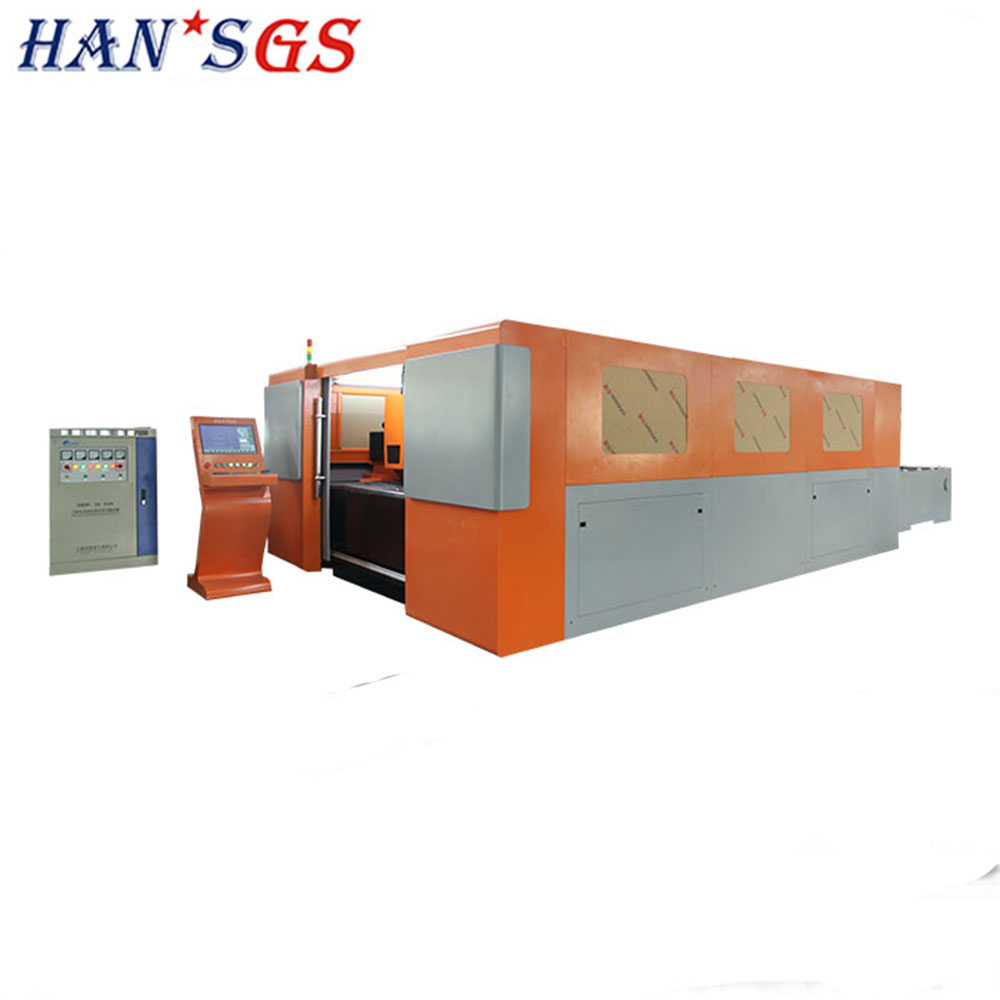

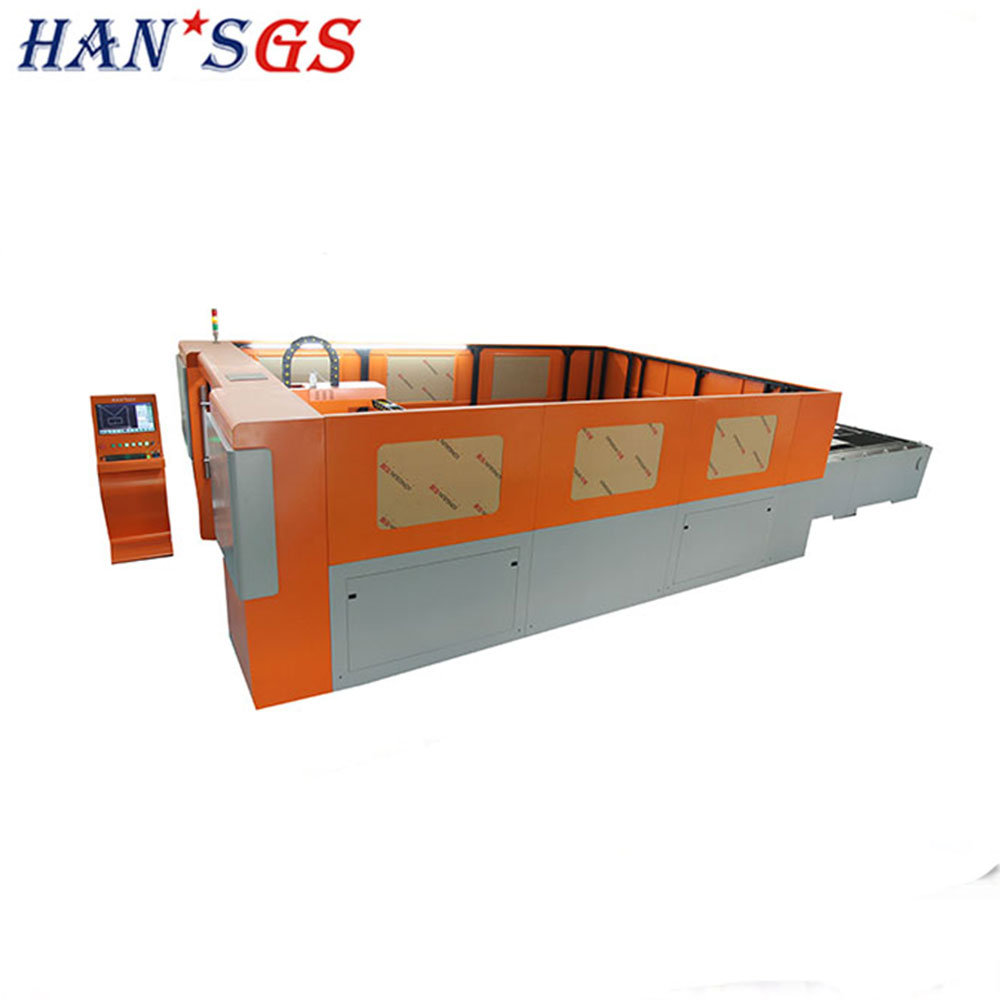

CNC Fiber Laser Cutter for Metal Plate
This CNC fiber laser cutter provides a complete solution for metal cutting with integrated optical, mechanical, and electrical components. It features a fiber laser, chiller, cutting head, exchange table, control system, and ventilation for efficient and precise cutting.
Technical Specifications
Overview
High-Efficiency CNC Fiber Laser Cutting System
This CNC fiber laser cutter is a complete integrated solution combining optical, mechanical, and electrical components for high-precision metal plate fabrication. It offers a significantly smaller focal spot and cutting gap compared to traditional methods, resulting in superior processing quality and efficiency. With power consumption at only 20-30% of traditional CO2 lasers and a maintenance-free reflective lens system, it provides a highly cost-effective and environmentally friendly solution for industrial manufacturing.
Key Advantages
- High photoelectric conversion rate (3x higher than CO2 lasers)
- Extremely high cutting speeds (up to 2x traditional CO2 specs)
- Low maintenance cost with no reflective lenses required
- Flexible processing with compact and intense structure design
- Convenient fiber transmission with no laser route adjustment needed
Technical Performance
Performance Highlights
- Model
- GS-LFDS3015
- Laser Source Medium
- Fiber
Working Range
- Cutting Range (L * W)
- 3000 mm × 1500 mm
- Z-Axis Stroke
- 250 mm
Configuration
Integrated Components
- Fiber Laser Source
- Industrial Chiller
- Fiber Cutting Head
- Exchange Table
- CNC Control System
- Ventilation System
- Available Output Power
- 1000W1500W2000W2500W3000W4000W
- Cooling Method
- Water cooling
