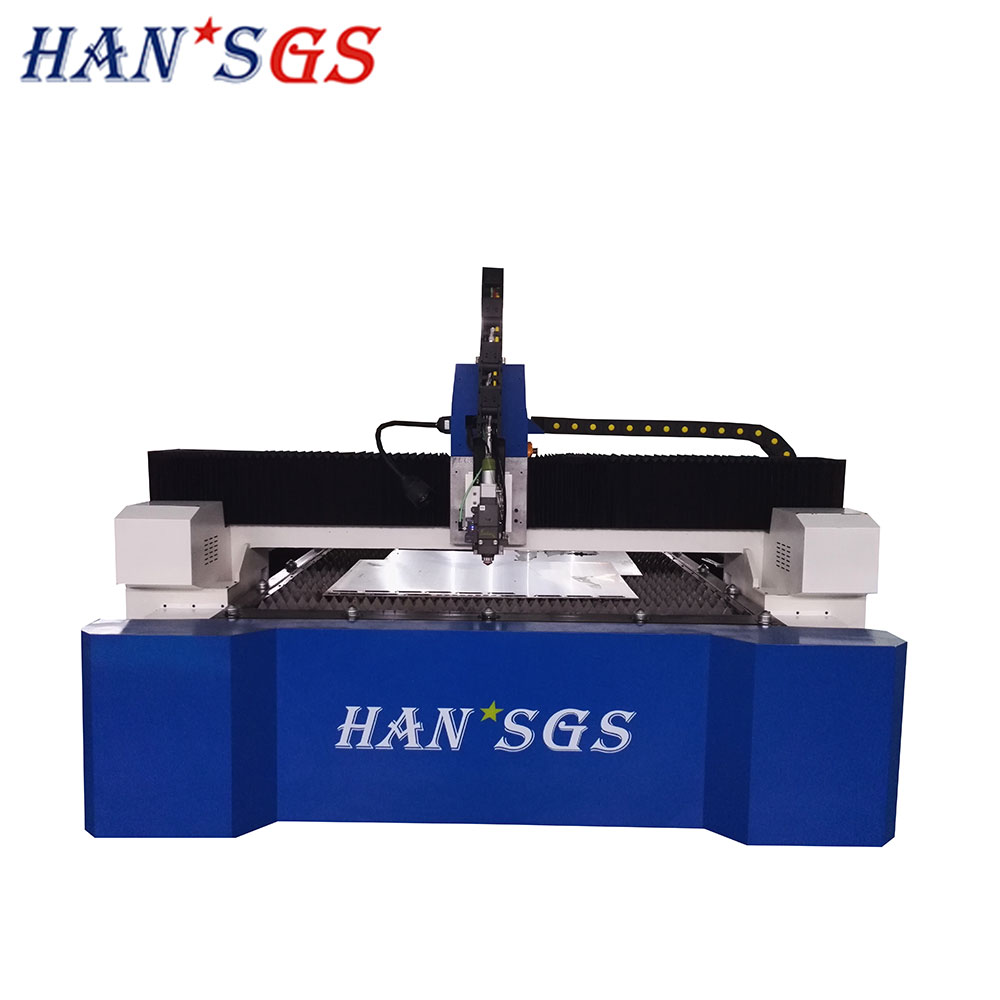

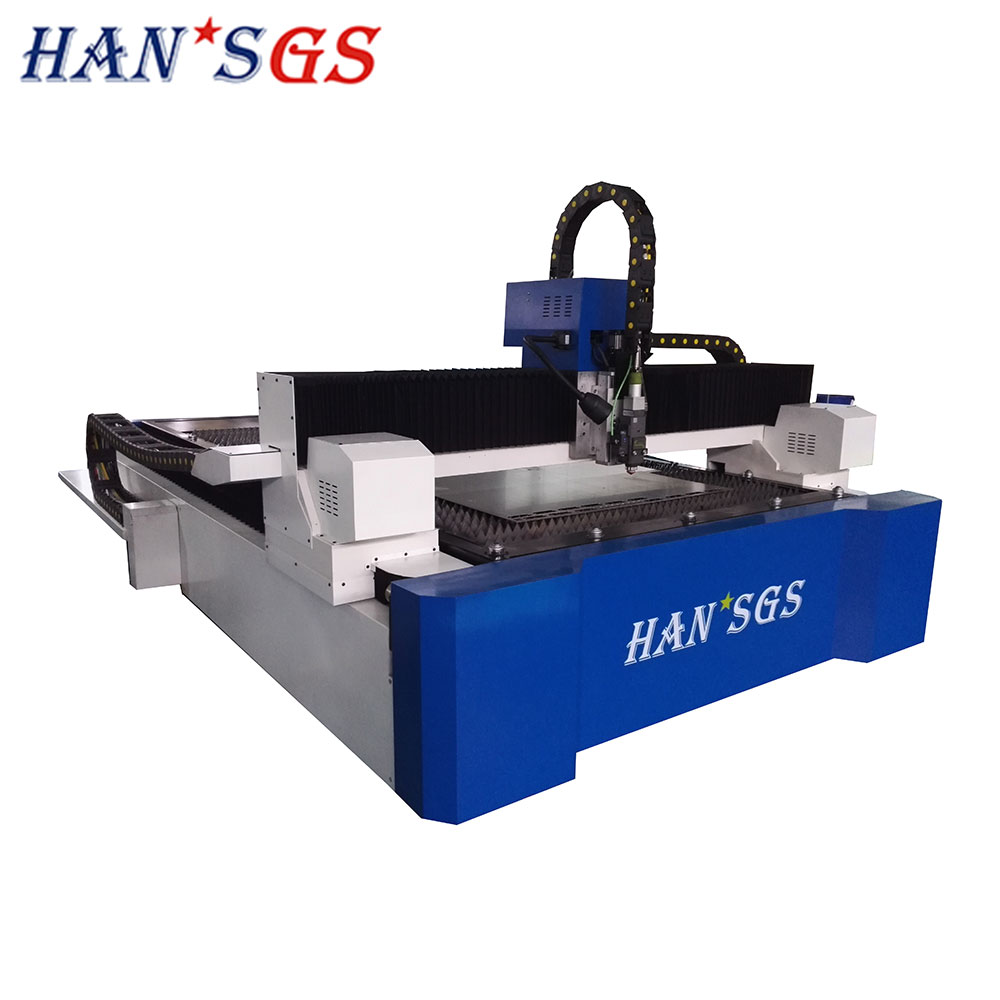

CNC Fiber Laser Cutter 1500 x 3000mm for Sheet Metal
This fiber laser cutting machine is used in industries such as kitchen appliance, electric control box, and auto parts manufacturing. It is also utilized in mechanical equipment, lighting, and hardware and metal processing.
Technical Specifications
Overview
High-Precision Sheet Metal Cutting Solution
The GS-LFD3015 is a robust CNC fiber laser cutter designed for high-performance industrial applications. Featuring a 12mm steel frame and a 1500mm x 3000mm working area, it delivers exceptional stability and precision for sheet metal processing. This machine is ideal for a wide range of industries including kitchen appliances, electrical control boxes, and automotive parts, offering 24-hour continuous operation capabilities.
Key Performance Metrics
Performance Highlights
3,000 mm
Working Length
1,500 mm
Working Width
1,500 W
Max Laser Power
100 mm
Z-Axle Stroke
Technical Specifications
- Model Number
- GS-LFD3015
- Laser Source Medium
- Fiber
- Laser Power Range
- 500W - 1500W
Control & System
- Control System
- Beckhoff CNC Control System
- Cooling System
- Water CoolingAir Cooling
Design Features
Advanced Features
- Removable control cabinet for convenient maintenance
- Air-conditioned control cabinet for component security
- Double dedusting system for environmental safety
- Integrated exhaust device for pollution control
- Small footprint with high system integration
- Frame Thickness
- 12 mm
Safety & Protection
- Water Chiller Safety Functions
- Over TemperatureLack PhasePressure ProtectionWater-breakUndervoltageOverload
Applications
Target Industries
Kitchen ApplianceElectric Control BoxMechanical EquipmentLighting & PostersAuto PartsHardware Processing
