Technical Specifications
Overview
Industrial Precision Laser Cutting

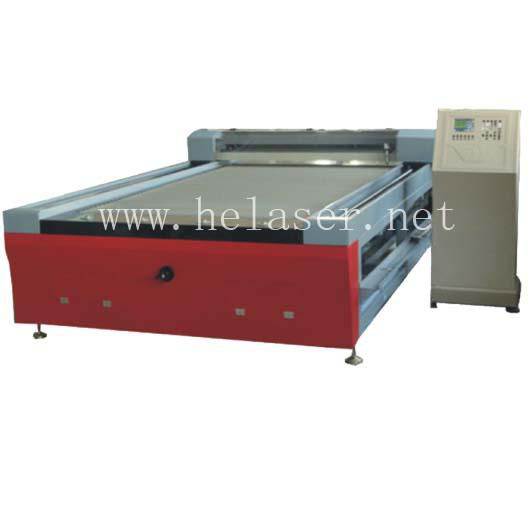

The ZTGC-130250 is a high-performance CNC CO2 laser cutting system engineered for professional non-metal fabrication. It offers exceptional versatility for industries ranging from furniture manufacturing and architectural modeling to advertising and signage production. Equipped with an expansive work area and high-precision accuracy, this machine delivers repeatable, clean cuts on materials such as wood, acrylic, and plexiglass.
Technical Specifications
Laser Power
80 W
Standard Power
120 W
Optional Maximum
- Cutting Area
- 1300 x 2500 mm
- Max Cutting Speed
- 18000 mm/min
- Positioning Accuracy
- 0.03 mm
Performance
- Compatible Software Formats
- AIBMPPLTDXFDST
- Cooling System
- Exclusive constant temperature water-cooling
Configuration
Standard Configuration
- Separate intermittent smoke dissipation system
- Mini air compressor
- Strip aluminum rib working table
- Float working table
Optional Upgrades
Dust removal plantAuto focus Z-axisAutomatic high pressure blow valve
