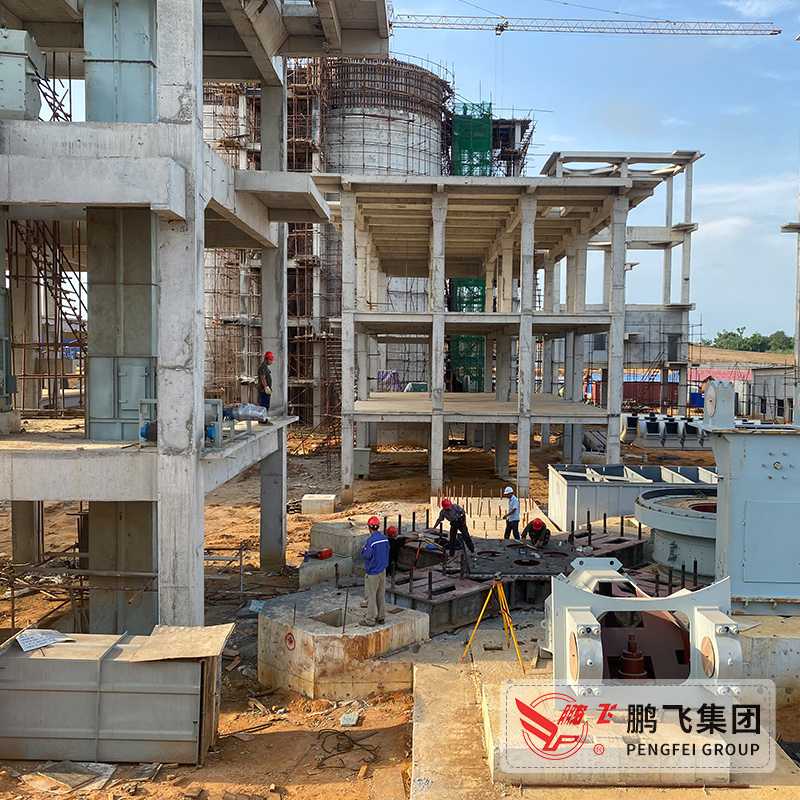

Cement Grinding Station, 1 Million Tons Annual Output
This cement grinding station is engineered for an annual output of 1 million tons. It utilizes advanced grinding technology and efficient material handling systems to ensure high productivity.
Technical Specifications
Overview
High-Efficiency Cement Grinding Solution
This cement grinding station is engineered for a robust annual output of 1 million tons, utilizing advanced separate grinding technology for clinker and slag. The system integrates dual Φ 4.2m × 13m cement mills and high-efficiency powder concentrators to ensure stable production and superior product quality. Designed for low energy consumption and high yield, it offers a reliable solution for large-scale cement manufacturing operations.
Performance Metrics
Annual Output
1,000,000 Tons
Annual Production
Technical Configuration
Mill Dimensions
- Two Φ 4.2m × 13m cement mills
- Combined grinding process
- Separate clinker and slag grinding technology
- Separation Equipment
- K-type Internal CirculationUltra-fine Special High-efficiency ConcentratorDispersing Classifier
Process Design
Clinker Grinding Workflow
- Measurement by belt weigher
- Magnetic metal removal via iron remover
- Particle size classification (2.5mm threshold)
- Fly ash metering and integration
Slag Grinding Workflow
- Gypsum, dry slag, and fly ash measurement
- Air box pulse bag type dust removal
- Three-stage air separation (Primary, Secondary, Tertiary)
Material Handling
Conveying & Mixing Systems
| Equipment Type | Function |
|---|---|
| Spiral Metering Scale | Accurate flow stabilization and measurement |
| Air Conveying Chute | Fluidized transport and continuous mixing |
| Belt Conveyor | Initial material transport to elevators |
Environmental Control
Dust Management
Air Box Pulse Bag FilterMill Tail Dust RemoverExhaust Fan Purification
