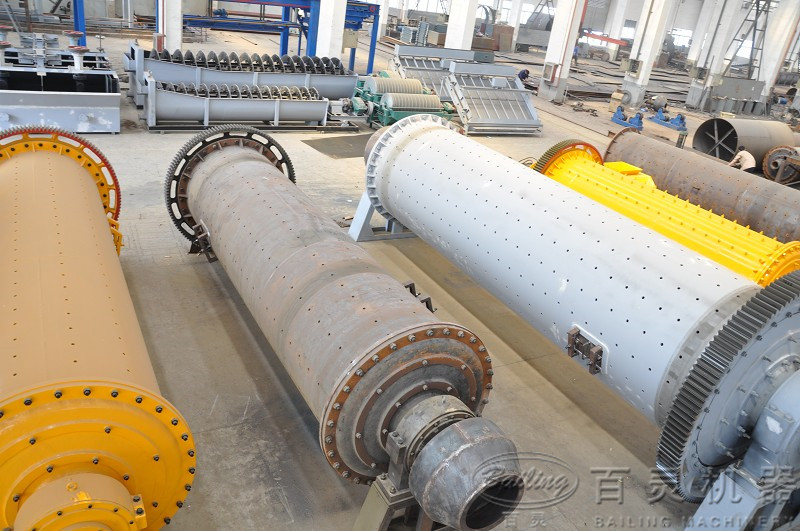

Cement Grinding Ball Mill
The cement ball mill grinds clinker and other materials into fine powder. It is composed of a feeding part, discharging part, turning part, and driving mechanism.
Technical Specifications
Overview
Industrial Cement Grinding Solution
This Cement Grinding Ball Mill is an efficient horizontal rotating device designed to grind clinker and other materials into fine powder ranging from 20 to 75 microns. Featuring a robust construction with detachable liners and a cast steel quill shaft, it ensures stable and reliable performance in demanding environments. It is highly versatile, supporting both dry and wet grinding processes for applications in building materials, ceramics, and chemical industries.
Key Features
Grinding Capabilities
- Efficient grinding of materials 1/4 inch and finer
- Adjustable output fineness from 20 to 75 microns
- Supports both dry and wet grinding methods
- Closed-system operation for high efficiency
- Wear-resistant drum with detachable liners
Technical Specifications
Performance Metrics
35 t/h
Max Capacity
1,250 kw
Max Power
75 microns
Fine Particle Size
Grinding Media
Ceramic BallsSteel Balls
- Rotation Type
- Horizontal rotating device transmitted by outer gear
Model Comparison
Model Specifications Table
| Model (m) | Capacity (t/h) | Power (kw) | Weight (t) | Transmission |
|---|---|---|---|---|
| 2.2×7m | 8-9 | 380 | 54 | Edge |
| 2.2×9.5m | 14-16 | 475 | 70 | Edge |
| 2.4×10m | 19-19 | 630 | 94.5 | Edge |
| 2.4×13m | 21-23 | 800 | 115.2 | Edge |
| 2.6×13m | 28-32 | 1,000 | 148 | Edge |
| 3×12m | 32-35 | 1,250 | 168.6 | Edge |
Applications
- Target Industries
- Building MaterialsCeramic Raw MaterialsChemical IndustryGlass ProductionFood PowderingVarnish Manufacturing
Construction Details
Mechanical Components
- Feeding and discharging parts
- Turning part with casting hobbing gearwheel
- Driving part (Reducer, small driving gear, motor)
- Cast steel quill shaft
- Ladder and ripple liners in the chamber
