Ceiling T-Grid Roll Forming Machine
This automated machine produces ceiling T-grids for suspended ceiling systems. It performs punching and cutting automatically with a PLC control system.
Technical Specifications
Overview
High-Speed Ceiling T-Grid Production
This automatic roll forming machine is designed for the high-speed production of interchangeable Main T and Cross T ceiling grids. It features a fully automated workflow including punching and cutting, ensuring high precision and efficiency for suspended ceiling manufacturing. The system is powered by a Delta PLC control system to maintain stability and long-term operational reliability.
Performance Metrics
Production Speed
30 m/min
Main T Line Speed
30 m/min
Cross T Line Speed
Technical Specifications
Decoiler Parameters
| Feature | Specification |
|---|---|
| Loading Capacity | 3 Tons |
| Uncoiling Width | 500mm |
| Inner Diameter | 450-550mm |
| Uncoiling Type | Passive turntable |

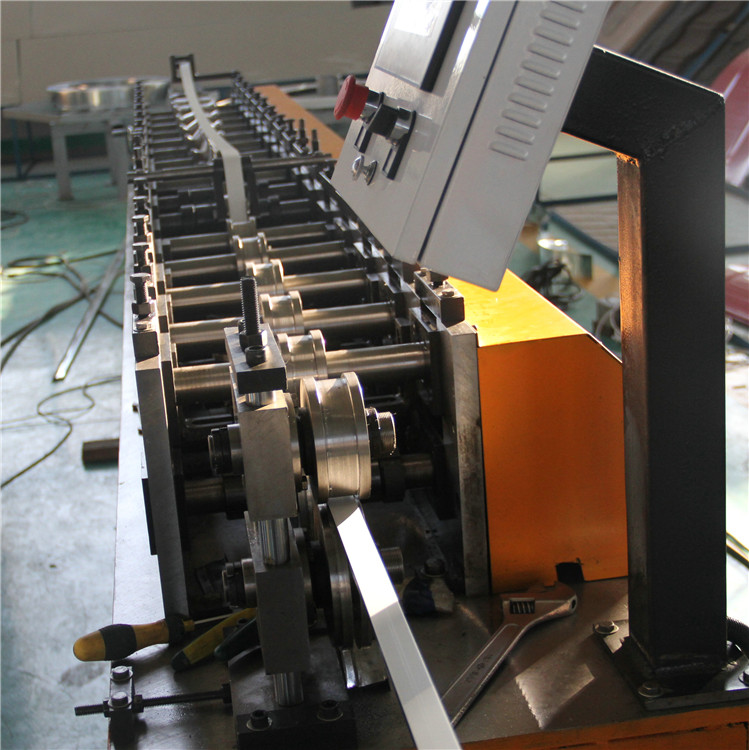

Forming System
Roll Forming Details
- Roller Fixer: Guide column
- Frame: Middle plate welded Memorial arch frame
- Drive Mode: Gear driven
- Shaft Diameter: 40mm
- Integrated feeding and flattening unit
Control & Automation
- Control System Components
- Delta PLCDelta TransducerDelta Touch PanelServo Trace SystemInverter MotorPhotoelectric Stroke Switch

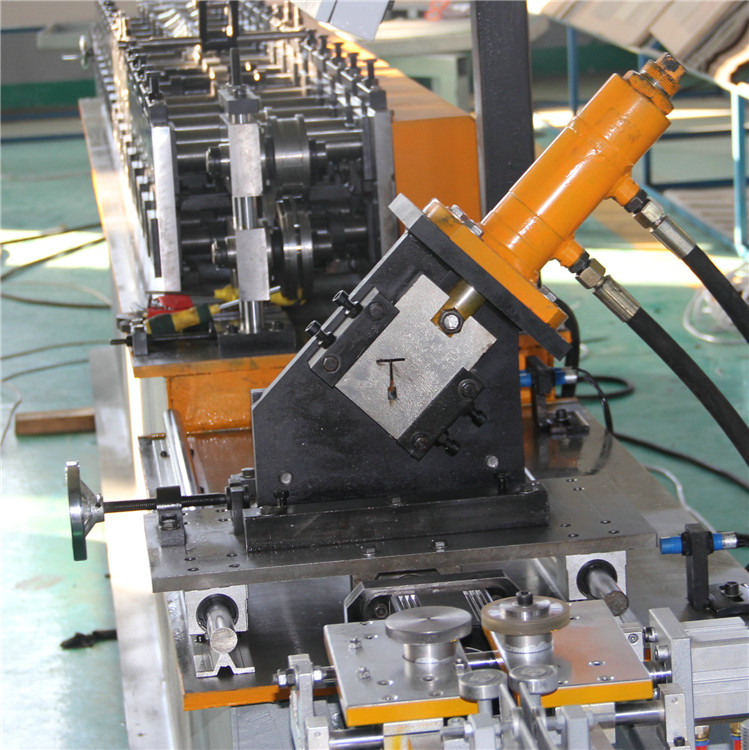

Shearing & Punching
Shearing & Punching Unit
- Power Supply: Hydraulic
- Frame Style: Pillar style with rack & pinion
- Automation: Simultaneous head and middle hole punching
- Cutting: Automatic post-forming cut-off
Safety & Convenience
Safety Features
Movable SwitchAir BreakRadiatorTransformerElectric Leakage Protector

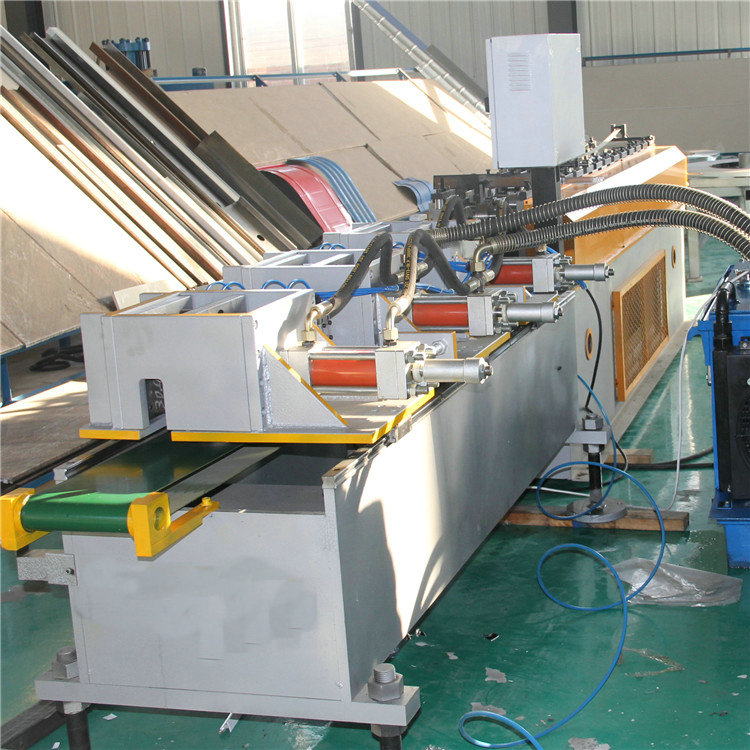

System Components
Machine Composition
- Manual Decoiler
- Feeding Unit
- Main Roll Forming Machine
- Hydraulic Punching & Cutting Station
- Hydraulic Station
- Electric Control Cabinet
- Run Out Table
