Cast Iron Welding Electrodes
These welding electrodes are designed for cast iron materials. They are available in non-machinable and machinable types, including pure nickel and nickel55% variations.
Technical Specifications
Product Overview
Professional Cast Iron Welding Solutions
These cast iron welding electrodes are engineered for high-performance repair and maintenance applications. Available in three distinct formulations—Oxide flux with carbon steel core, Graphite with pure nickel core, and Graphite with nickel/ferro core—they cater to diverse industrial requirements. Designed for versatility, these electrodes support welding in all positions (F, V, OH, H) and are compatible with both AC and DC+ current, ensuring reliable, durable joints across various grades of cast iron.
Technical Specifications
Current Type
ACDC+
- Welding Positions
- FVOHH
- Packaging
- 10kg net cartons (1kg x 10 plastic boxes)
Electrode Types

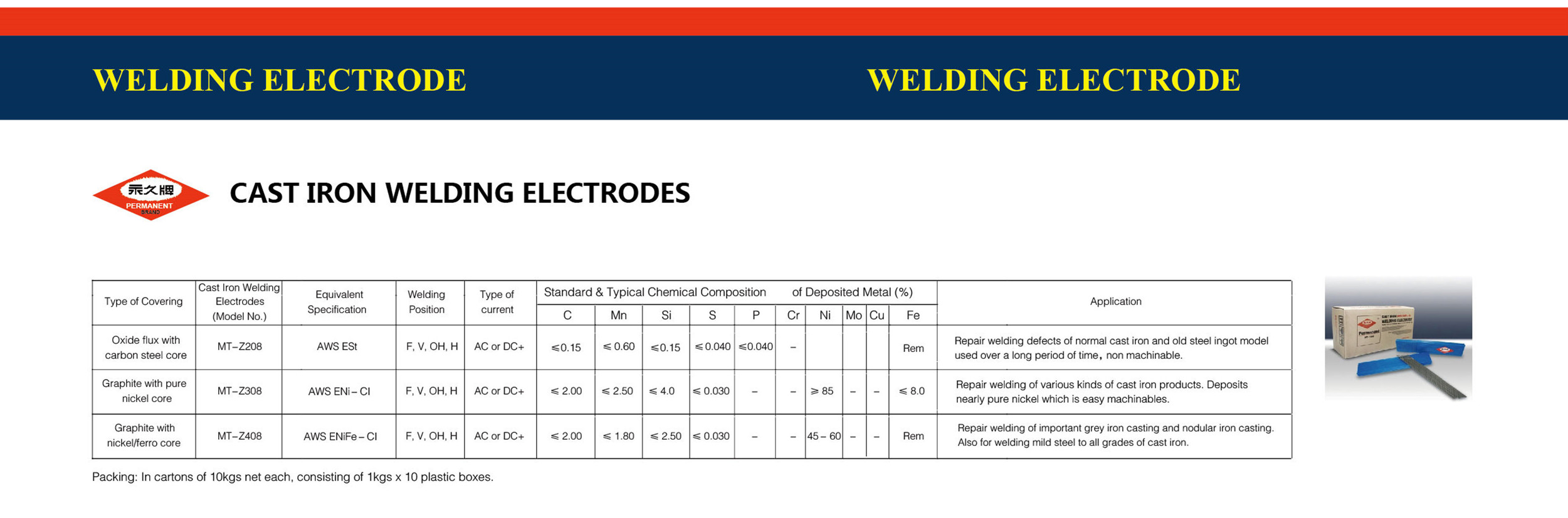

Electrode Type Comparison
| Model | AWS Equivalent | Core/Flux Type | Primary Application |
|---|---|---|---|
| MT-Z208 | ESt | Oxide flux / Carbon steel | Repairing normal cast iron/steel ingot molds (non-machinable) |
| MT-Z308 | ENi-CI | Graphite / Pure nickel | Repairing various cast iron (easy machinable) |
| MT-Z408 | ENiFe-CI | Graphite / Nickel-ferro | Grey/nodular iron casting; welding mild steel to cast iron |
