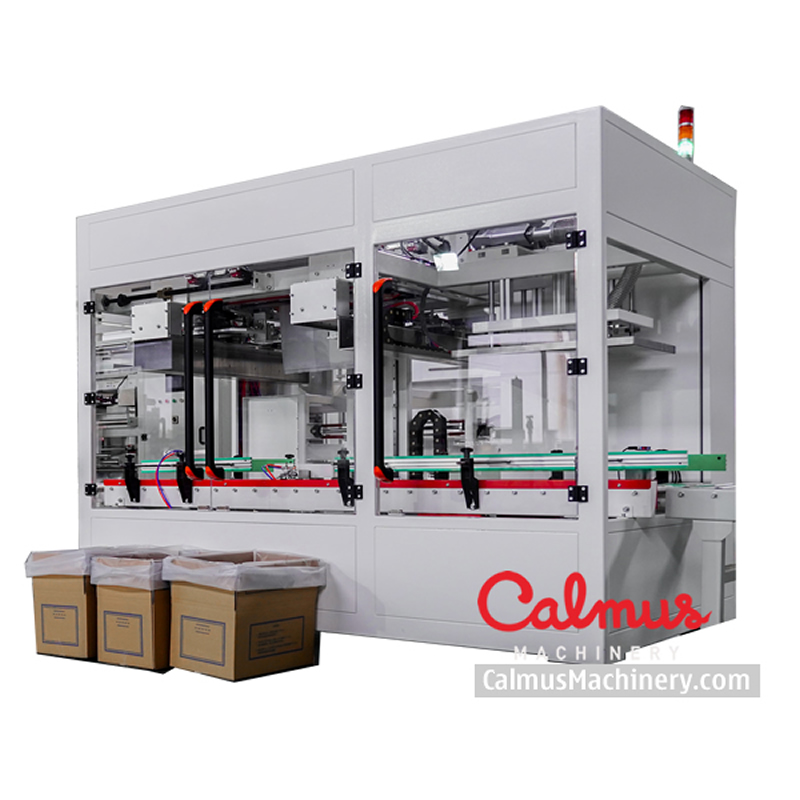

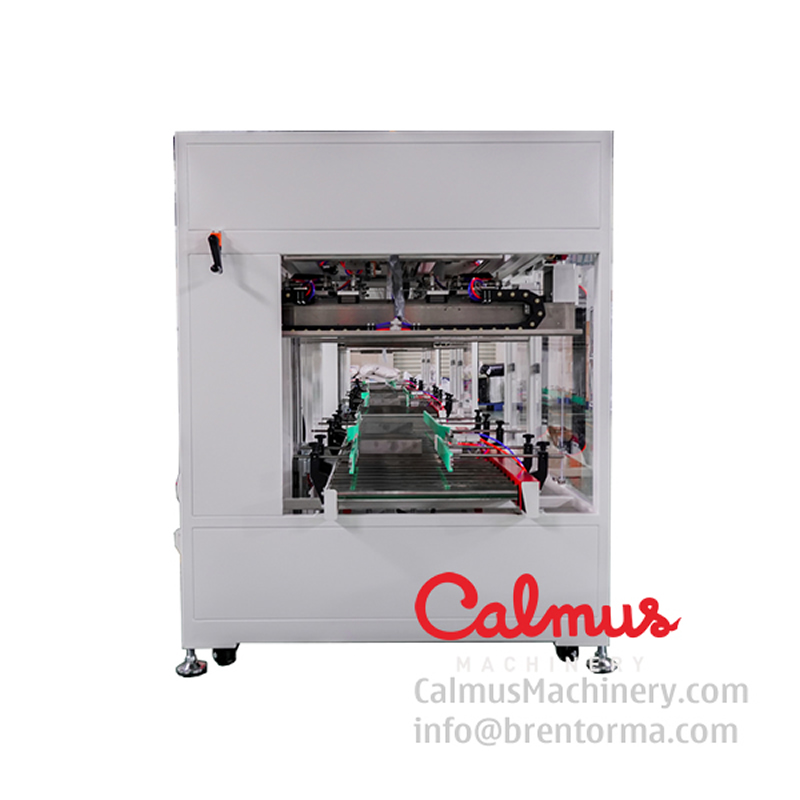

Carton Liner Insertion Machine
Poly bag in-serter for placing liners in cartons or cases. This fully-automatic machine is designed for lining cartons with bags individually.
Technical Specifications
Overview
Automated Carton Liner Insertion
This fully-automatic bag inserting machine is engineered to streamline packaging operations by efficiently lining cartons with polybags. It handles the entire process from cutting and sealing film from roll stock to inserting, opening, and cuffing the bag over the carton top flaps. Designed to reduce labor and material costs, it offers high efficiency and simple operation for various industrial applications.
Performance Metrics
Inserting Capacity
6 cartons/min
Standard Capacity
12 cartons/min
High-Speed Option
Technical Specifications
- Film Width Range
- 460 mm
- Maximum Film Width
- 840 mm
- Power Supply
- 3 phase, 4.5 kW
- Compressed Air Pressure
- 6 bar
- Air Consumption
- 100 NL/min
Carton Compatibility
- Carton Dimensions (L x W x H)
- 250-550 x 200-400 x 150-400 mm
- Customization
- Yes
Machine Physicals
- Dimensions (L x W x H)
- 3322 x 2177 x 2350 mm
Key Features
Operational Benefits
- Fully-automatic bag insertion
- Reduces labor and material costs
- Simple to operate and adjust
- Integrated air-blowing for bag extension
- Compatible with roll stock film
