Cable Identifier with Rogowski Coil

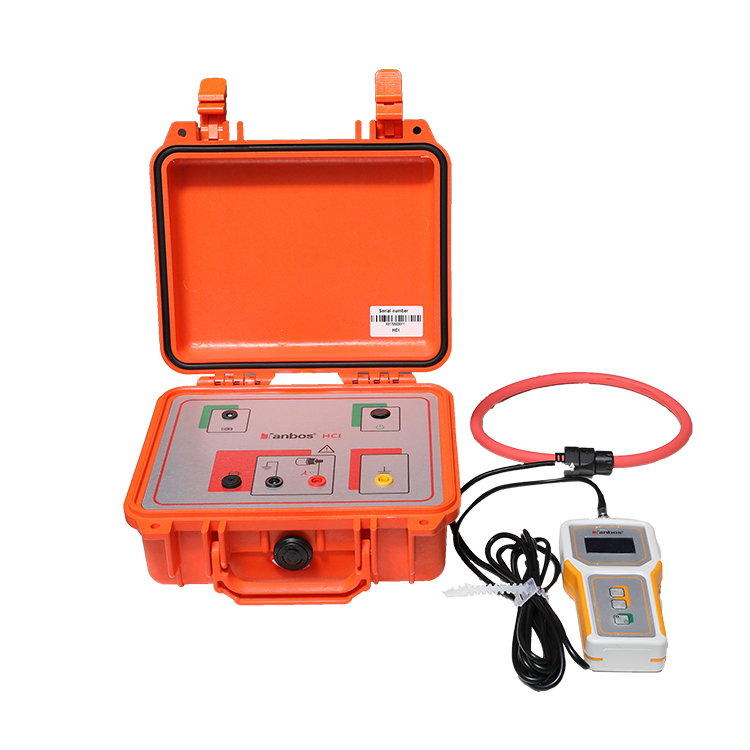

This cable identifier is designed for identifying cables quickly and accurately. It features a flexible Rogowski coil for non-contact current measurement and a handheld display unit.
Technical Specifications
Product Overview
Professional Cable Identification System
This cable identification system is designed to safely and accurately identify specific cables within complex bundles, preventing damage from accidental cutting. Utilizing advanced signal tracing technology, the system provides intuitive visual feedback to confirm the target cable. It is an essential tool for power cable engineers and technicians, ensuring reliable operation and strict adherence to electrical safety standards.
Key Features
- Core Capabilities
- Intuitive Operation100% Identification AccuracyLightweight DesignCompliant with Safety Regulations
Transmitter Specifications
Pulse Characteristics
55 V
Pulse Voltage
100 A
Max Pulse Current
30 times/min
Pulse Frequency
72 ms
Pulse Width
Power and Physical
| Parameter | Value |
|---|---|
| Power Supply | AC 100-240V, 50Hz or 12V battery |
| Continuous Use Time | > 6 hours |
| Weight (no battery) | 800g |
| Weight (with battery) | 1.6kg |
| Dimensions | 201 x 120 x 80 mm |
Receiver Specifications
Receiver Performance
| Parameter | Detail |
|---|---|
| Gain Adjustment | 10 gears (-3dB to +24dB) |
| Power Supply | 2 x 1.5V AA Battery |
| Continuous Use Time | > 50 hours |
| Weight | 400g (with clamp & battery) |
| Dimensions | 150 x 65 x 35 mm |
