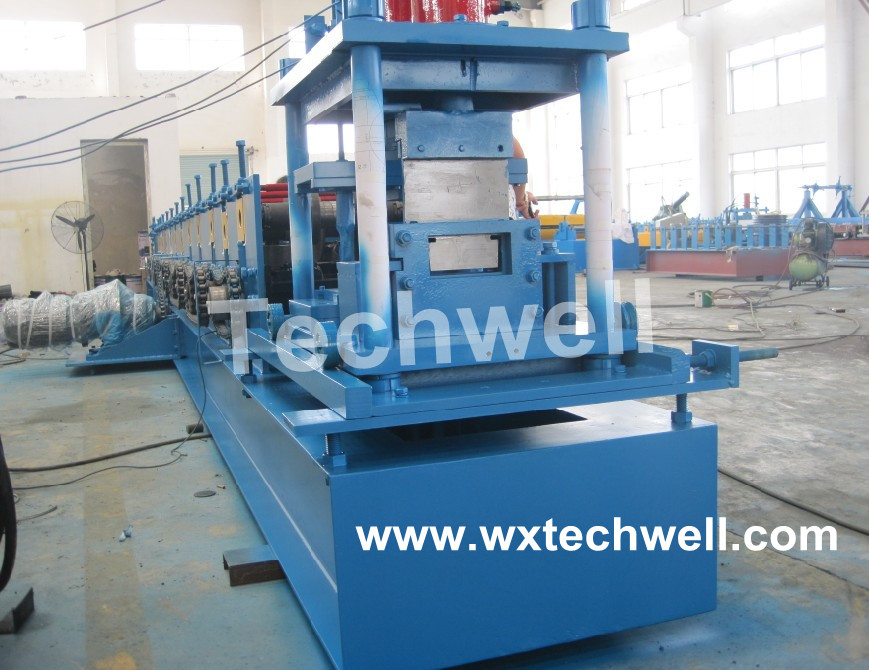

C Purlin Roll Forming Machine
This C purlin roll forming machine is designed for manufacturing C-shaped profiles from metal coils. It utilizes adjustable forming parameters and automatic cutting for producing various sizes and thicknesses of C purlins.
Technical Specifications
Overview
High-Efficiency C Purlin Roll Forming System
This professional-grade roll forming machine is engineered for the precise manufacturing of C-shaped profiles and channels from metal coils. Featuring a robust steel frame and a high-performance PLC frequency control system, it ensures consistent, high-quality production for construction and industrial applications. The integrated hydraulic cutting system and advanced roller technology deliver accurate results with minimal downtime.
Technical Specifications
- Forming Speed
- 11 m/min
- Compatible Material Thickness
- 2-5 mm
- Forming Roller Stands
- 14
- Cutting Length Tolerance
- +/- 1.5 mm
Key Metrics
Performance Metrics
15 Kw
Main Motor Power
11 Kw
Hydraulic Power
20 Mpa
Hydraulic Pressure
10 Ton
Machine Weight
Construction & Materials
Build Materials
| Component | Material Specifications |
|---|---|
| Main Axis | Grade 45# Steel (Heated/Quenched) |
| Forming Rollers | GCr15 Steel (Chrome Coated 0.05mm) |
| Cutting Blade | Cr12 Mov (Quenched) |
System Components
- Included Equipment
- DecoilerFeeding GuideLevelling DeviceRoll Forming UnitCutting DeviceHydraulic StationPLC Control SystemRunout Table
