C Purlin Roll Forming Machine

This roll forming machine is designed for manufacturing C purlins used in steel frame construction. It utilizes a rolling mill process to shape metal into precise C-shaped profiles.

Request a Quote Download PDFPDF

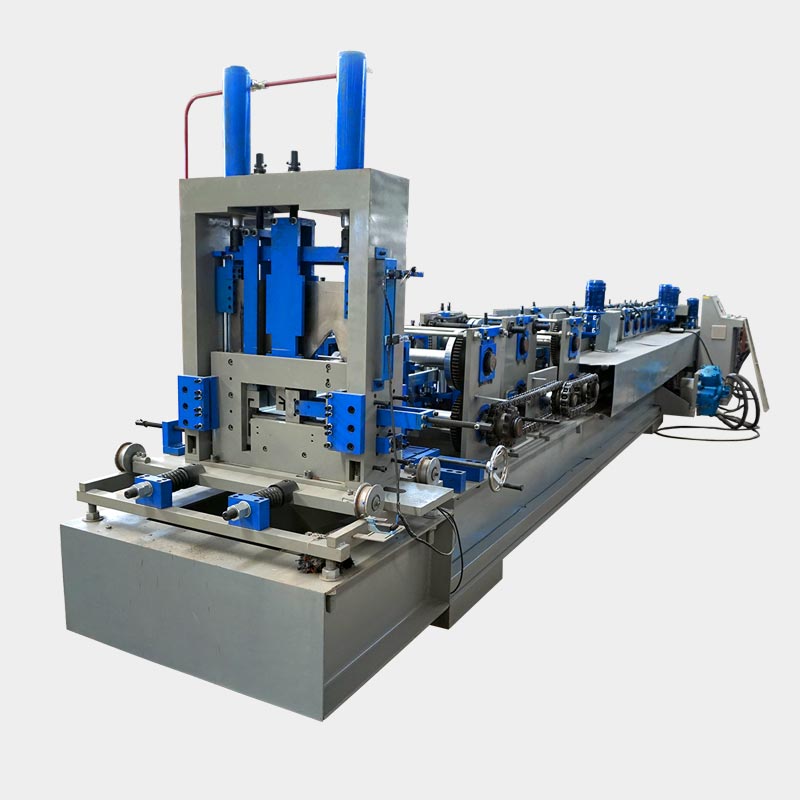

c purlin roll forming machine drywall manufacturing machine roll forming machine prices - Image 1

Technical Specifications

Overview

High-Efficiency C Purlin Production

This fully automatic roll forming machine is designed for the high-volume manufacturing of C-shaped purlins and drywall profiles used in industrial factories and civilian buildings. It features a robust 400mm H-beam main frame and a sophisticated PLC control system for precise dimensional accuracy. The equipment is engineered for durability and ease of operation, providing a reliable solution for modern steel building construction.

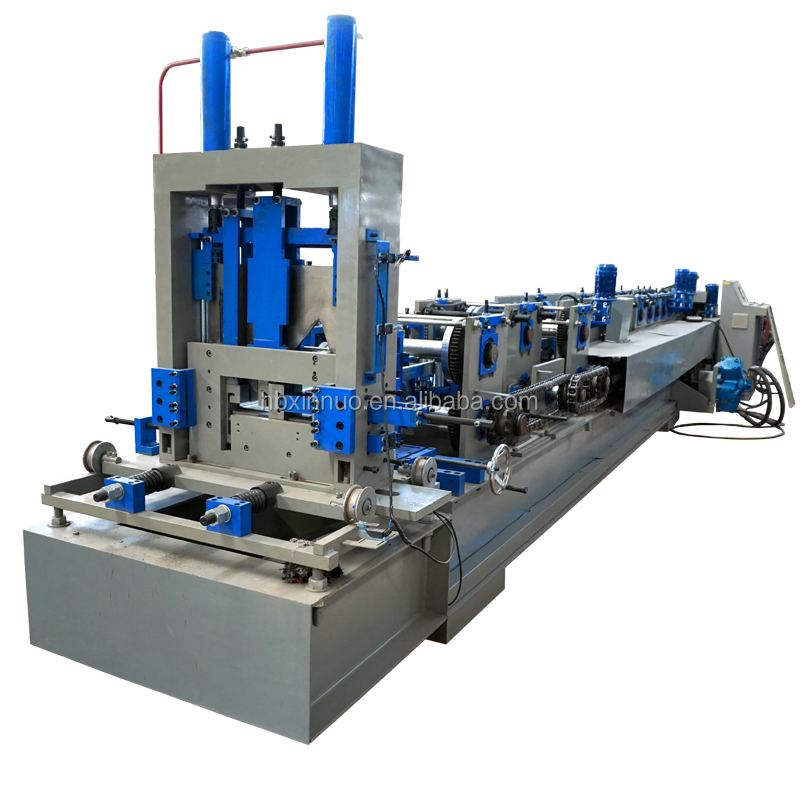

C Purlin Roll Forming Machine Main Unit — Heavy-duty roll forming unit designed for high-speed C purlin production.

Technical Performance

Forming Speed

24 m/min

Max Speed

Power Specifications

22 kW

Total Power

380 V

Input Voltage

Roller Stations: 18

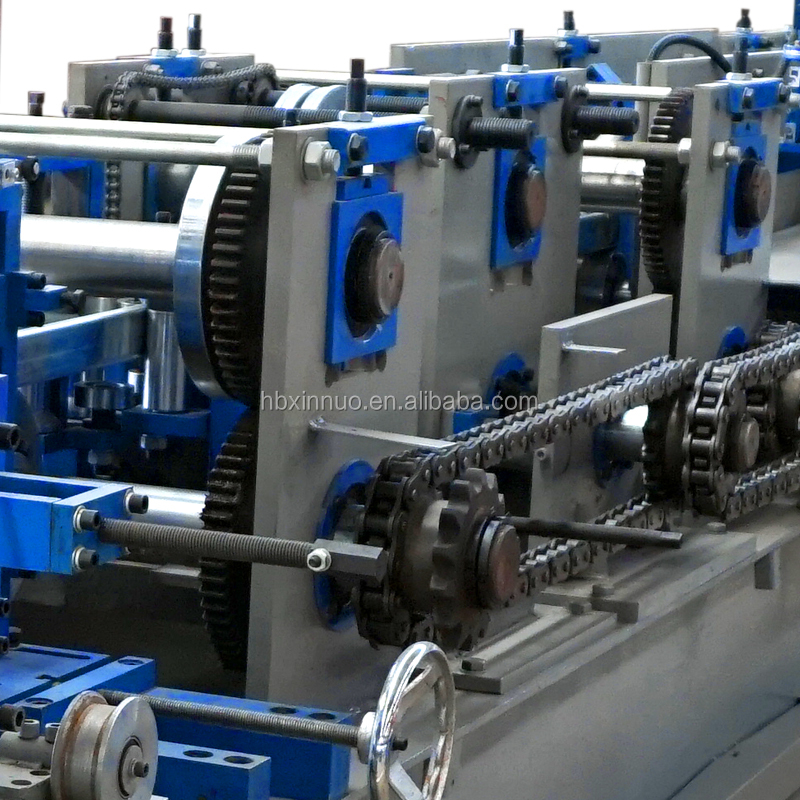

Chain and Gear Drive System — Robust chain and gear transmission system ensuring consistent torque and forming precision.

Material Specifications

Feeding Material Thickness: 1.5 - 3.0mm
Max Steel Coil Width: 600 mm

System Components

Standard Configuration

Manual Uncoiler (5T Capacity)
9 Shaft Strip Leveler
Pre-Punching Device
Pre-Cutting Device
Hydraulic Station
PLC Control Cabinet
Supporter/Receiving Table

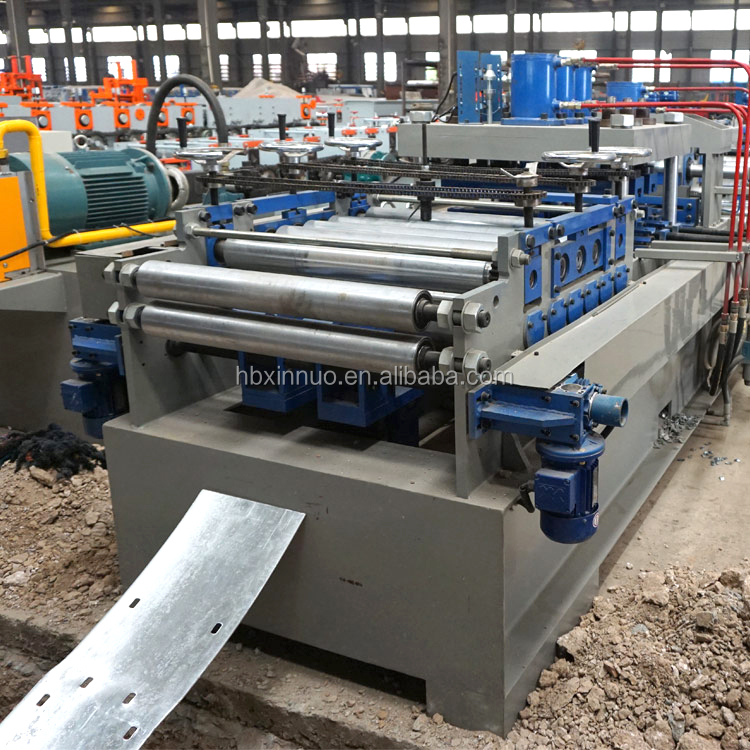

Full Production Line View — Complete system including uncoiler, leveling, punching, and cutting stations.

Control System

Interface Languages

EnglishChineseSpanishRussian

Control Features: PLCInverterEncoderTouch ScreenAutomatic/Manual Modes

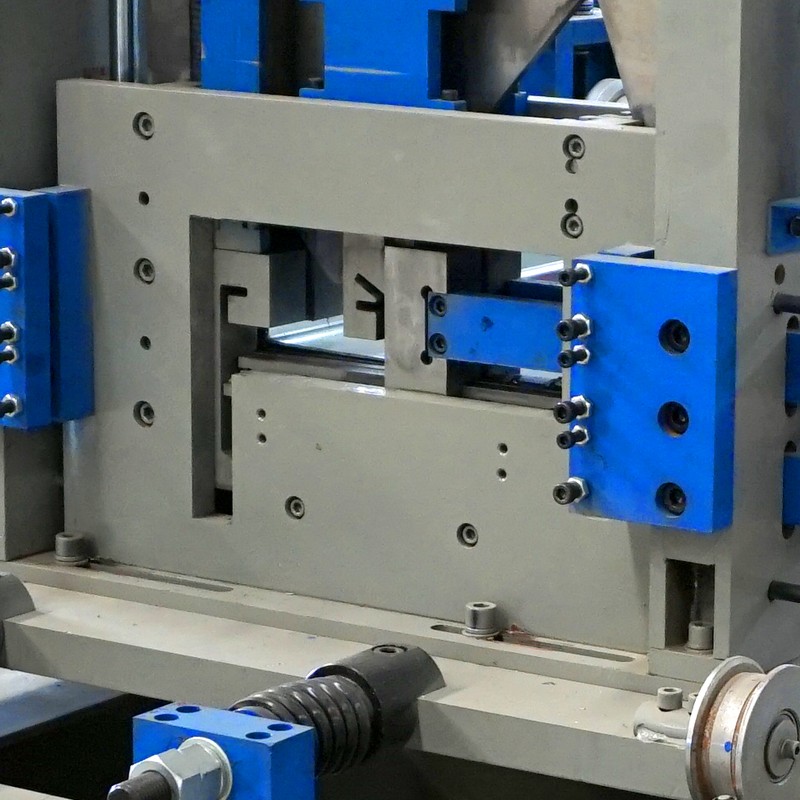

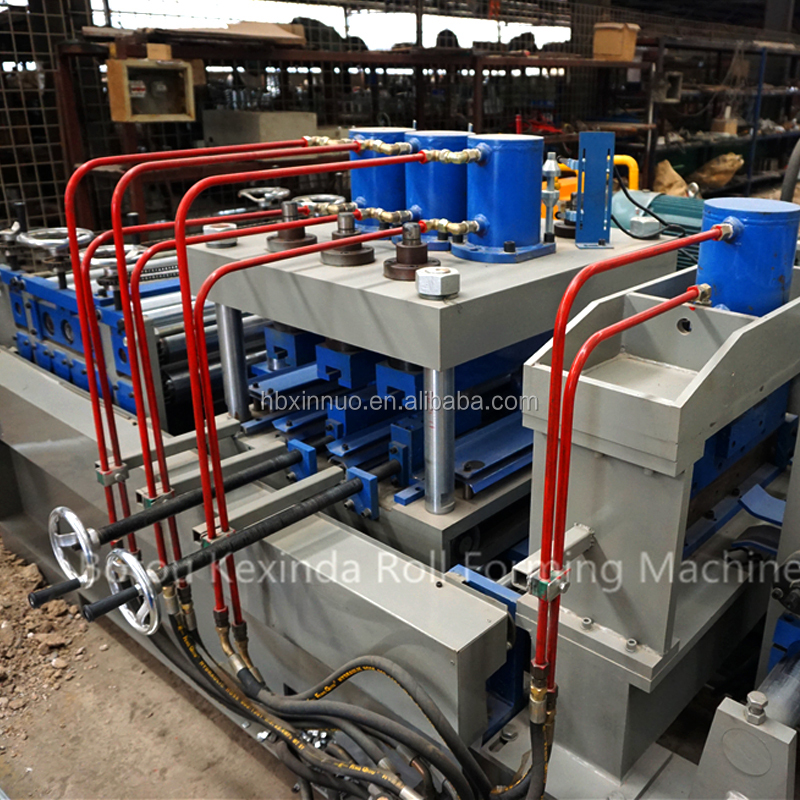

Hydraulic Cutting and Control System — Integrated hydraulic cutting system and PLC control for automated length and quantity management.

Mechanical Details

Hydraulic System Parameters

Parameter	Value
Working Pressure	12-16 Mpa (Adjustable)
Hydraulic Oil Type	46#
Solenoid Valves	3 Groups

Roller Material: High grade Gcr15 forged steel
Cutting System: Cr12Mov with quenched treatment

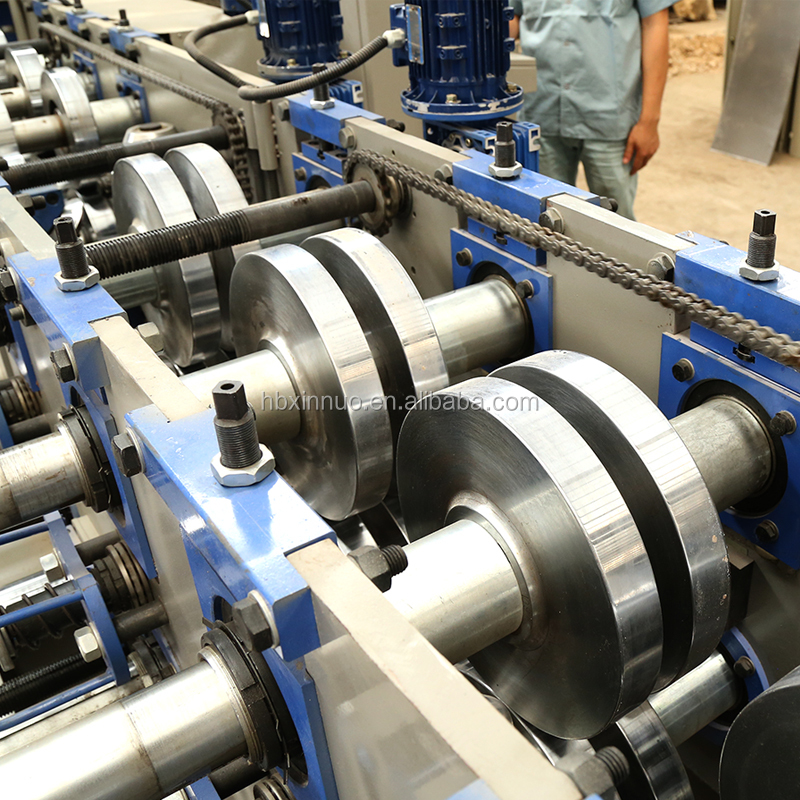

Precision Roller Stations — Gcr15 forged steel rollers arranged in 18 stations for gradual, accurate metal shaping.

Production Capability

Product Size Range: 80mm - 300mm (Automatic adjustment via motor)

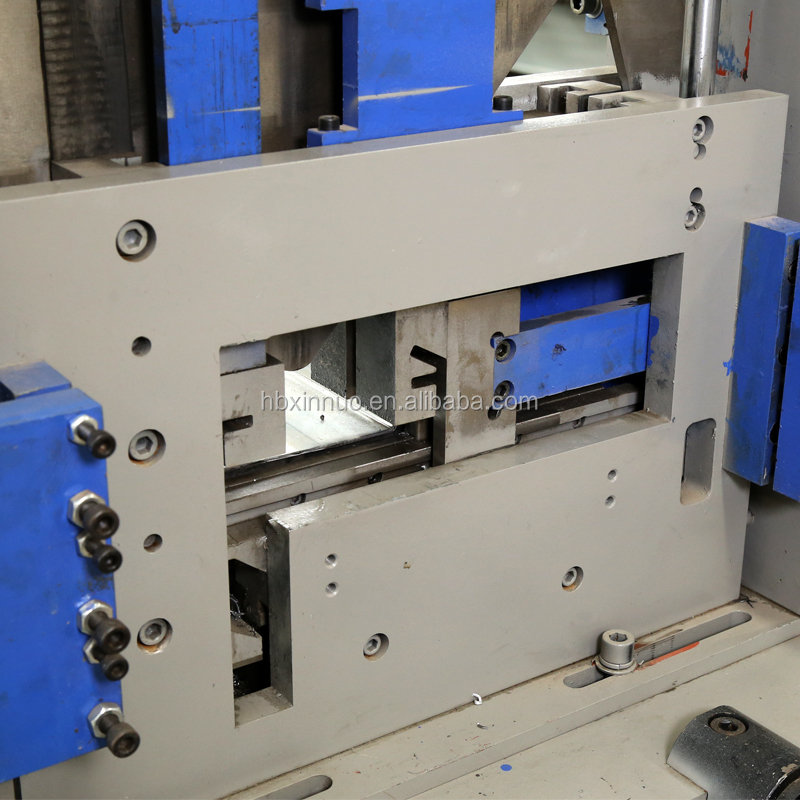

Exit Table and Finished Profiles — Receiving table for organized collection of finished C purlin profiles.

Compliance & Support

Certifications

Warranty: 1 Year
