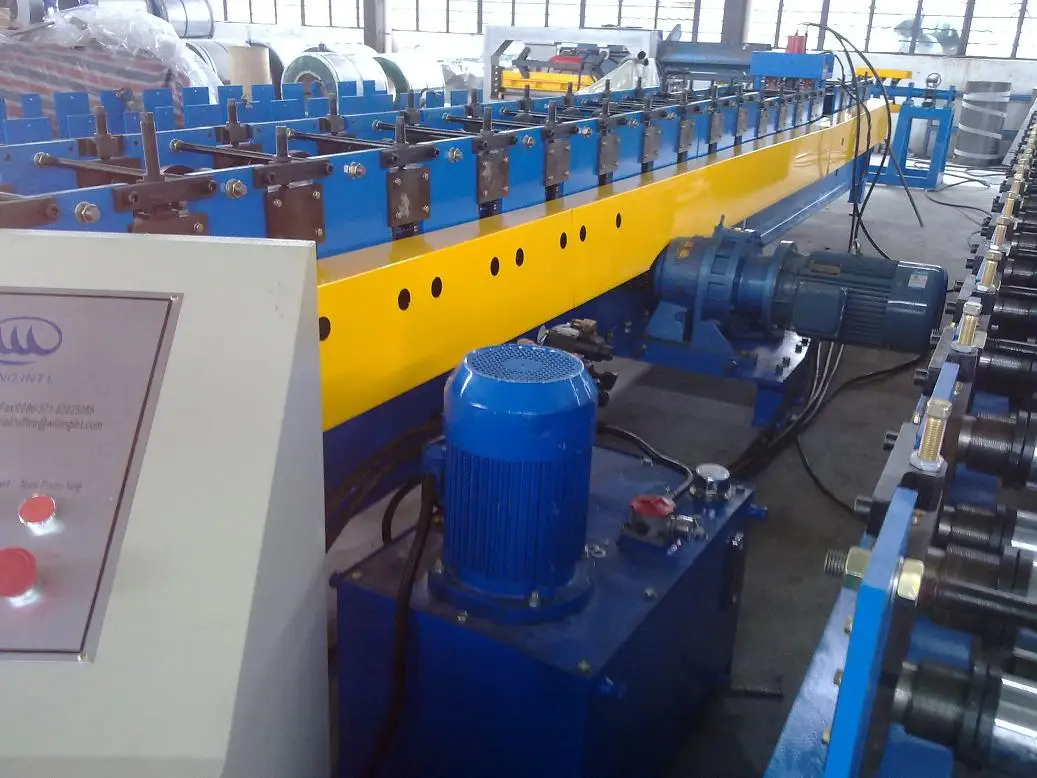

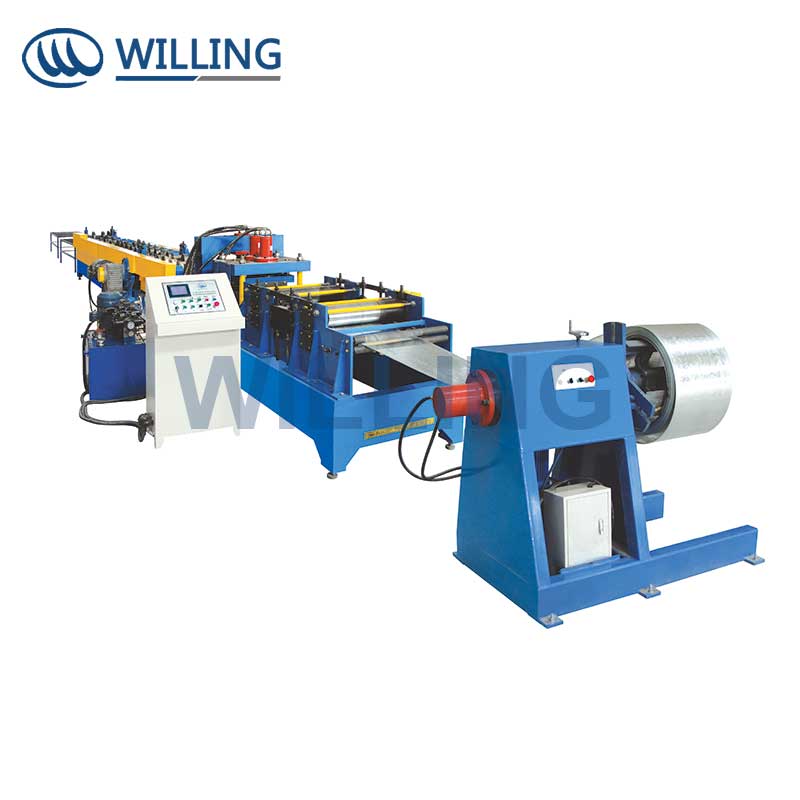

C Purlin Cold Roll Forming Machine
This cold roll forming machine produces C-shaped purlins from galvanized steel coil. It utilizes a series of rollers to gradually form the steel into the desired profile.
Technical Specifications
Product Overview
High-Efficiency Steel Purlin Production
This industrial-grade cold roll forming machine is engineered for the high-speed production of C, Z, and U-shaped steel purlins. It features a fully automated system integrating decoiling, straightening, punching, and cutting to ensure consistent dimensional accuracy. Designed for heavy-duty construction applications, this machine offers a reliable solution for manufacturing structural components with minimal material waste.
Performance Metrics
Max Forming Speed
15 m/min
Max Speed
Material Specifications
- Compatible Materials
- Galvanized steel coilQ235-345 Steel
- Material Thickness
- 3 mm
Technical Configuration
Controller Type
PLC
- Roller Material
- Bearing steel GCr15
- Roller Driven Type
- Chain transmission

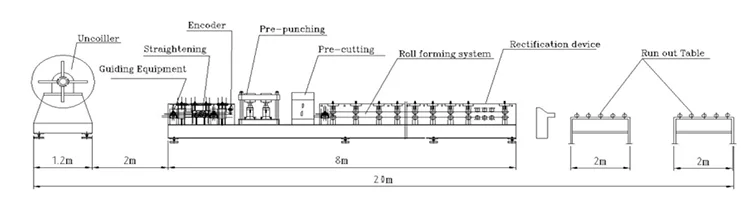

Process Workflow
Integrated Functions
- Uncoiling
- Straightening
- Guiding
- Encoding
- Pre-punching
- Pre-cutting
- Roll forming
- Rectification
- Run-out table
Sectional Lengths
| Section | Length |
|---|---|
| Total Machine Length | 24m |
| Forming Section | 8m |
| Auxiliary Sections | 1.2m - 2m |
Compliance & Quality
- Quality Standards
- CESGSISO 9001
