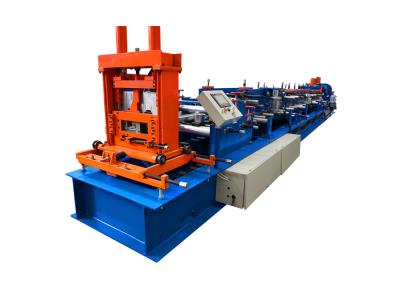

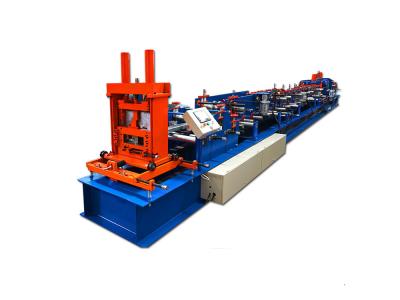

C and Z Purlin Roll Forming Machine
This machine is designed for producing C and Z shaped purlins from metal sheets. It utilizes a cold rolling process to efficiently form sections for structural components.
Technical Specifications
Overview
High-Efficiency C & Z Purlin Production
This versatile cold roll forming machine is engineered for the professional production of both C and Z shaped structural purlins from metal coils. It features an automated control system that allows for high-precision shaping and quick size adjustments, making it ideal for large-scale construction and industrial applications. Designed for durability and consistent performance, it minimizes material waste while maximizing output for roofing and wall support systems.
Key Performance Metrics
Performance Metrics
24 m/min
Max Forming Speed
22 kW
Total Power
5 T
Uncoiler Capacity
Technical Specifications
System Configuration
- Manual Uncoiler
- Guiding Platform
- 9 Shaft Strip Leveler
- Main Roll Forming Machine
- Hydraulic Motor
- Pre-Punching Device
- Pre-Cutting Device
- Hydraulic Station
- PLC Control System
- Supporter Table
- Power Supply
- 380V, 3-Phase, 50Hz

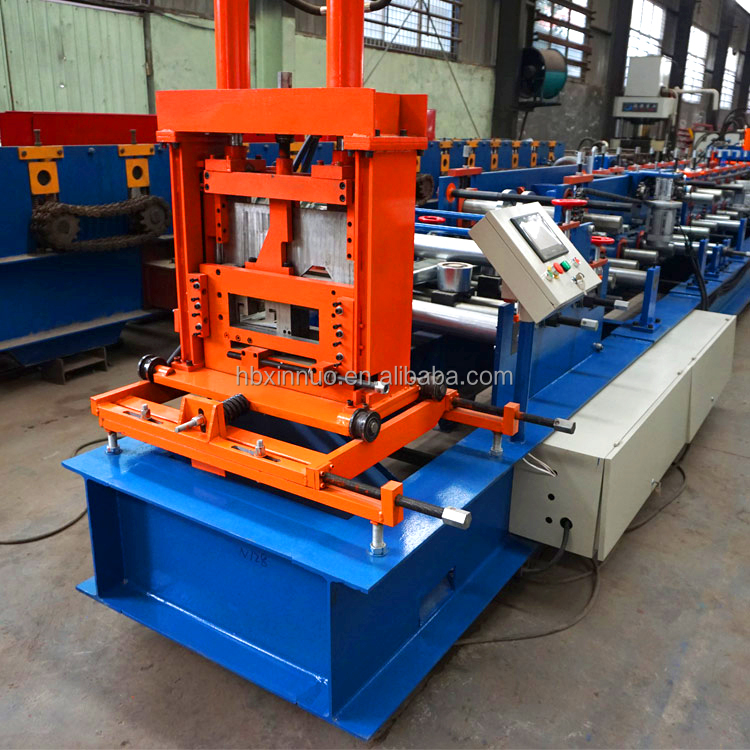

- Main Frame Construction
- 400mm H-Beam

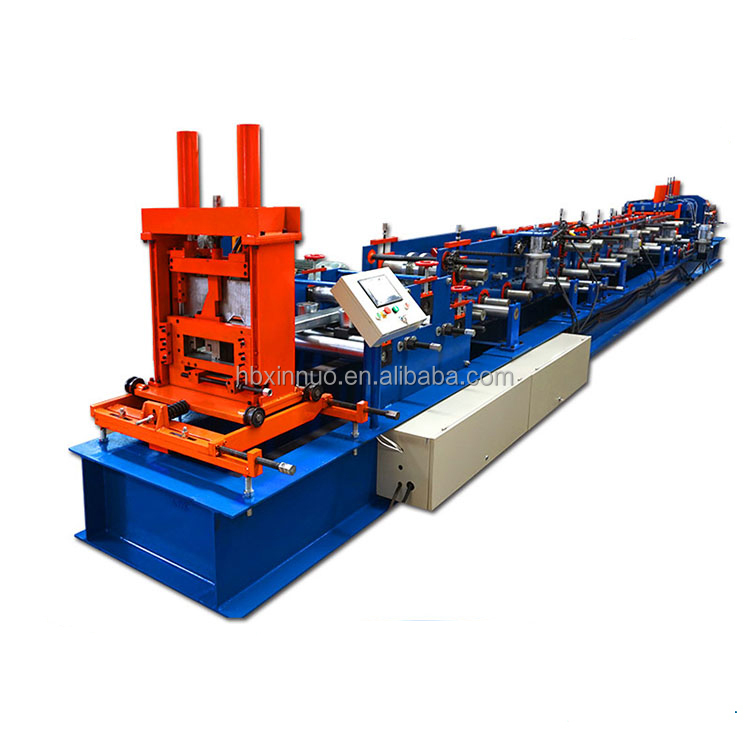

Control System
Interface Languages
EnglishChineseSpanishRussian
- Control Components
- PLCInverterEncoderTouch Screen
Production Capabilities
- Feeding Material Thickness
- 1.5mm - 3.0mm
- Product Size Range
- 80mm - 300mm
- Steel Coil Width
- 600 mm
Component Details

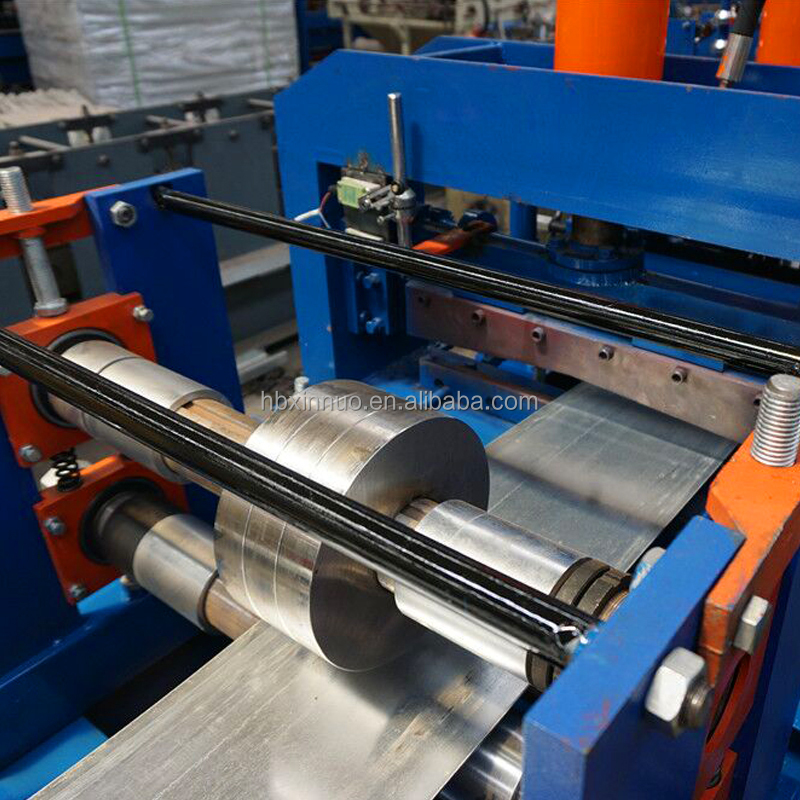

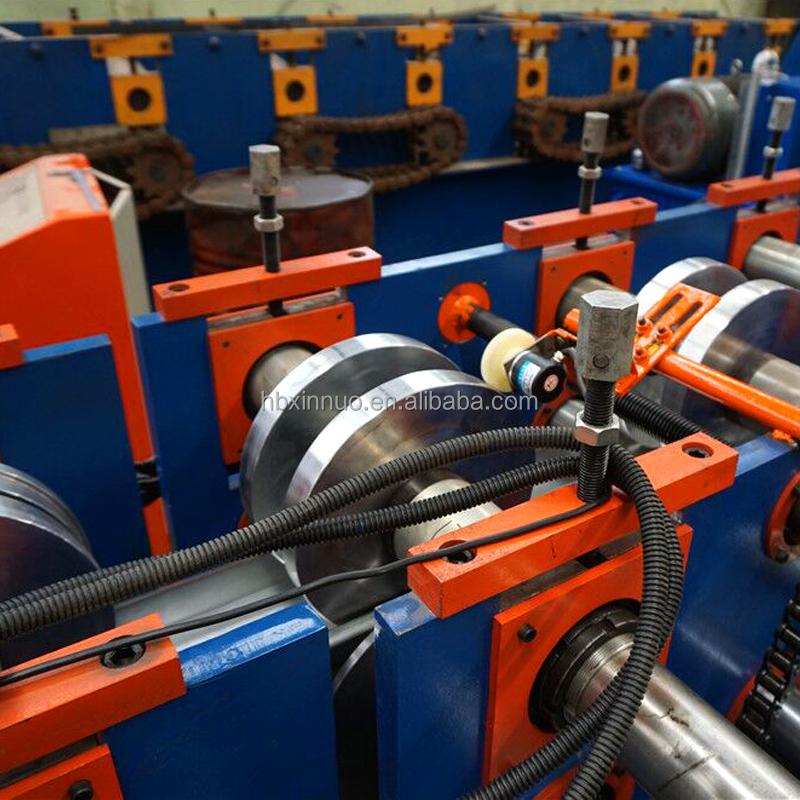

Roller System
| Feature | Specification |
|---|---|
| Roller Material | High grade Gcr15 forged steel |
| Roller Stations | 18 rows |
| Cutting Material | Cr12Mov with quenched treatment |
| Hydraulic Pressure | 12-16 Mpa (adjustable) |
Operational Features
Automation & Operation
- Automatic and Manual operation modes
- Programmable profile length and quantity
- Hydraulic drive for size changes without mold alterations
- Motorized size adjustment (80-300mm range)
