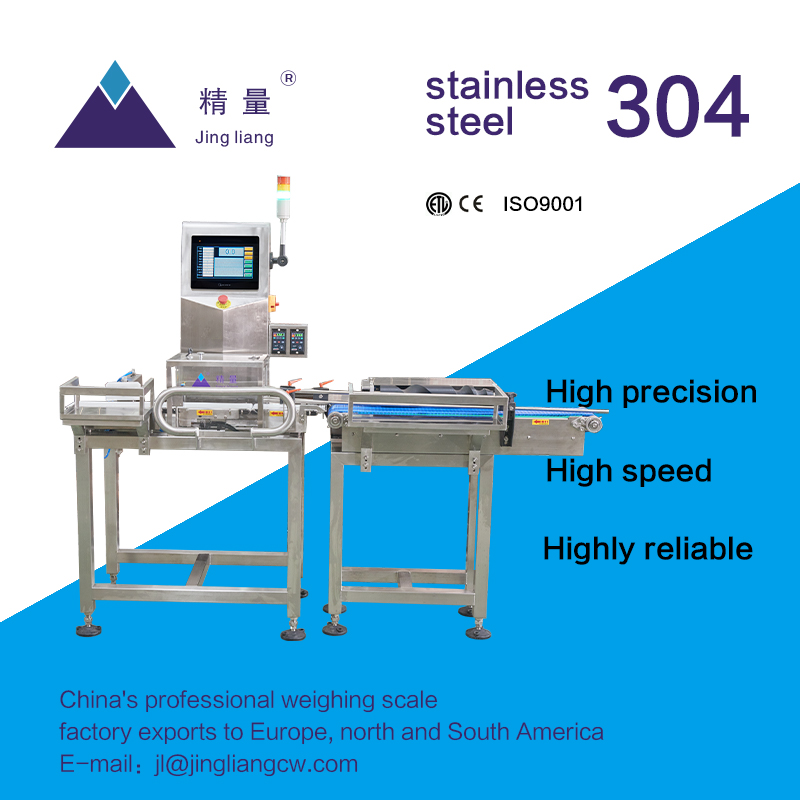

Bottled Product Weighing Scale
This weighing scale is designed for bottled products. It ensures accurate weight measurement at high speeds and is suitable for production line integration.
Technical Specifications
Product Overview
High-Efficiency Weighing Solution
This modular weighing scale is specifically engineered for bottled products to ensure maximum productivity and operational efficiency in industrial environments. Featuring a robust SUS304 stainless steel construction, the unit is built for hygiene and durability while providing high-speed accuracy. The system includes an intuitive 10-inch touch screen with 200 product preset functions, allowing for rapid and simple product changeovers.
Performance Specifications
Key Performance Indicators
1,000 g
Max Capacity
150 pcs/min
Throughput
1 g
Accuracy (3σ)
Technical Details
Technical Data
| Parameter | Value |
|---|---|
| Weighing Range | 3g - 1000g |
| Minimum Scale | 0.1g |
| Touch Screen Size | 10 inches |
| IP Rating | IP-65 |
| Material | SUS304 Stainless Steel |
| Product Preset Slots | 200 |
- Power Requirements
- AC 200V - 240V (Customizable for 110V/380V)
Dimensions and Handling
- Equipment Dimensions
- 2000mm (L) x 750mm (W) x 1360mm (H)
- Weighing Section Belt
- 300mm x 130mm
Compliance and Features
Interface Languages
- Chinese
- English
- Turkish
- Spanish
- Compliance and Standards
- CEISO 9001
