Technical Specifications
Overview
High-Efficiency 3-in-1 Filling Solution

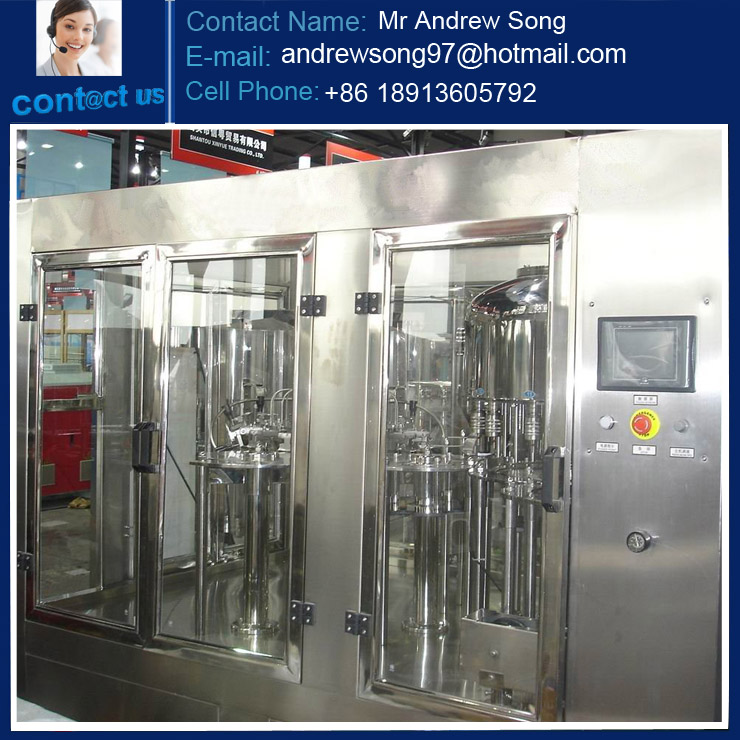

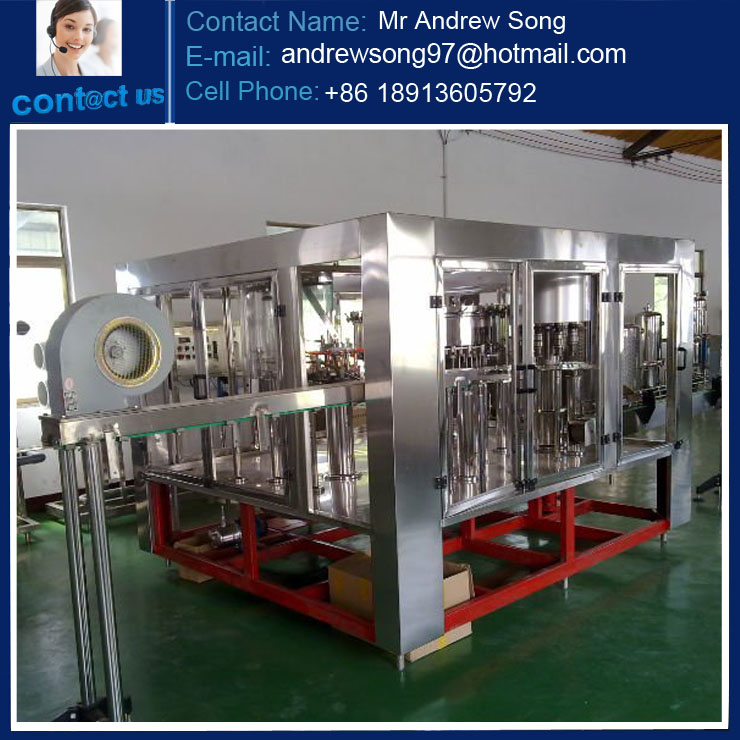

This CGF series automatic monoblock machine integrates bottle washing, filling, and capping into a single, highly efficient unit. Designed for PET and plastic bottles, it utilizes gravity or micro-pressure filling technology to ensure rapid, stable, and precise output. With advanced Mitsubishi PLC control and inverter-driven operation, this system provides reliable automation for mineral and purified water production lines.
Technical Specifications
Performance Metrics
| Model | Capacity (500ml) | Washing Heads | Filling Heads | Capping Heads | Weight | Motor Power |
|---|---|---|---|---|---|---|
| CGF14-12-4 | 4000 BPH | 14 | 12 | 4 | 2500 kg | 2.2 kw |
| CGF16-16-5 | 6000 BPH | 16 | 16 | 5 | 3000 kg | 2.5 kw |
| CGF18-18-6 | 8000 BPH | 18 | 18 | 6 | 4000 kg | 3 kw |
| CGF24-24-8 | 12000 BPH | 24 | 24 | 8 | 4500 kg | 3 kw |
| CGF32-32-10 | 15000 BPH | 32 | 32 | 10 | 6000 kg | 5.5 kw |
Bottle Compatibility
Bottle Dimensions
55 mm
Min Diameter
110 mm
Max Diameter
150 mm
Min Height
310 mm
Max Height
- Compatible Materials
- PET BottlePlastic BottleGlass Bottle
Features
Automation & Control
- Mitsubishi Programmable Logic Controller (PLC)
- Inverter-driven motor control
- Photoelectric sensor monitoring
- Gravity/Micro-pressure filling system
Application
Mineral WaterPurified WaterSoda WaterSpring Water
